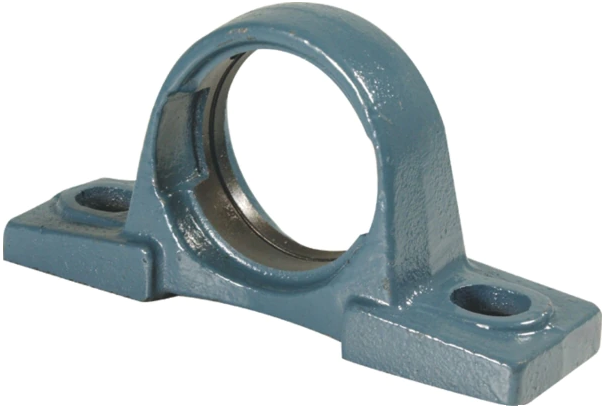

  • Medium Duty Cast Iron Self-Aligning Ball Bearing Pillow Block PX05
  • Medium Duty Cast Iron Self-Aligning Ball Bearing Pillow Block PX05

    • Medium Duty Cast Iron Self-Aligning Ball Bearing Pillow Block PX05

    AMCAN

    $9.64
    (No reviews yet) Write a Review
    SKU:
    AMC PX05
    Weight:
    4.54 LBS
    Housing material:
    Cast iron
    Block type:
    Two bolt pillow
    Classification:
    Medium duty
    Inside dimension:
    62mm (Spherical)
    Shaft height:
    44.4mm
    Bolt spacing:
    119mm
    Overall length:
    159mm
    Overall height:
    85mm
    Bolt hole:
    17mm
    Greasable:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Cast iron bearing blocks coupled with various types of insert bearings are one of the most commonly deployed load bearing systems across many industries and agricultural applications
  • The cast iron blocks are best suited for light to medium duty installations
  • Cast iron blocks are less expensive to deploy than more expensive spherical or taper roller units (see Timken® Blue Brute SRB's and Type-E taper blocks)
  • Cast iron blocks are used for prototyping before investing in more expensive, robust designs
  • These blocks are all equipped with a 360° grease groove that is machined into the bearing cavity where the bearing rides
  • Pillow block grease grooves line up with the grease holes/grease grooves found on all greaseable insert ball bearings regardless the manufacturer; however, the same is not true with regard to cast iron flange blocks

    • Product Videos

    Custom Field

    Housing material Cast iron
    Block type Two bolt pillow
    Classification Medium duty
    Inside dimension 62mm (Spherical)
    Shaft height 44.4mm
    Bolt spacing 119mm
    Overall length 159mm
    Overall height 85mm
    Bolt hole 17mm
    Greasable Yes
