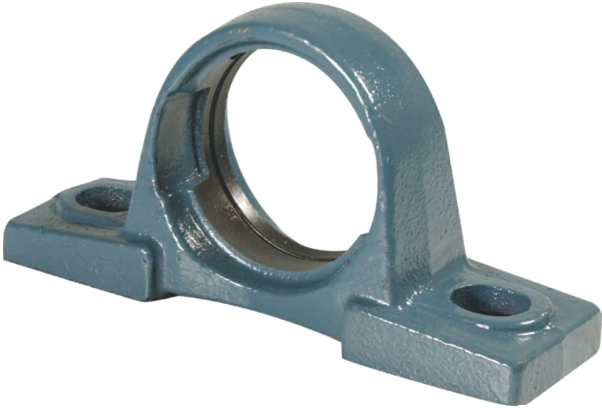

Product Description
- Cast iron bearing blocks coupled with various types of insert bearings are one of the most commonly deployed load bearing systems across many industries and agricultural applications
- The cast iron blocks are best suited for light to medium duty installations
- Cast iron blocks are less expensive to deploy than more expensive spherical or taper roller units (see Timken® Blue Brute SRB's and Type-E taper blocks)
- Cast iron blocks are used for prototyping before investing in more expensive, robust designs
- These blocks are all equipped with a 360° grease groove that is machined into the bearing cavity where the bearing rides
- Pillow block grease grooves line up with the grease holes/grease grooves found on all greaseable insert ball bearings regardless the manufacturer; however, the same is not true with regard to cast iron flange blocks
Product Videos
Custom Field
Housing material Cast iron
Block type Two bolt pillow
Classification Medium duty
Inside dimension 150mm (Spherical)
Shaft height 101.6mm
Bolt spacing 283mm
Overall length 381mm
Overall height 194mm
Bolt hole 27mm
Greasable Yes
