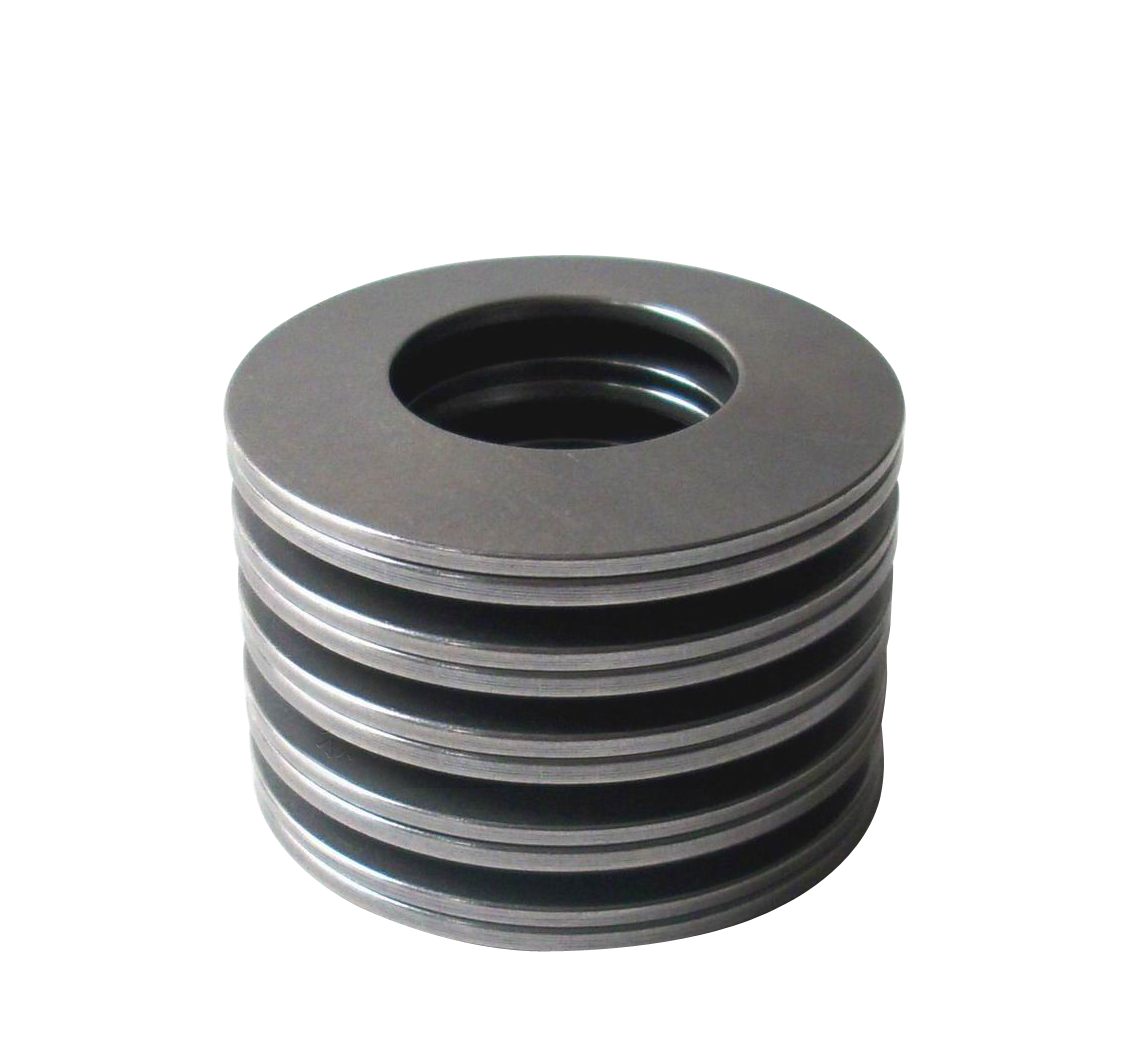

27mm Belleville (DIN6796) Conical Washer DS6796-27mm

27mm Belleville (DIN6796) Conical Washer DS6796-27mm

DMR

$0.00

(No reviews yet) Write a Review

SKU:: DAE DS6796-27mm
Weight:: 0.00 LBS
Size range:: 2.00 ~ 30mm
Bolt diameter:: 27mm
Outer diameter (OD):: 59.94mm (2.360 in.)
Inner diameter (ID):: 27.94mm (1.100 in.)
Thickness (t):: 6.60mm (0.260 in.)
Overall height (h):: 8.36mm (0.329 in.)

Overview
Reviews

Product Description

Heavy duty Belleville (DIN6796) Conical Washers, are manufactured with 50CrV4 and Ck67 graded steel material

Standard corrosion protection is black phosphating and oiling (other coatings are available)

Belleville washers are designed to preload bolts only and are NOT INTENDED for applications with dynamic loads; please use Disc Spring Washers instead when dynamic loads are required

DMR Disc Spring & Belleville Washers

Product Videos

Custom Field

Size range 2.00 ~ 30mm

Bolt diameter 27mm

Outer diameter (OD) 59.94mm (2.360 in.)

Inner diameter (ID) 27.94mm (1.100 in.)

Thickness (t) 6.60mm (0.260 in.)

Overall height (h) 8.36mm (0.329 in.)
