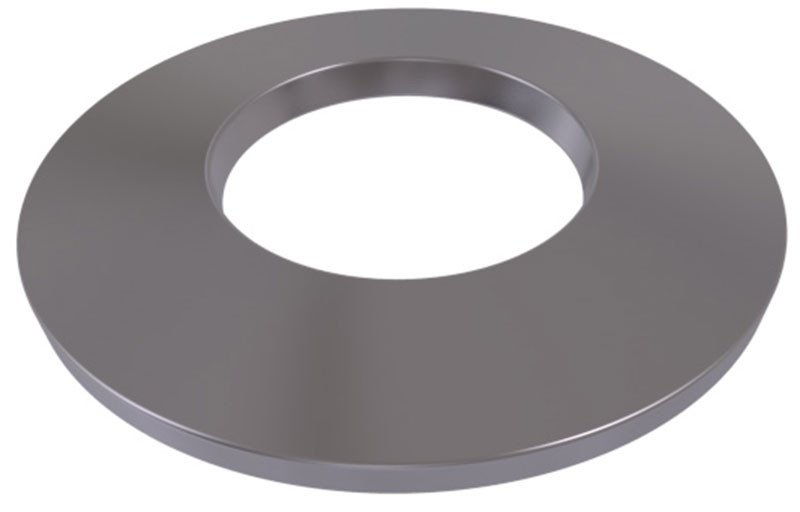

12mm Belleville (DIN6796) Conical Washer DS6796-12mm

12mm Belleville (DIN6796) Conical Washer DS6796-12mm

DMR

$0.00

(No reviews yet) Write a Review

SKU:: DAE DS6796-12mm
Weight:: 0.00 LBS
Size range:: 2.00 ~ 30mm
Bolt diameter:: 12mm
Outer diameter (OD):: 28.96mm (1.140 in.)
Inner diameter (ID):: 12.95mm (0.510 in.)
Thickness (t):: 3.05mm (0.120 in.)
Overall height (h):: 3.96mm (0.156 in.)

Overview
Reviews

Product Description

Heavy duty Belleville (DIN6796) Conical Washers, are manufactured with 50CrV4 and Ck67 graded steel material

Standard corrosion protection is black phosphating and oiling (other coatings are available)

Belleville washers are designed to preload bolts only and are NOT INTENDED for applications with dynamic loads; please use Disc Spring Washers instead when dynamic loads are required

DMR Disc Spring & Belleville Washers

Product Videos

Custom Field

Size range 2.00 ~ 30mm

Bolt diameter 12mm

Outer diameter (OD) 28.96mm (1.140 in.)

Inner diameter (ID) 12.95mm (0.510 in.)

Thickness (t) 3.05mm (0.120 in.)

Overall height (h) 3.96mm (0.156 in.)
