    Westward Parts

    $0.00
    (No reviews yet) Write a Review
    SKU:
    WWP PTO14006127ST
    Weight:
    12.00 LBS
    Weasler part #:
    14006127ST
    Westward part #:
    PTO14006127ST
    Collapsed length:
    27.00"
    Extended length:
    30.00"
    Bore size 1:
    1-3/8"-6 spline
    Bore size 2:
    1-3/8"-6 spline
    Connection 1:
    Spring-Lok
    Connection 2:
    Spring-Lok
    Bearing cup diameter:
    0.866"
    Bearing span:
    2.122"
    HP @ 540 RPM:
    15
    HP @ 1000 RPM:
    23
    Outer diameter:
    6"
    Driveline series:
    Italian
    Type:

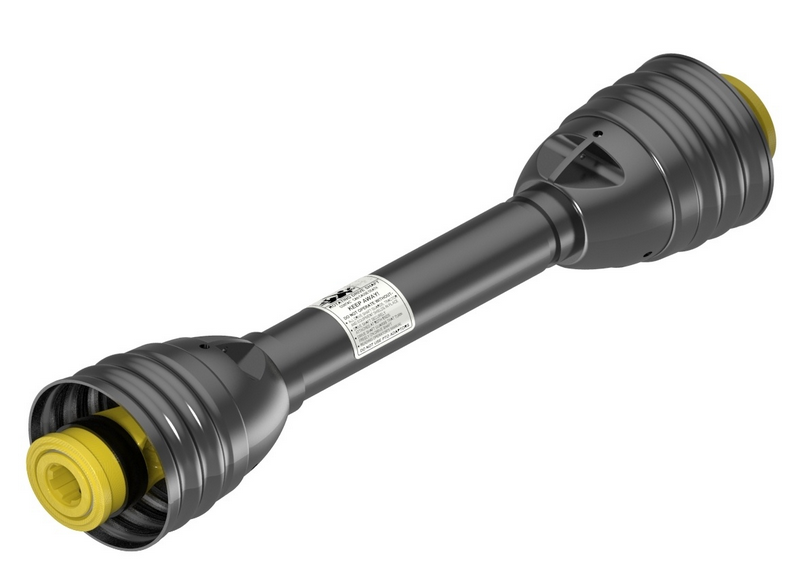

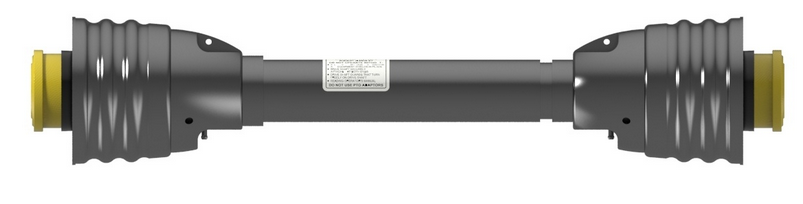

    Drive shaft assembly
    Series:
    Bondioli® 1
    Caveat:
    Special order, not returnable

    Product Description

    The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries. They are designed for continuous heavy-duty use and meet the requirements of large farms and contractors. Weasler PTO driveshafts and CV wide angle PTO drive shafts are interchangeable with standard PTO driveshafts available in the market.

    PERFORMANCE BENEFITS

  • Design adjustability (cut-to-length) capabilities.
  • Interchangeability to fit with most competitor models.
  • Spline and square shaft profiles available.
  • Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
  • Available extended lubrication E-kits reduce downtime with lubrication intervals of 50-250 hours and the high temperature triple lip seal retains grease better.

    DESIGN FEATURES

  • Easy Lock Guard System: Provides full coverage at maximum angles, full 360° friction weld on guard bell, black coloring that is durable against ultraviolet light and ozone, cold weather impact rated to -35°C, meets and exceeds all applicable safety standards,
  • Quick and easy process for removal and installation.
  • Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, cast iron collars, through-bore keeps debris from collecting inside.
  • Cross & Bearing Kits: High torque capacity and longer life, manufactured with high quality steel for increased strength, standard kits can be upgraded to or interchanged with E-Kits.
  • Same component designs used for Weasler’s domestic and metric product lines.

  • Please follow this link to access the very helpful and handy Weasler instructional video library.

    If you are within a reasonable driving distance of any of the three WWP locations located in Winnipeg, Regina, or Red Deere, you may arrange to pick up your parts there directly and avoid delivery charges. If you prefer to use this option, please select "in store pickup" when checking out and no freight fees will be added to your invoice total. Please note Westward Parts requires processing time to pick your order, allow 2-3 hours minimum for standard service. Emergency service is available, but rush fees will apply.

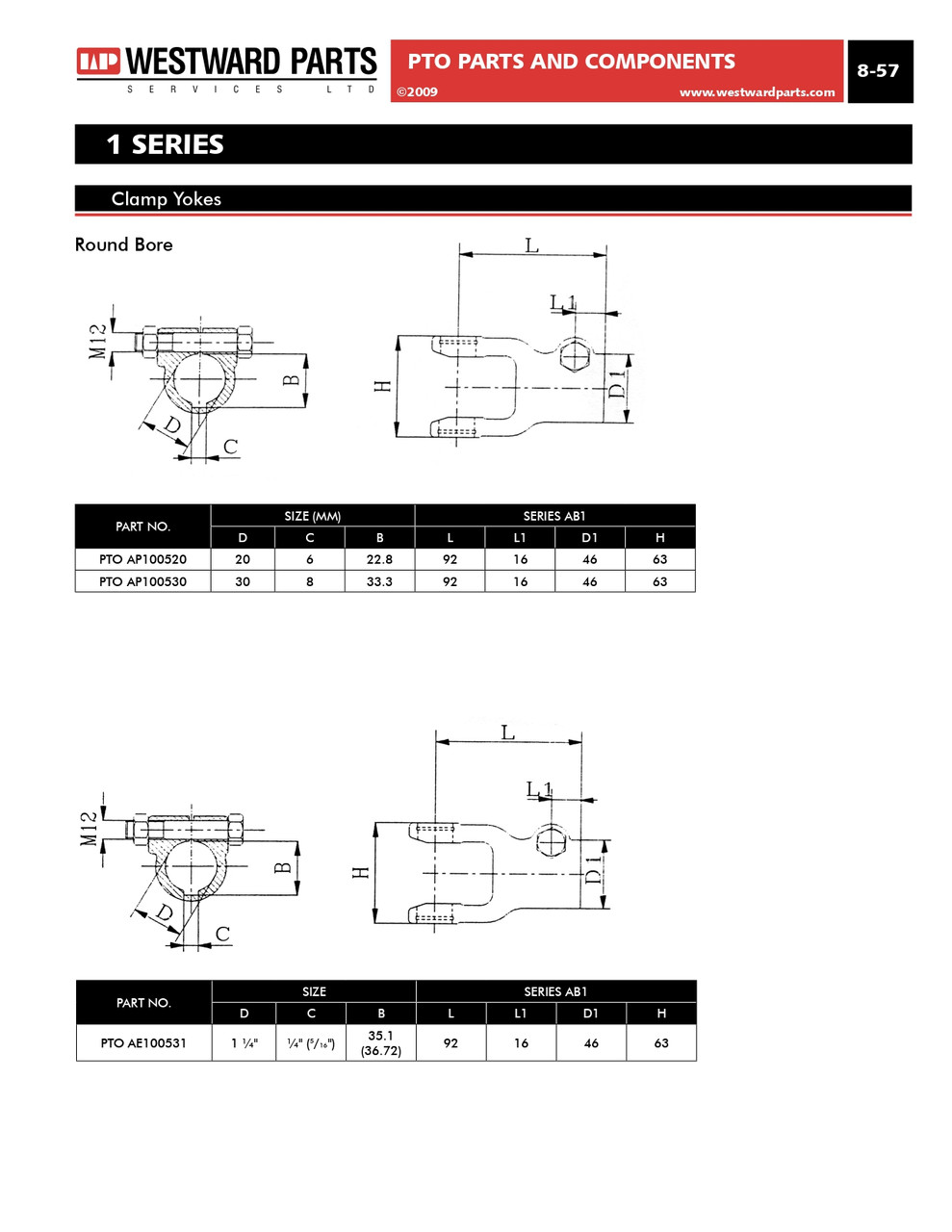

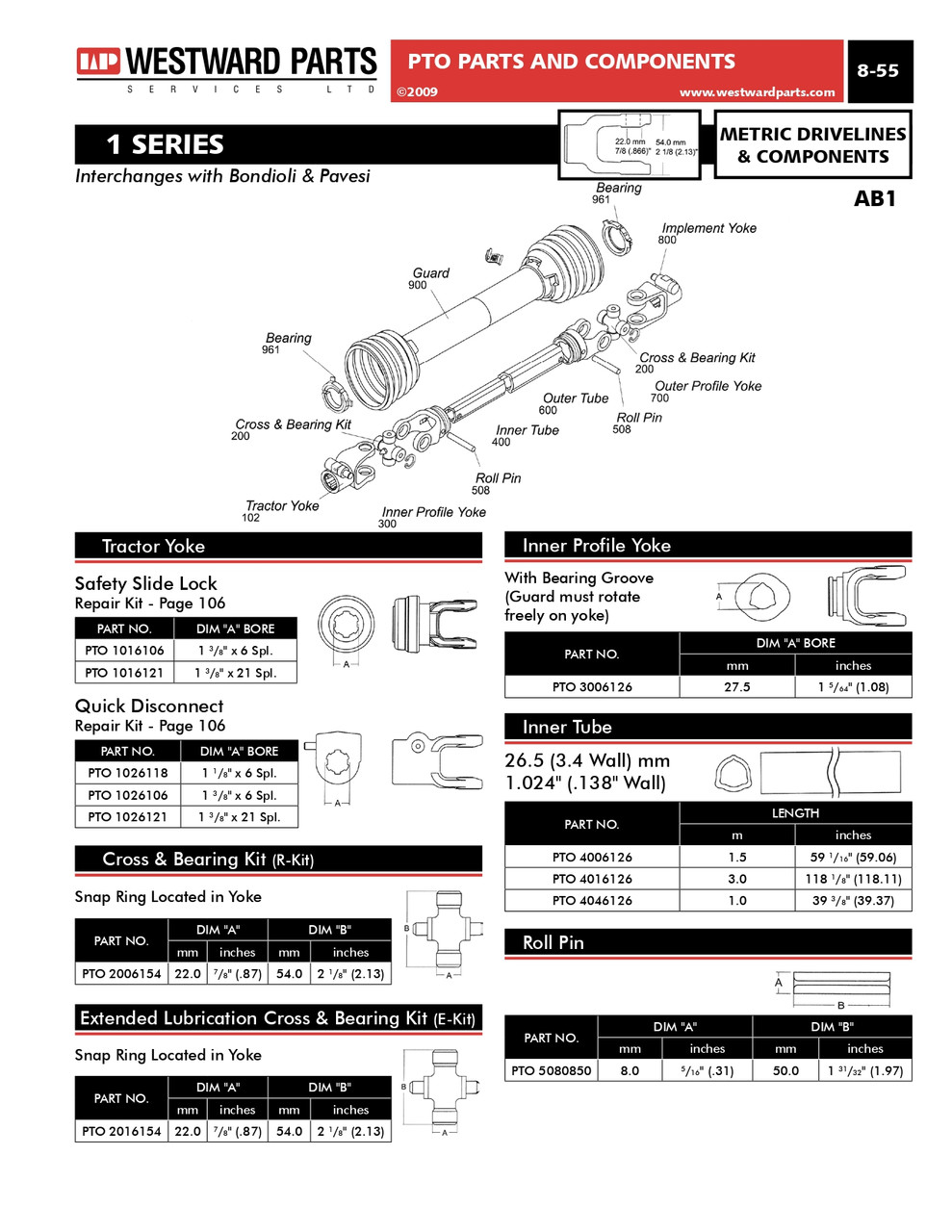

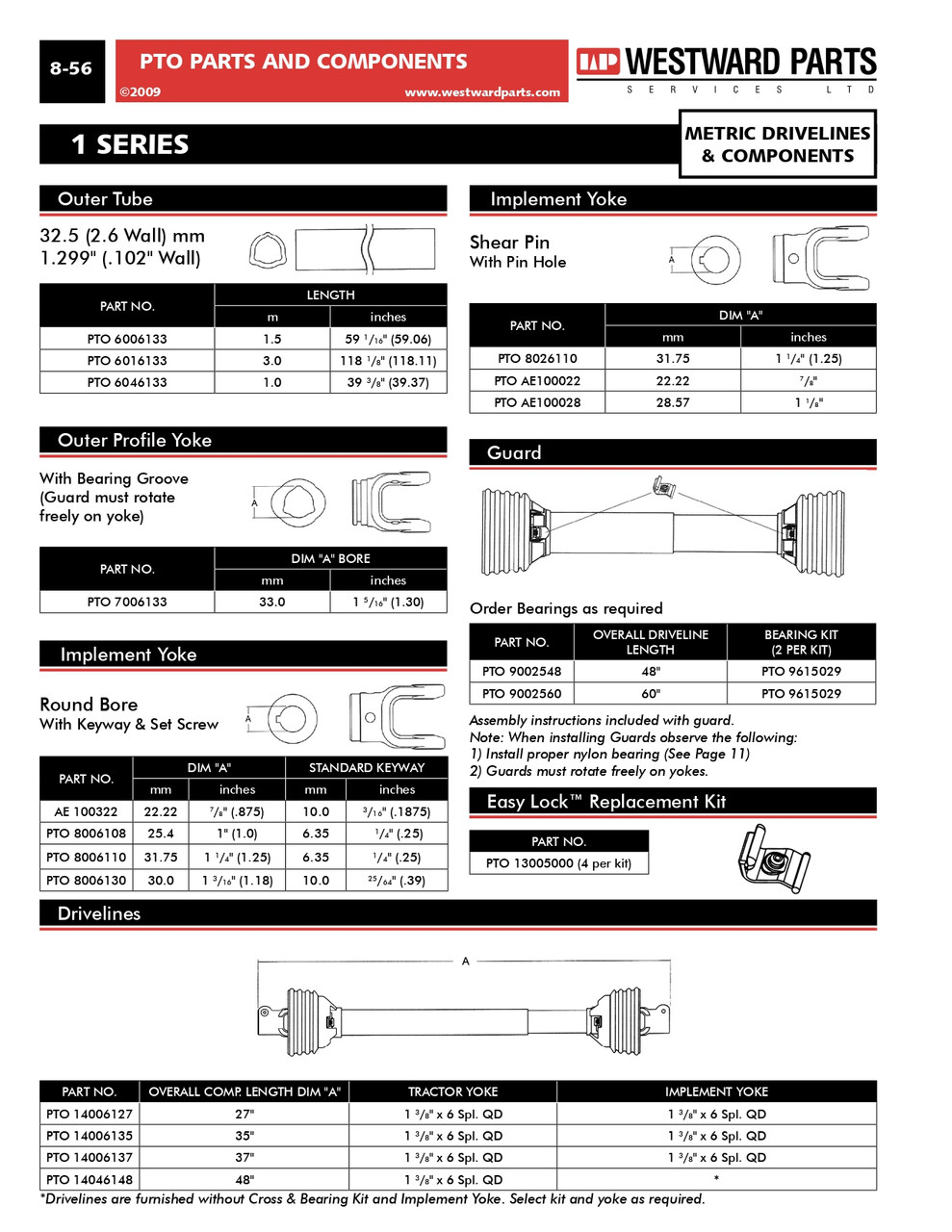

    adobepdficon.png Weasler Aftermarket PTO Catalog




    adobepdficon.png WWP PTO Catalog




    adobepdficon.png WWP Estate Equipment



    • Product Videos

    Custom Field

    Weasler part # 14006127ST
    Westward part # PTO14006127ST
    Collapsed length 27.00"
    Extended length 30.00"
    Bore size 1 1-3/8"-6 spline
    Bore size 2 1-3/8"-6 spline
    Connection 1 Spring-Lok
    Connection 2 Spring-Lok
    Bearing cup diameter 0.866"
    Bearing span 2.122"
    HP @ 540 RPM 15
    HP @ 1000 RPM 23
    Outer diameter 6"
    Driveline series Italian
    Type Drive shaft assembly
    Series Bondioli® 1
    Caveat Special order, not returnable
