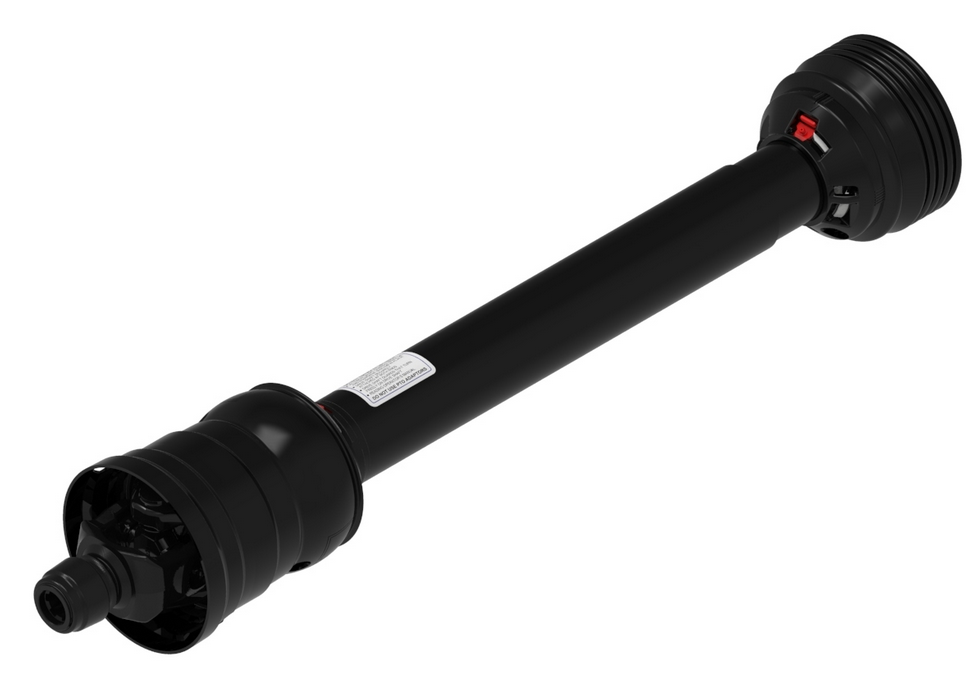

  • 1-3/8"-21 Spline 80° CV Auto-Lok QD Yoke - User Supplied Implement Yoke - Three Yoke Driveline Assembly - Category 3-80 PTO14653848
  • 1-3/8"-21 Spline 80° CV Auto-Lok QD Yoke - User Supplied Implement Yoke - Three Yoke Driveline Assembly - Category 3-80 PTO14653848
  • 1-3/8"-21 Spline 80° CV Auto-Lok QD Yoke - User Supplied Implement Yoke - Three Yoke Driveline Assembly - Category 3-80 PTO14653848
  • 1-3/8"-21 Spline 80° CV Auto-Lok QD Yoke - User Supplied Implement Yoke - Three Yoke Driveline Assembly - Category 3-80 PTO14653848

    • 1-3/8"-21 Spline 80° CV Auto-Lok QD Yoke - User Supplied Implement Yoke - Three Yoke Driveline Assembly - Category 3-80 PTO14653848

    Westward Parts

    $1,916.43
    (No reviews yet) Write a Review
    SKU:
    WWP PTO14653848
    Weight:
    37.00 LBS
    Weasler part #:
    14653848
    Westward part #:
    PTO14653848
    Collapsed length:
    39.13"
    Extended length:
    58.13"
    Bore size:
    1-3/8"-21 spline
    Connection 1:
    Auto-Lok
    Connection 2:
    Yoke arms
    Bearing cup diameter:
    1.063"
    Bearing span:
    3.216"
    HP @ 540 RPM:
    31
    HP @ 1000 RPM:
    54
    Outer diameter:
    6.75"
    Driveline series:
    North American
    Type:
    80° CV wide angle PTO drive shaft
    Series:
    Category 3-80 (similar to 14 series)
    Caveat:
    Special order, not returnable
    Adding to cart… category.add_cart_announcement

    Product Description

  • PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline.
  • Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly.
  • All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265.
  • Agricultural CV wide angle tractor yokes are offered in 1-3/8"-6 spline (type 1), 1-3/8"-21 spline (type 2), and 1-3/4"-20 spline (type 3) options to fit the specific tractor connection needed.

  • Please follow this link to access the very helpful and handy Weasler instructional video library.

    If you are within a reasonable driving distance of any of the three WWP locations located in Winnipeg, Regina, or Red Deere, you may arrange to pick up your parts there directly and avoid delivery charges. If you prefer to use this option, please select "in store pickup" when checking out and no freight fees will be added to your invoice total. Please note Westward Parts requires processing time to pick your order, allow 2-3 hours minimum for standard service. Emergency service is available, but rush fees will apply.

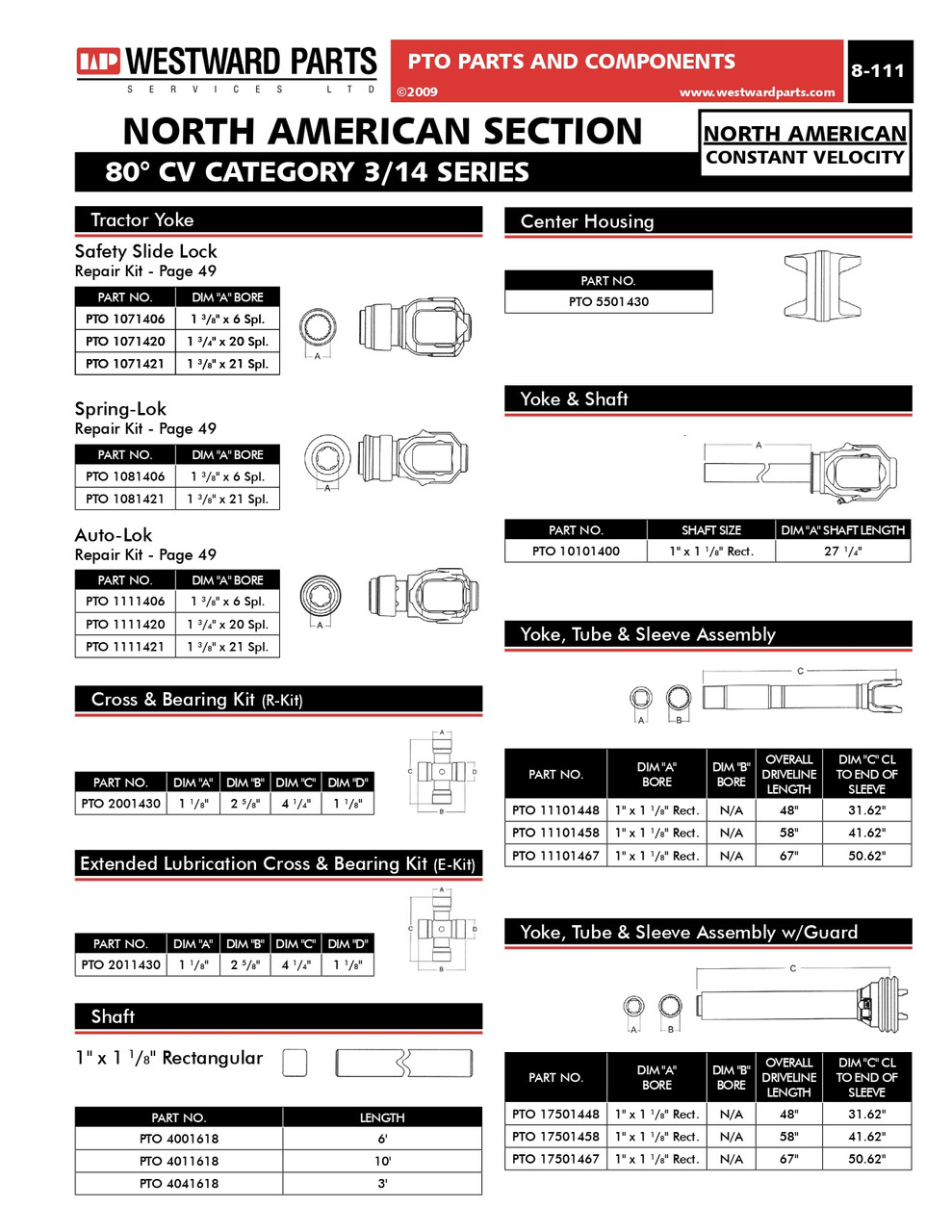

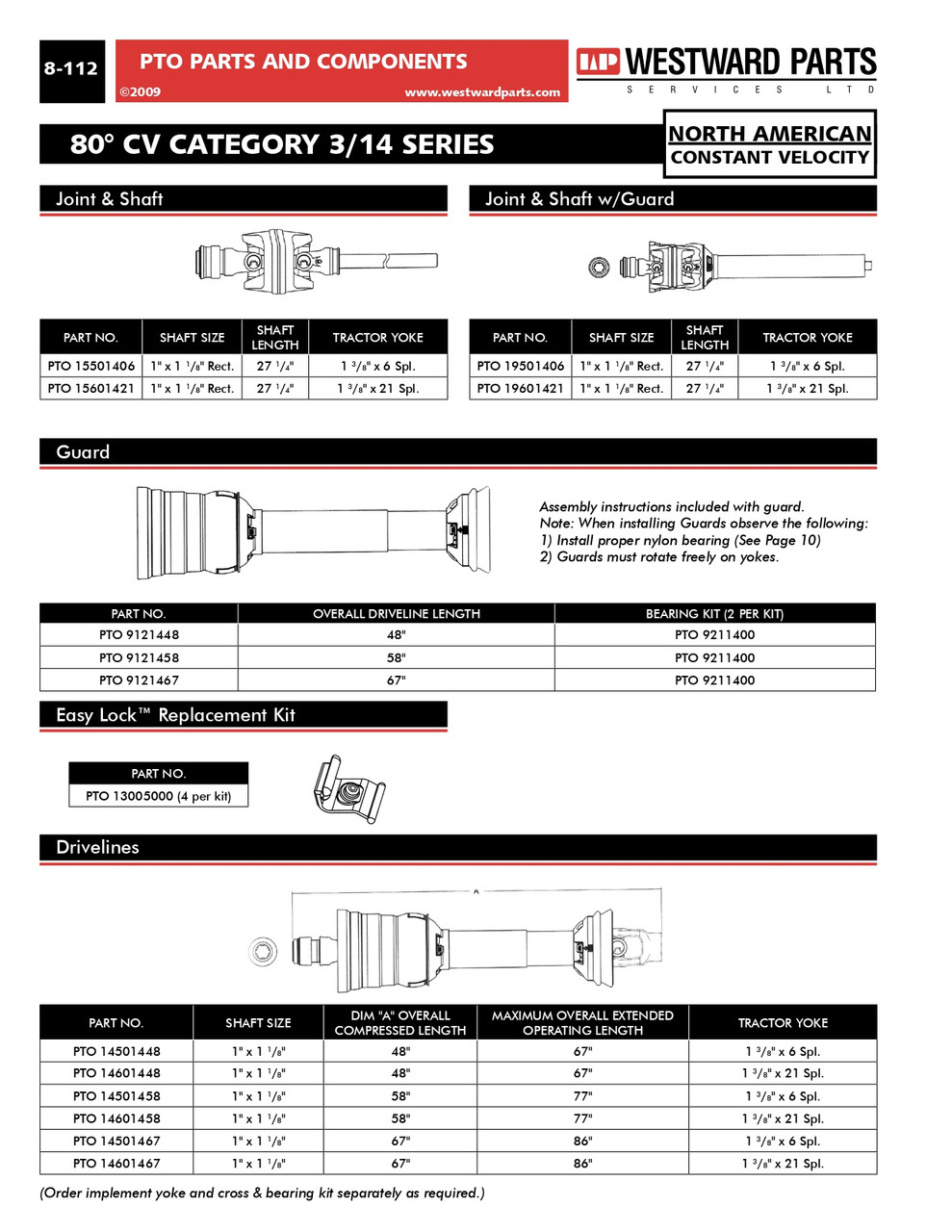

    adobepdficon.png Weasler Aftermarket PTO Catalog




    adobepdficon.png WWP PTO Catalog




    adobepdficon.png WWP Estate Equipment



    • Product Videos

    Custom Field

    Weasler part # 14653848
    Westward part # PTO14653848
    Collapsed length 39.13"
    Extended length 58.13"
    Bore size 1-3/8"-21 spline
    Connection 1 Auto-Lok
    Connection 2 Yoke arms
    Bearing cup diameter 1.063"
    Bearing span 3.216"
    HP @ 540 RPM 31
    HP @ 1000 RPM 54
    Outer diameter 6.75"
    Driveline series North American
    Type 80° CV wide angle PTO drive shaft
    Series Category 3-80 (similar to 14 series)
    Caveat Special order, not returnable
