  • Super Power Wedge® 16 Rib Banded V-Belt R3V850-16
  • Super Power Wedge® 16 Rib Banded V-Belt R3V850-16
  • Super Power Wedge® 16 Rib Banded V-Belt R3V850-16
  • Super Power Wedge® 16 Rib Banded V-Belt R3V850-16
  • Super Power Wedge® 16 Rib Banded V-Belt R3V850-16

    • Super Power Wedge® 16 Rib Banded V-Belt R3V850-16

    Timken

    $1,100.82
    (No reviews yet) Write a Review
    SKU:
    TIM R3V850-16
    UPC:
    UPC 070964487216
    Weight:
    0.00 LBS
    Cross section:
    3V
    Ribs:
    16
    Cord material:
    Polyester
    HTS Code:
    3926.90.9990
    Adding to cart… category.add_cart_announcement

    Product Description

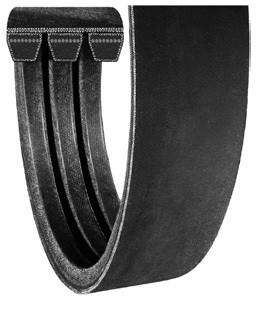

  • Super Power-Wedge® band (formerly Wedge-Band®) is the banded version of the hard-working Super Power-Wedge® v-belt.
  • The specially compounded wrapped construction is ideal for clutching operations.
  • Super Power-Wedge® band is oil and heat resistant, static dissipating, and reduces the ability for a belt to turn over or jump off the drive.
  • Two or more Super Power-Wedge® belts are permanently joined together at the top with a reinforced tie-band.
  • Banded belts are ideally suited for pulsating or heavily shock loaded drives and drives with long center distances to minimize belt whip and rollover.
  • Super Power-Wedge® band belts combine the long life and superior performance of the Super Power-Wedge® v-belt with the stability of a banded belt.
  • The narrow wedge design saves space and reduces weight.
  • Banded belts assure that each rib is sharing the load equally to achieve the full horsepower capacity of the drive.
  • The reinforced band across the top greatly enhances stability by minimizing belt whip and turnover.
  • Smooth clutching
  • Space and weight saver
  • Oversized polyester cord provides added belt strength and stability
  • Cord is chemically treated for resistance to belt stretch
  • Tie-band is highly engineered to permanently bond multiple belts together enabling the belts to function as a single unit with even load distribution and wear
  • Vibration is dampened
  • Heavy shock loads are absorbed
  • For complete part number, add a hyphen followed by the number of ribs required, for example: R5V670-3

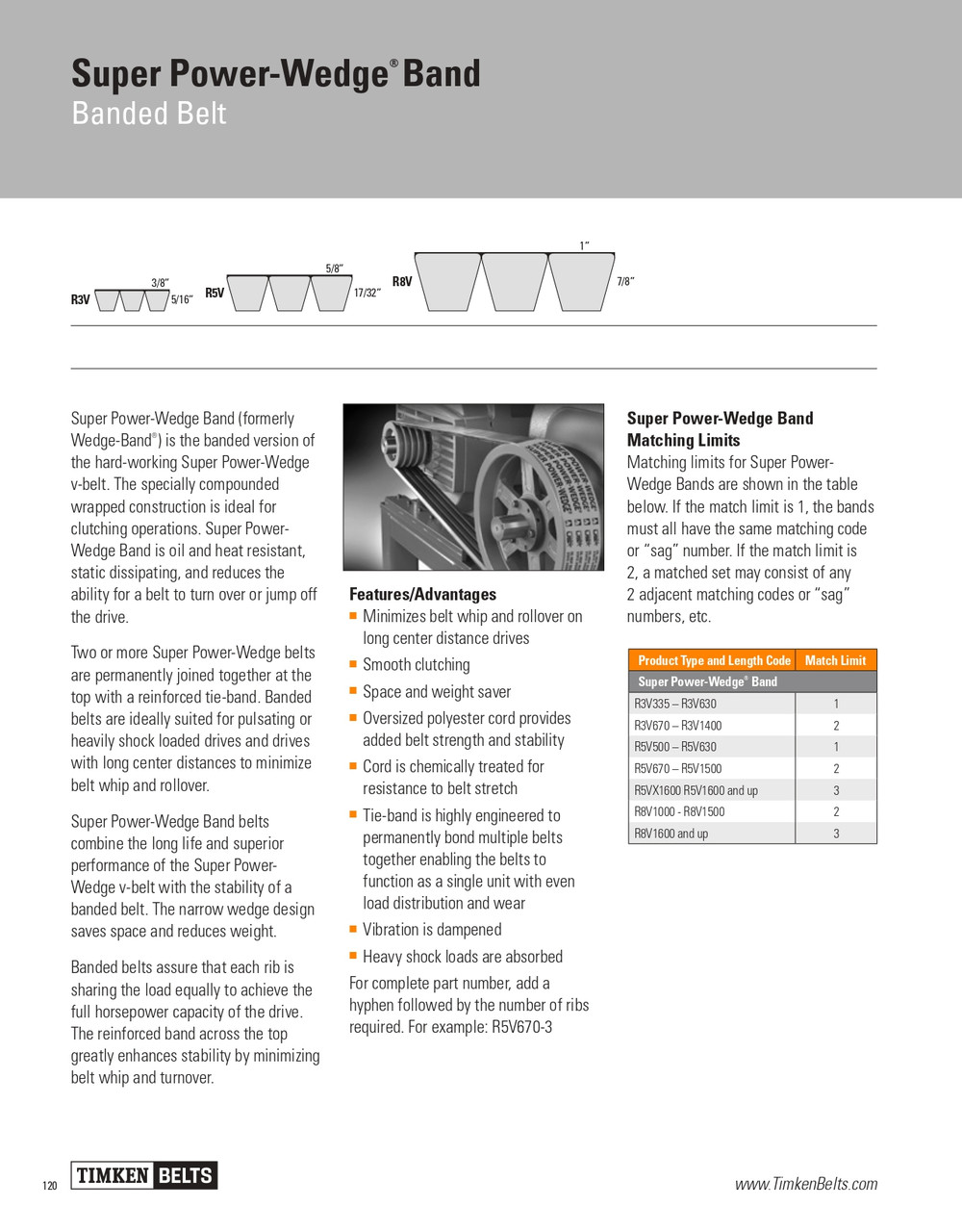

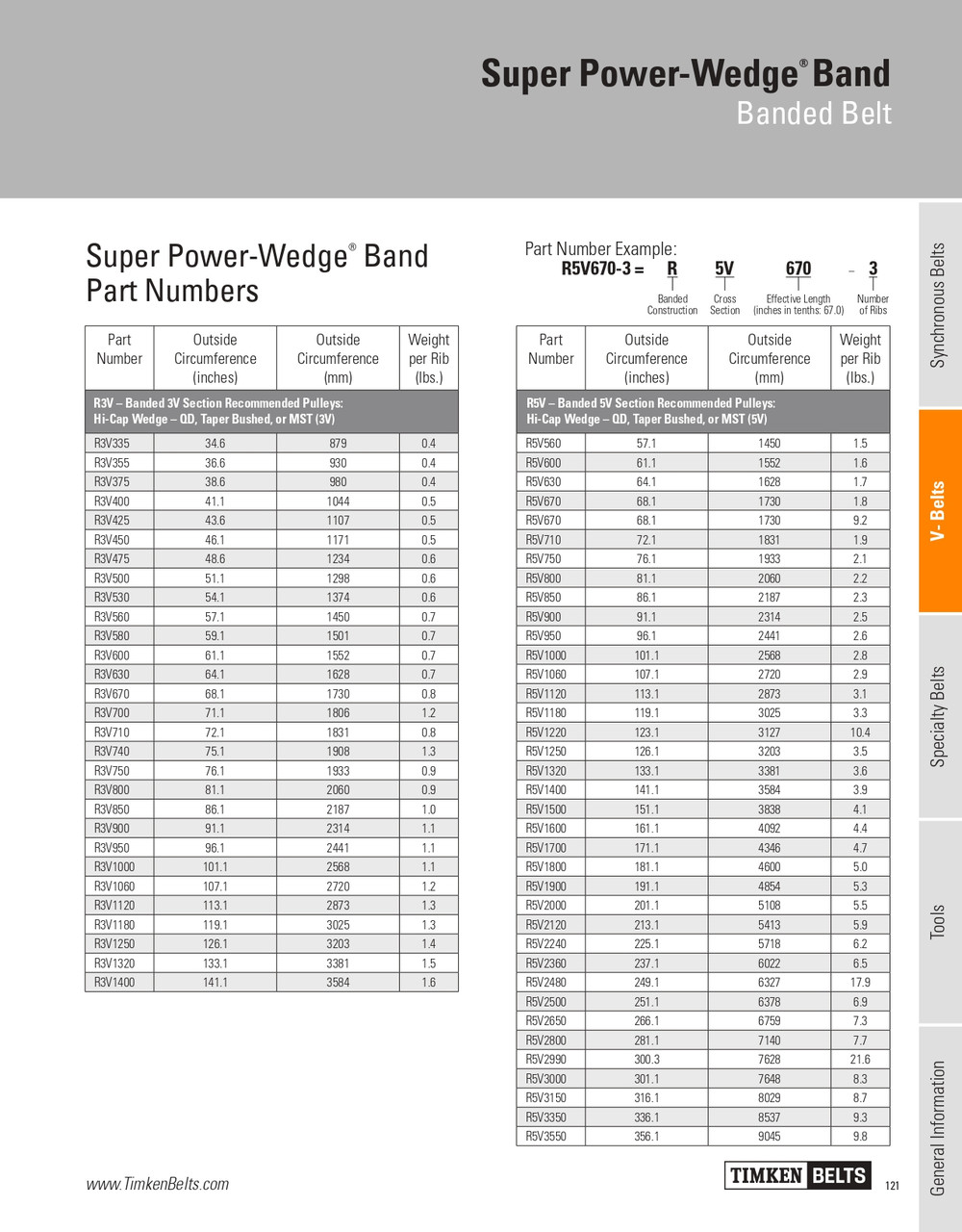

    adobepdficon.png Timken Belts Catalog

    Please use this link to use the Timken belt interchange/cross-reference TIMKEN BELTS INTERCHANGE

    • Product Videos

    Custom Field

    Cross section 3V
    Ribs 16
    Cord material Polyester
    HTS Code 3926.90.9990
