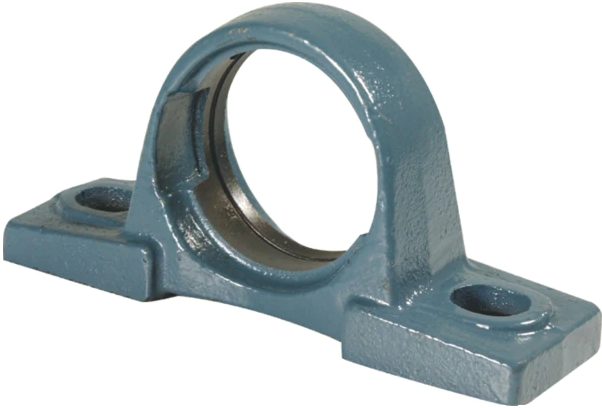

  • Standard Duty Cast Iron Self-Aligning Ball Bearing Pillow Block P211
  • Standard Duty Cast Iron Self-Aligning Ball Bearing Pillow Block P211

    • Standard Duty Cast Iron Self-Aligning Ball Bearing Pillow Block P211

    AMCAN

    $20.47
    (No reviews yet) Write a Review
    SKU:
    AMC P211
    Weight:
    5.31 LBS
    Width:
    8.62 (in)
    Height:
    8.62 (in)
    Depth:
    4.96 (in)
    Housing material:
    Cast iron
    Block type:
    Two bolt pillow
    Classification:
    Standard duty
    Inside dimension:
    100mm (Spherical)
    Shaft height:
    63.5mm
    Bolt spacing:
    172mm
    Overall length:
    219mm
    Overall height:
    124.5mm
    Bolt hole:
    20mm
    Greasable:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Cast iron bearing blocks coupled with various types of insert bearings are one of the most commonly deployed load bearing systems across many industries and agricultural applications
  • The cast iron blocks are best suited for light to medium duty installations
  • Cast iron blocks are less expensive to deploy than more expensive spherical or taper roller units (see Timken® Blue Brute SRB's and Type-E taper blocks)
  • Cast iron blocks are used for prototyping before investing in more expensive, robust designs
  • These blocks are all greasable with a machined grease groove milled 360° into the inner race where the bearing rides
  • Pillow block grease grooves line up with the grease holes found on all greaseable insert ball bearings regardless the manufacturer; however, the same is not true with regard to cast iron flange blocks

    • Product Videos

    Custom Field

    Housing material Cast iron
    Block type Two bolt pillow
    Classification Standard duty
    Inside dimension 100mm (Spherical)
    Shaft height 63.5mm
    Bolt spacing 172mm
    Overall length 219mm
    Overall height 124.5mm
    Bolt hole 20mm
    Greasable Yes
