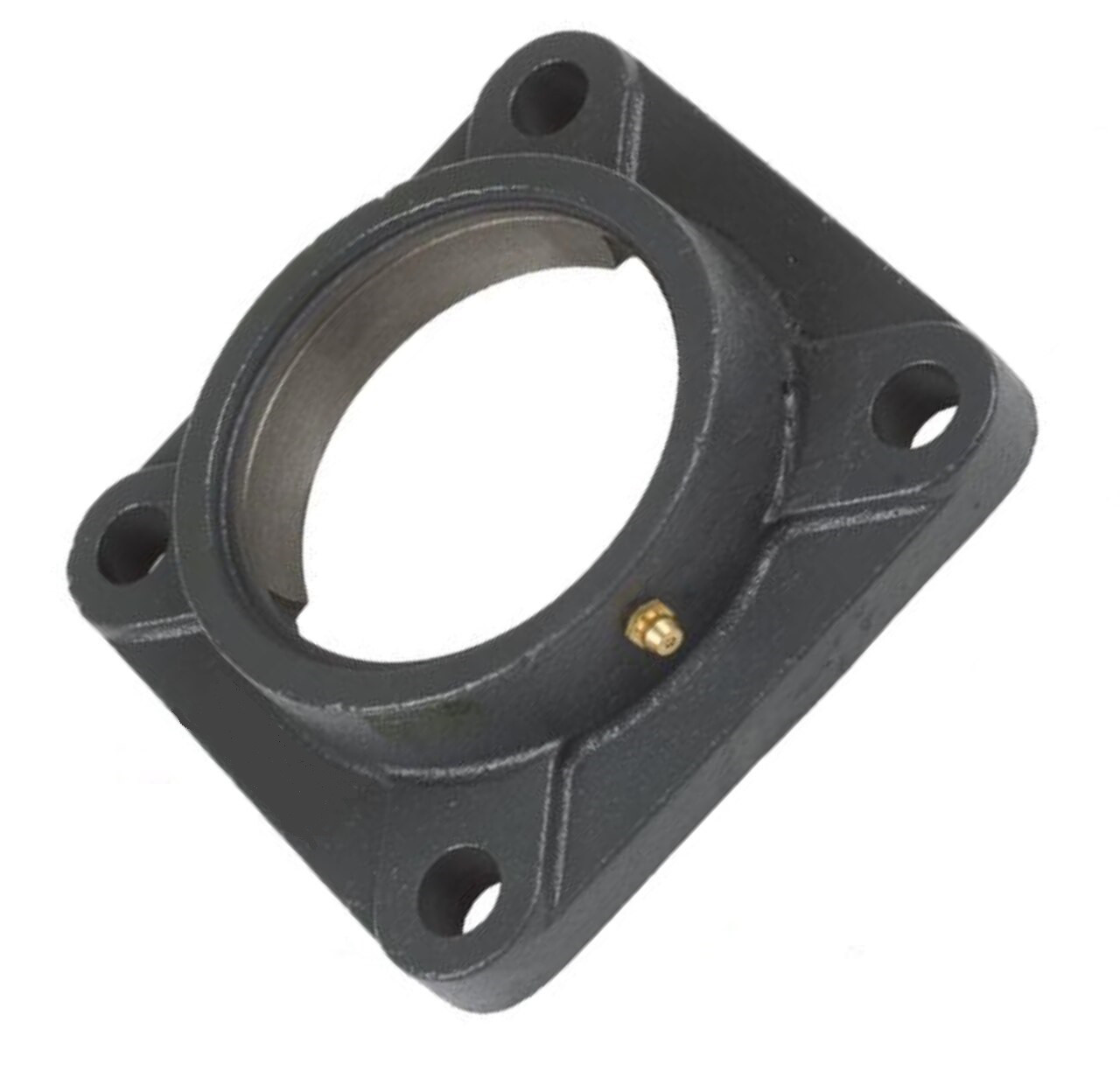

  • Standard Duty Cast Iron Self-Aligning Ball Bearing 4-Bolt Flange Block F217
  • Standard Duty Cast Iron Self-Aligning Ball Bearing 4-Bolt Flange Block F217

    • Standard Duty Cast Iron Self-Aligning Ball Bearing 4-Bolt Flange Block F217

    AMCAN

    $69.78
    (No reviews yet) Write a Review
    SKU:
    AMC F217
    Weight:
    13.03 LBS
    Housing material:
    Cast iron
    Block type:
    Four bolt flange
    Classification:
    Standard duty
    Inside dimension:
    150mm (Spherical)
    Bolt spacing:
    175mm
    Overall length:
    220mm
    Overall height:
    63mm
    Bolt hole:
    23mm
    Greasable:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Cast iron bearing blocks coupled with various types of insert bearings are one of the most commonly deployed load bearing systems across many industries and agricultural applications
  • The cast iron blocks are best suited for light to medium duty installations
  • Cast iron blocks are less expensive to deploy than more expensive spherical or taper roller units (see Timken® Blue Brute SRB's and Type-E taper blocks)
  • Cast iron blocks are used for prototyping before investing in more expensive, robust designs
  • These blocks are all equipped with a 360° grease groove that is machined into the bearing cavity where the bearing rides
  • Pillow block grease grooves line up with the grease holes/grease grooves found on all greaseable insert ball bearings regardless the manufacturer; however, the same is not true with regard to cast iron flange blocks

    • Product Videos

    Custom Field

    Housing material Cast iron
    Block type Four bolt flange
    Classification Standard duty
    Inside dimension 150mm (Spherical)
    Bolt spacing 175mm
    Overall length 220mm
    Overall height 63mm
    Bolt hole 23mm
    Greasable Yes
