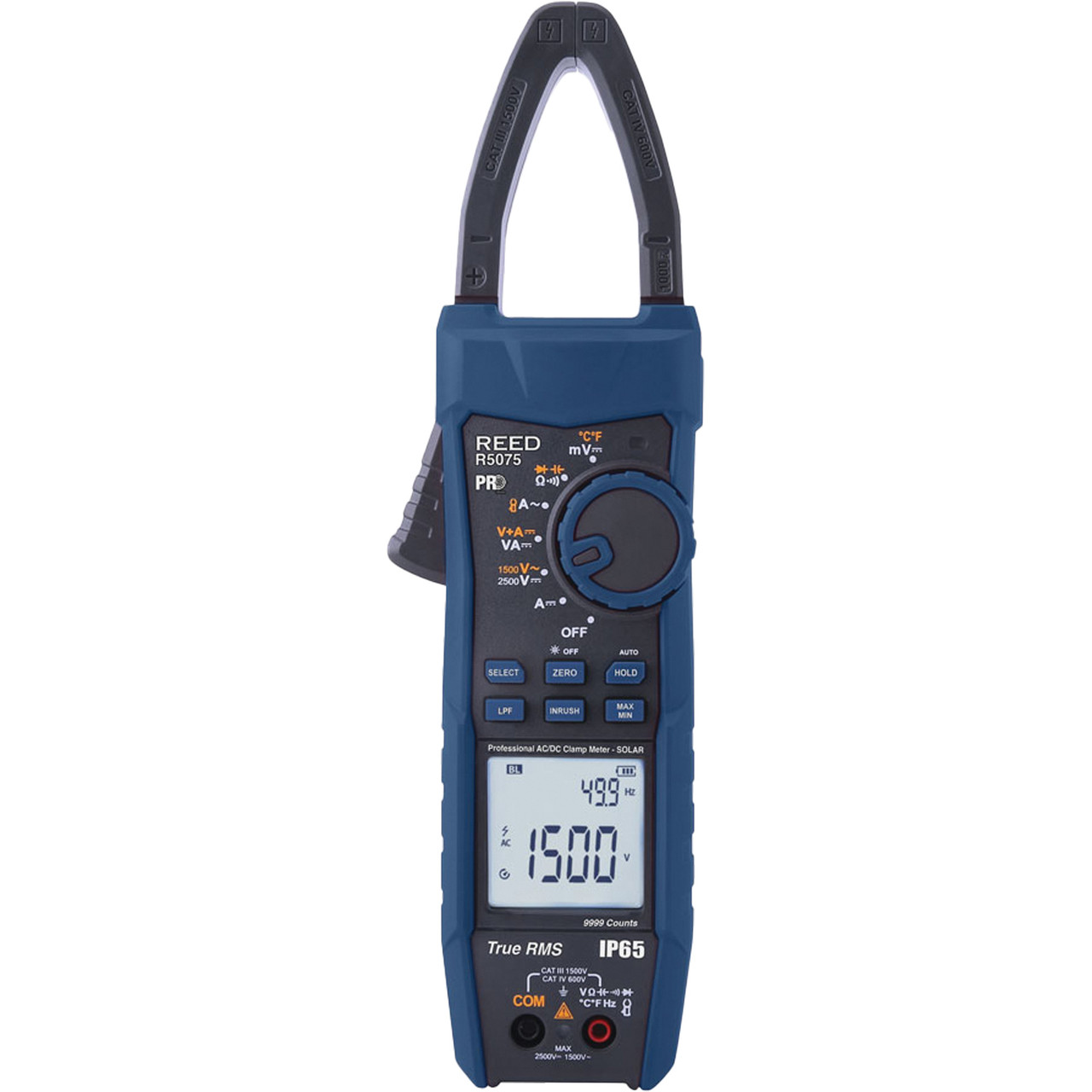

  • Professional Clamp Meter R5075
  • Professional Clamp Meter R5075
  • Professional Clamp Meter R5075

    • Professional Clamp Meter R5075

    Reed Instruments

    $518.48
    (No reviews yet) Write a Review
    SKU:
    REE R5075
    Weight:
    1.00 LBS
    Adding to cart… category.add_cart_announcement

    Product Description

  • Designed for high-voltage applications, this advanced clamp meter provides comprehensive measurements of AC/DC current and voltage, resistance, capacitance, frequency, and contact temperature.
  • With a high-resolution 9,999-count backlit LCD display and the ability to expand AC current measurement up to 3000A (using the optional R5065 flexible current probe), it’s built to handle demanding jobs.
  • The IP65 rating ensures durability in dusty or damp outdoor environments, making it ideal for applications in solar and wind power systems.
  • Measures AC/DC current and voltage, resistance, capacitance, frequency, and contact temperature
  • High-resolution 9,999-count backlit LCD display
  • Dual display allows simultaneous viewing of voltage and current measurements
  • True RMS voltage and current for accurate measurements
  • Expandable AC current measurement up to 3000A with the flexible current probe (R5065, sold separately)
  • Slim jaw design for easy access to cables in crowded combiner boxes, with the capacity to clamp around multiple cables
  • Ergonomically designed for a comfortable grip and can be used with protective gloves
  • DC power measurement capability with kVA readings
  • IP65-rated for reliable performance in dusty or damp outdoor environments, ideal for solar and wind power applications
  • Audible and visual polarity indicator to prevent accidental miswiring
  • Low Pass Filter (LPF) and inrush measurement capabilities for precise motor and HVAC testing
  • Min, Max, Average, Peak capturing and display hold
  • Diode test and continuity check functions
  • Low battery and over-range indicators
  • Cat. III 1500V, Cat. IV 600V safety rating

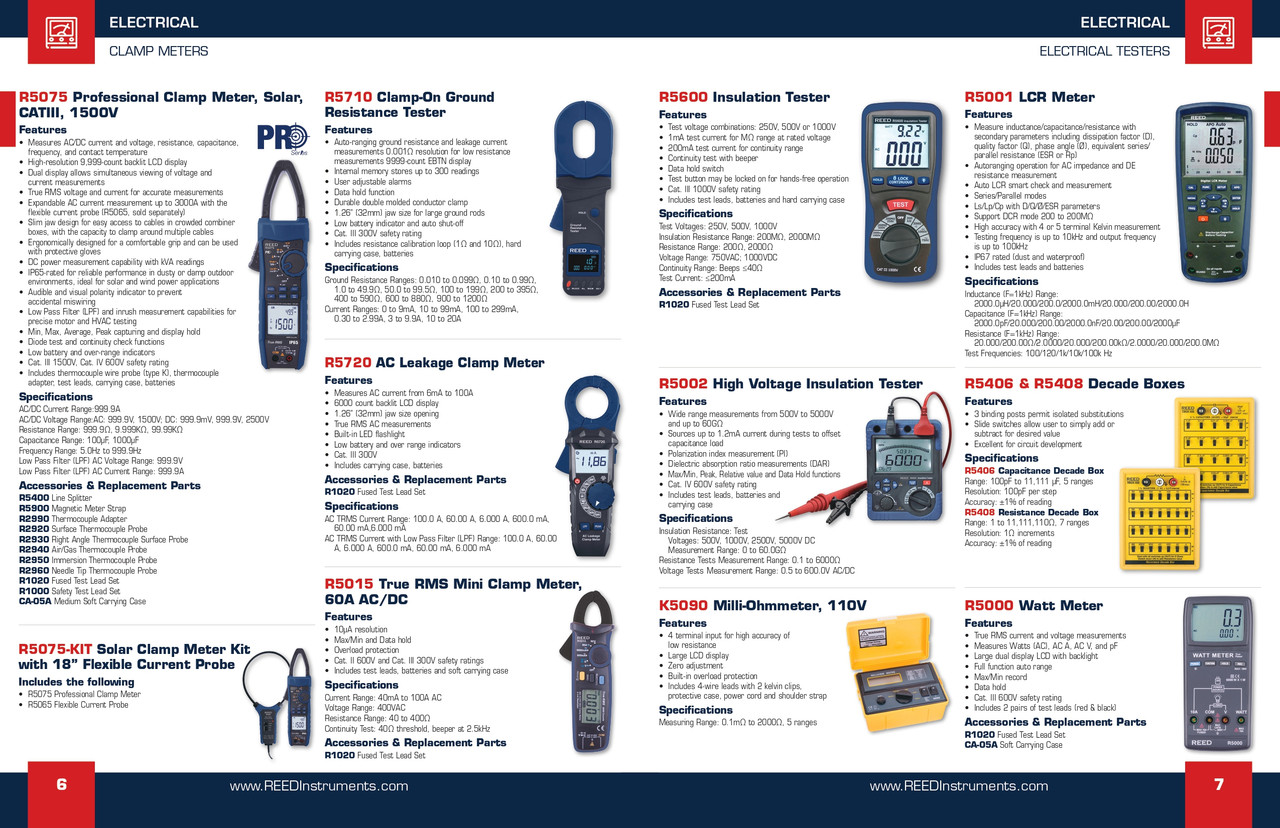

    adobepdficon.png Reed Instruments Catalog
