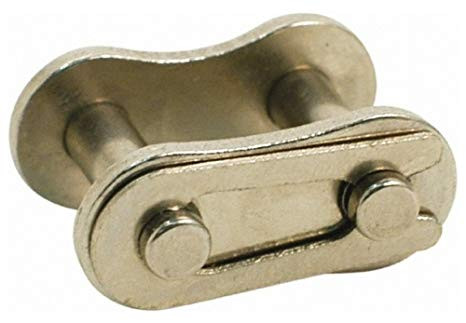

Nickel Plated Roller Chain Spring Clip Connector Link DRV-35-1 SC CO LINK NP

Nickel Plated Roller Chain Spring Clip Connector Link DRV-35-1 SC CO LINK NP

Timken/Drives

$7.25

(No reviews yet) Write a Review

SKU:: DRV-35-1 SC CO LINK NP
UPC:: UPC 642051582861
Weight:: 0.03 LBS
Former "Drives" identification number:: 58286
Chain classification:: ANSI 35
Chain strands:: 1
Quantity:: 1 link
Link type:: Spring clip connecting link
Material:: Nickel plated carbon steel

Overview
Reviews

Product Description

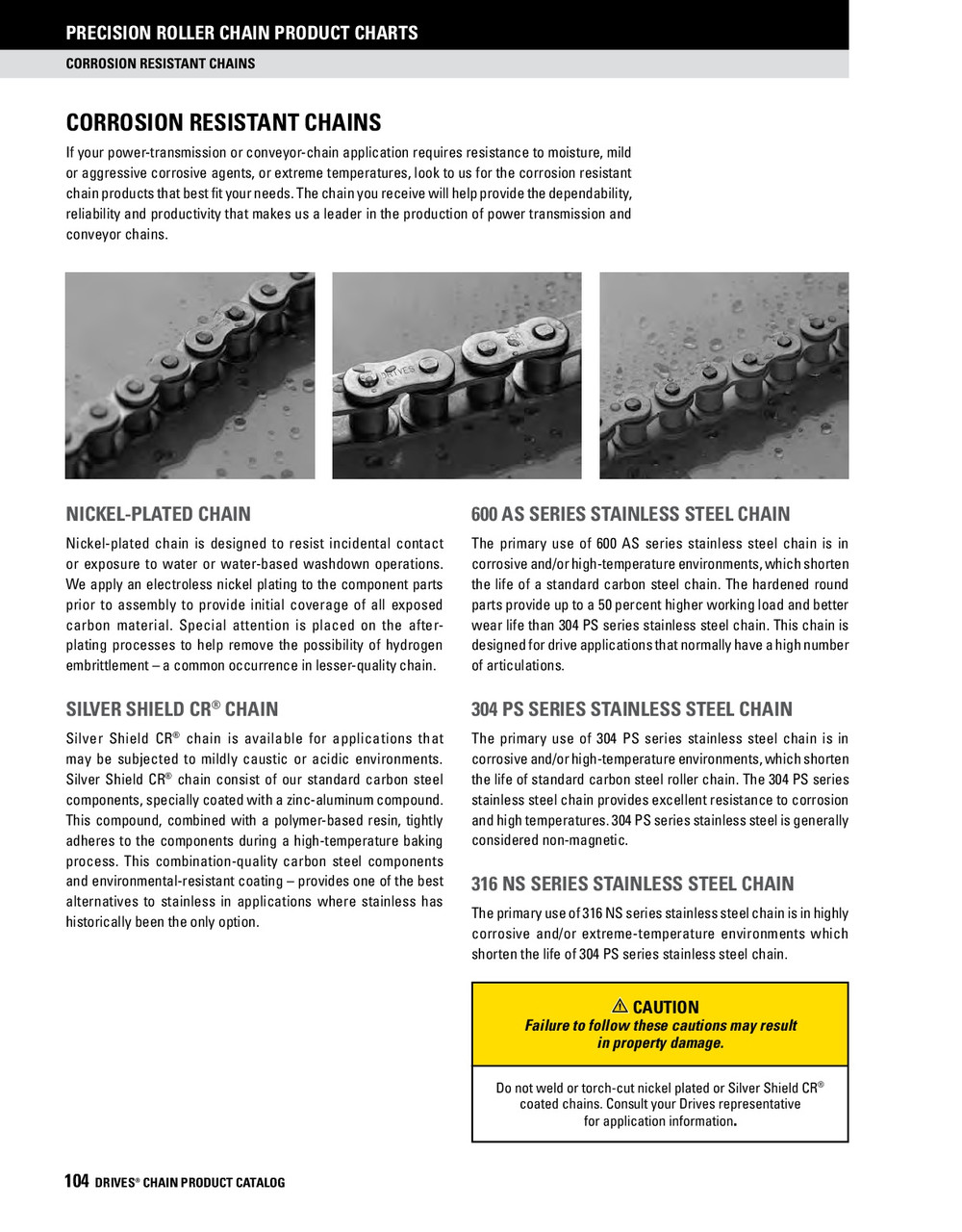

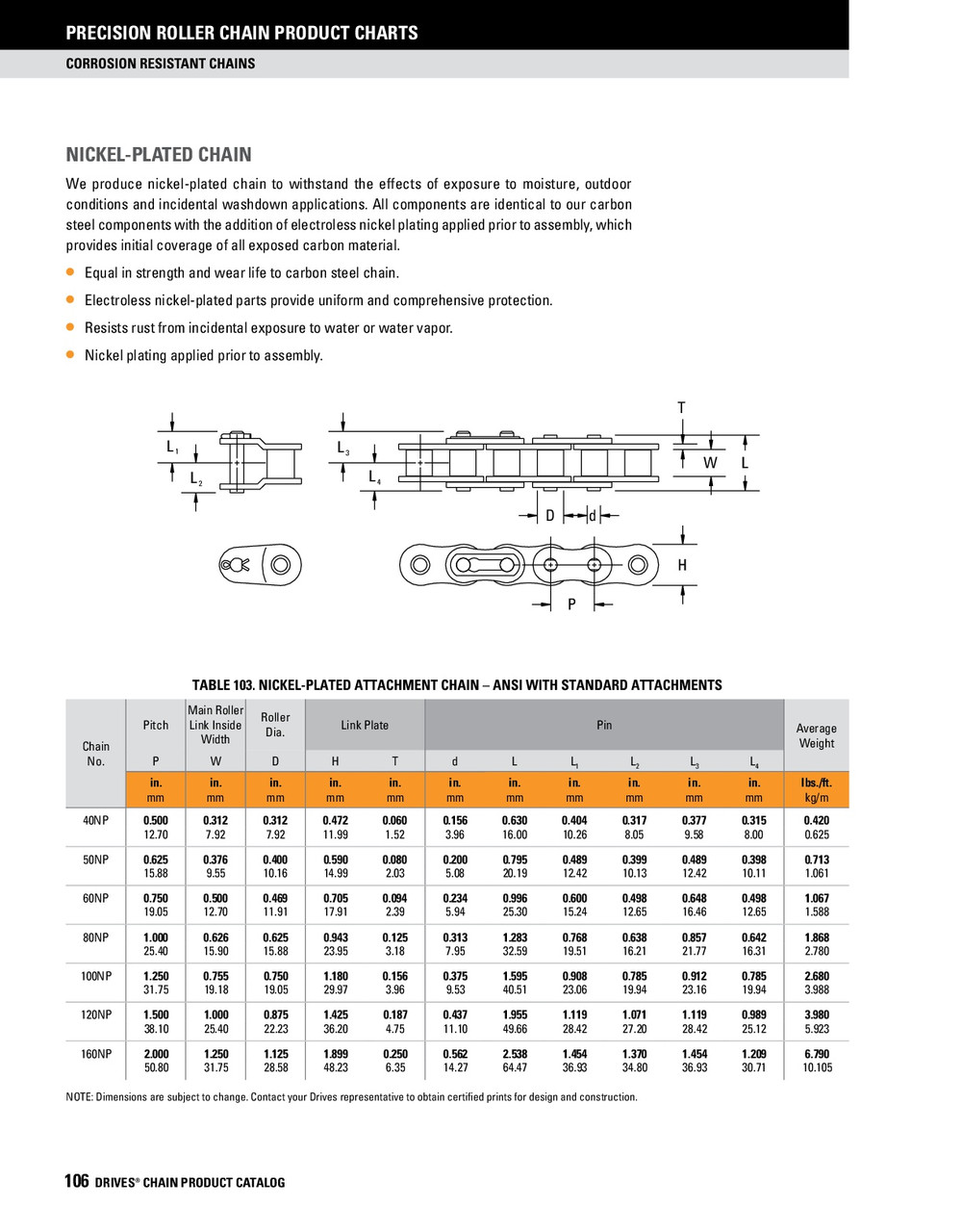

NICKEL PLATED CHAIN (NP)

Nickel-plated chain is designed to resist rusting from incidental contact or exposure to water or water-based washdown operations

All components are identical to our carbon steel components with the addition of electroless nickel plating being applied prior to assembly. This plating provides initial coverage of all exposed carbon material and provides uniform and comprehensive protection to all surfaces

Special attention is placed on the afterplating processes to help remove the possibility of hydrogen embrittlement which is a common occurrence in lesser-quality chain produced by other manufacturers

Nickel-plated chain is equal in strength and wear life to plain our carbon steel chain

CONNECTING LINKS

Standard connecting links are used when roller chain is operating under normal conditions

Spring-clip style connecting links are used for sizes 60H and smaller denoted by "S/C CO LINK"

Sizes 80 ~ 180H typically use a single special hardened "Sheppards" hook cotter pin denoted by "CT CO LINK SH"

Traditionl dual split cottered key connector links are also available in select chain sizes denoted by "SPL END CK"

Coated T-pins are used on chain sizes 200, 240 and 264 denoted by "CT CO LINK"

For severe applications, press fit connecting links are suggested denoted by "PF CO LINK"

Timken Drives General Catalog

Follow this link to access Timken's "Drives" customized roller chain attachment software.

Product Videos

Custom Field

Former "Drives" identification number 58286

Chain classification ANSI 35

Chain strands 1

Quantity 1 link

Link type Spring clip connecting link

Material Nickel plated carbon steel
