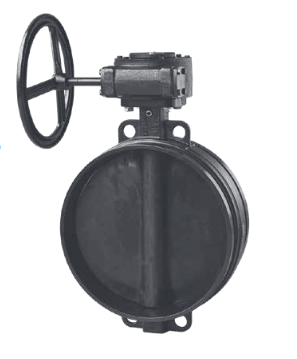

  • Model B333 Gruvlok Butterfly Valve /w Gear Operator 20"
  • Model B333 Gruvlok Butterfly Valve /w Gear Operator 20"
  • Model B333 Gruvlok Butterfly Valve /w Gear Operator 20"
  • Model B333 Gruvlok Butterfly Valve /w Gear Operator 20"

    • Model B333 Gruvlok Butterfly Valve /w Gear Operator 20"

    Gruvlok

    $0.00
    (No reviews yet) Write a Review
    SKU:
    GRV MODELB333VLVX20
    Weight:
    0.00 LBS
    Housing material:
    Ductile iron conforming to ASTM A 536, grade 65-45-12.

    Product Description

    Body lining

  • Grade “E” EPDM Service Temperature Range -30°F to +200°F (-34°C to +93°C) Recommended for water service, dilute acids, alkalies, oil-free air andmany chemical services. NOT FOR USE IN PETROLEUM SERVICES
  • Grade “T” Nitrile Service Temperature Range -20°F to +180°F (-29°C to +82°C) Recommended for petroleum products, air with oil vapors, vegetable oilsand mineral oils. NOT FOR USE IN HOT WATER SERVICES.

  • The Model B333 Large Diameter Butterfly Valve provides efficient control of fluid flow in piping systems. It is a grooved-end bubble tight shut-off valve with end-to-end dimensions that meet MSS SP-67, Table 4 and a mounting pad that meets ISO 5211 for the mounting of power actuators. The valve is capable of bidirectional fluid flow at working pressures to 300 psi (20 bar) and may be positioned in any orientation.
  • The 14 to 24 inch (DN350 to DN600) Model B333 Butterfly Valve is configured with a worm type gear operator and consists of an epoxy powder coated ductile iron body and EPDM or Nitrile (NBR) rubber encapsulation dual-seal disc. The body and disc construction provides for increased strength and durability. The disc seal and body coating are compatible with a variety of chemicals and temperature ranges

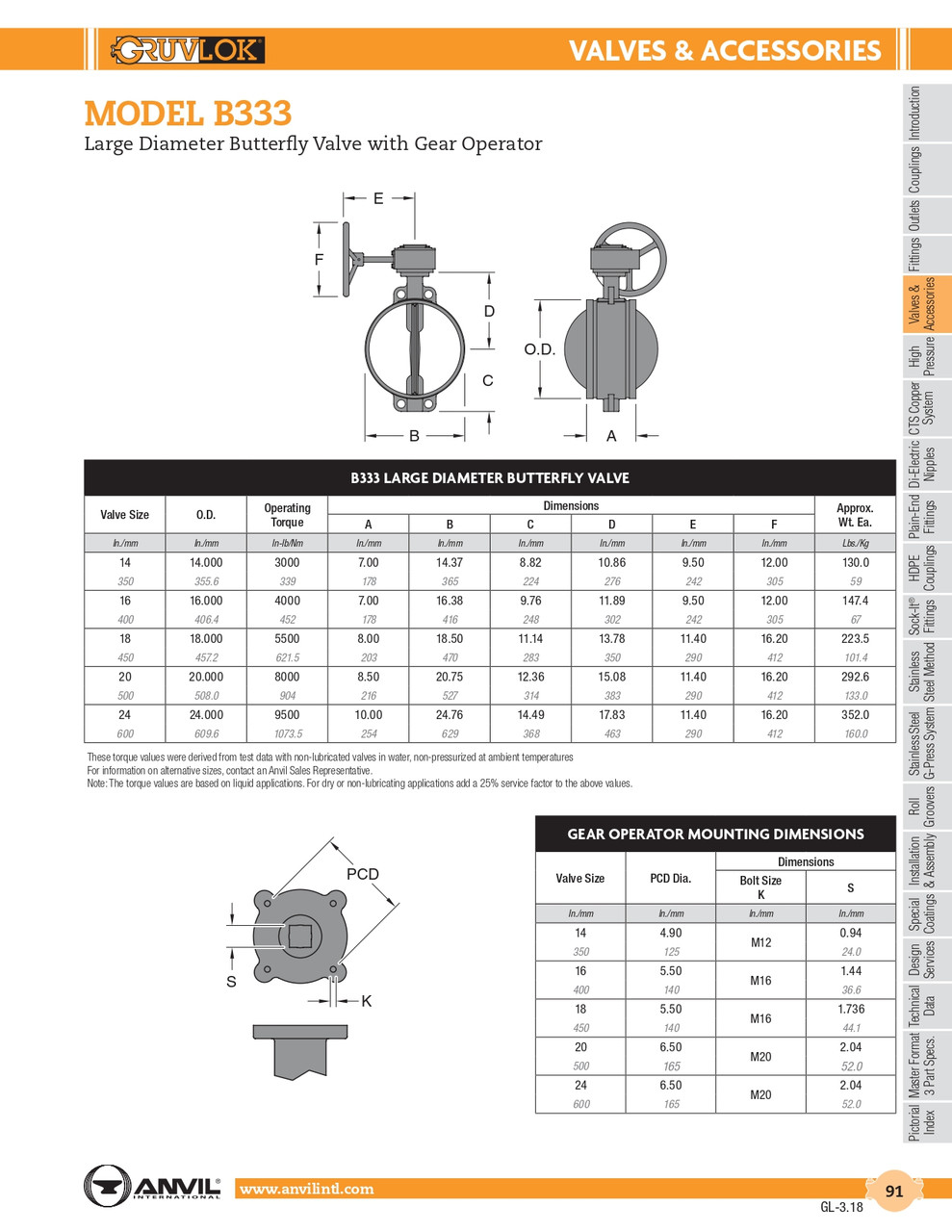

    adobepdficon.png Gruvlok Catalog

    • Product Videos

    Custom Field

    Housing material Ductile iron conforming to ASTM A 536, grade 65-45-12.
