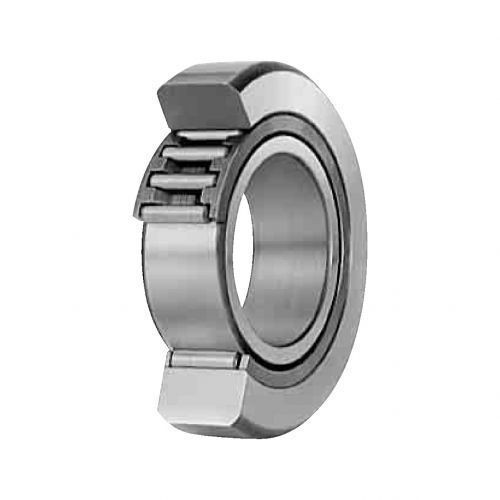

Metric Crowned Separable Roller Follower NAST 12 R

Metric Crowned Separable Roller Follower NAST 12 R

IKO

$83.76

(No reviews yet) Write a Review

SKU:: IKO NAST 12 R
Weight:: 0.00 LBS
Inner diameter:: 12mm
Outer diameter:: 32mm
Width:: 11.8mm
B dimension:: 12mm
Inner ring included:: Yes
Series:: Metric

Overview
Reviews

Product Description

IKO® roller followers are bearings designed for outer ring rotation, in which needle rollers are incorporated in a thick walled outer ring. Both crowned and cylindrical outer rings are available. The outer rings run directly on mating cam guide surfaces, and the crowned outer ring is effective in relieving the edge load caused by mounting errors. The cylindrical outer ring, on the other hand, has a large contact area with the mating cam guide surface and is suitable for applications involving large loads or low cam guide surface hardness. In roller followers, there are two types of bearings available, the caged type and the full complement type. The caged type is useful for applications at high-speed rotation. The full complement type, on the other hand, is suitable for heavy-load applications at low-speed rotation or oscillating motions. Roller followers include separable and non-separable types. Also, in addition to the open type, shield type and sealed type are available. The clearances between the side plates and outer ring of the shield type are narrow, and form labyrinths. In the sealed type, special synthetic rubber seals are assembled in these clearances, and they are effective in preventing penetration of dust and dirt. These bearings are available in a variety of types to suit almost any kind of application. They are widely used for cam mechanisms and for linear motions of conveying equipment.

IKO Catalog

Product Videos

Custom Field

Inner diameter 12mm

Outer diameter 32mm

Width 11.8mm

B dimension 12mm

Inner ring included Yes

Series Metric
