  • ISO Double Row Taper Bore Spherical Roller Bearing - Steel Cage 23030EAKW33C3
  • ISO Double Row Taper Bore Spherical Roller Bearing - Steel Cage 23030EAKW33C3
  • ISO Double Row Taper Bore Spherical Roller Bearing - Steel Cage 23030EAKW33C3
  • ISO Double Row Taper Bore Spherical Roller Bearing - Steel Cage 23030EAKW33C3
  • ISO Double Row Taper Bore Spherical Roller Bearing - Steel Cage 23030EAKW33C3

    • ISO Double Row Taper Bore Spherical Roller Bearing - Steel Cage 23030EAKW33C3

    NTN

    $1,565.00
    (No reviews yet) Write a Review
    SKU:
    23030EAKW33C3
    UPC:
    UPC 4547359749878
    Weight:
    16.25 LBS
    Adding to cart… category.add_cart_announcement

    Product Description

  • NTN has too many products to list in one book! Please follow this link to access their rich catalog database and detailed information on specific products.

  • If you would like to use the NTN bearing finder software, please follow this link to access their helpful identification tool.

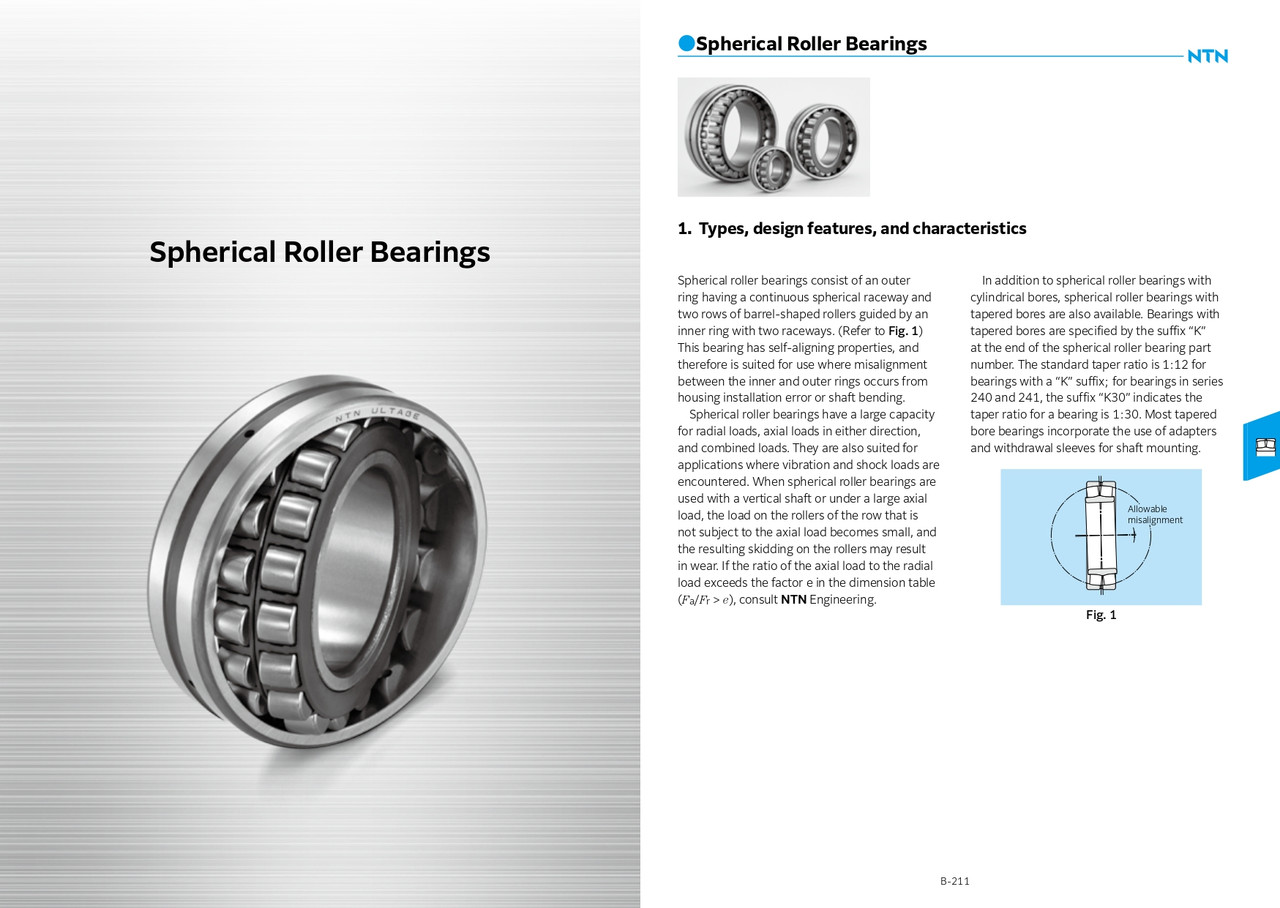

  • Spherical roller bearings consist of an outer ring having a continuous spherical raceway and two rows of barrel-shaped rollers guided by an inner ring with two raceways.
  • This bearing has self-aligning properties, and therefore is suited for use where misalignment between the inner and outer rings occurs from housing installation error or shaft bending.
  • Spherical roller bearings have a large capacity for radial loads, axial loads in either direction, and combined loads.
  • They are also suited for applications where vibration and shock loads are encountered.
  • When spherical roller bearings are used with a vertical shaft or under a large axial load, the load on the rollers of the row that is not subject to the axial load becomes small, and the resulting skidding on the rollers may result in wear.
  • ISO class spherical roller bearings are available with straight bore and tapered bore ("K" suffix) inner races for various shaft mount applications.
  • The standard taper ratio is 1:12 for bearings with a “K” suffix; for bearings in series 240 and 241, the suffix “K30” indicates the taper ratio of 1:30.
  • Most tapered bore bearings incorporate the use of adapters and withdrawal sleeves for shaft mounting.


    • adobepdficon.png  NTN Ultage Spherical Roller Bearings




    adobepdficon.png  NTN KIZEI Spherical Roller Sealing System




    adobepdficon.png  NTN Ball & Roller Bearings General Catalog




    adobepdficon.png  NTN "WA" Sealed Spherical Roller Bearings




    adobepdficon.png  NTN Bearing Nomenclature
