  • Inch THX Series Dryslide Co-Acetal Cylindrical Bushing 48THX40
  • Inch THX Series Dryslide Co-Acetal Cylindrical Bushing 48THX40
  • Inch THX Series Dryslide Co-Acetal Cylindrical Bushing 48THX40
  • Inch THX Series Dryslide Co-Acetal Cylindrical Bushing 48THX40
  • Inch THX Series Dryslide Co-Acetal Cylindrical Bushing 48THX40

    • Inch THX Series Dryslide Co-Acetal Cylindrical Bushing 48THX40

    Daemar

    $0.00
    (No reviews yet) Write a Review
    SKU:
    DAE 48THX40
    Weight:
    0.30 LBS
    Width:
    3.19 (in)
    Height:
    3.19 (in)
    Depth:
    2.50 (in)

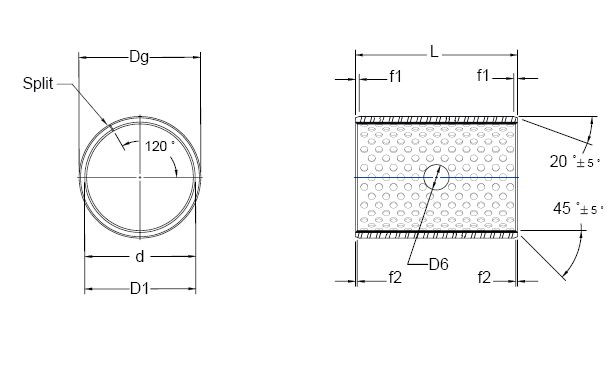

    Inner (d) x Outer (Dg) x Width (L):
    3.000 x 3.188 x 2.500"

    Product Description

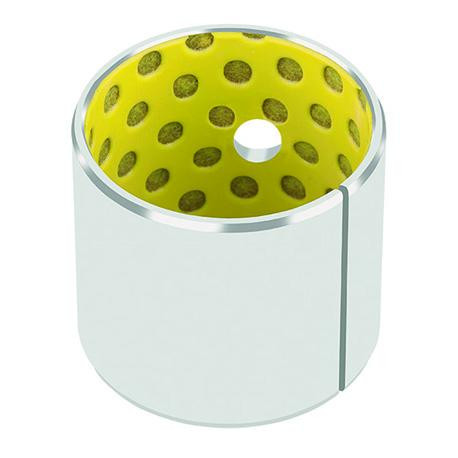

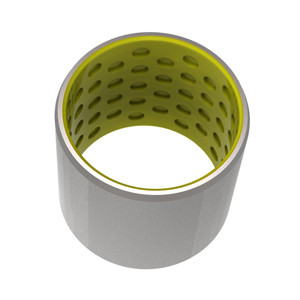

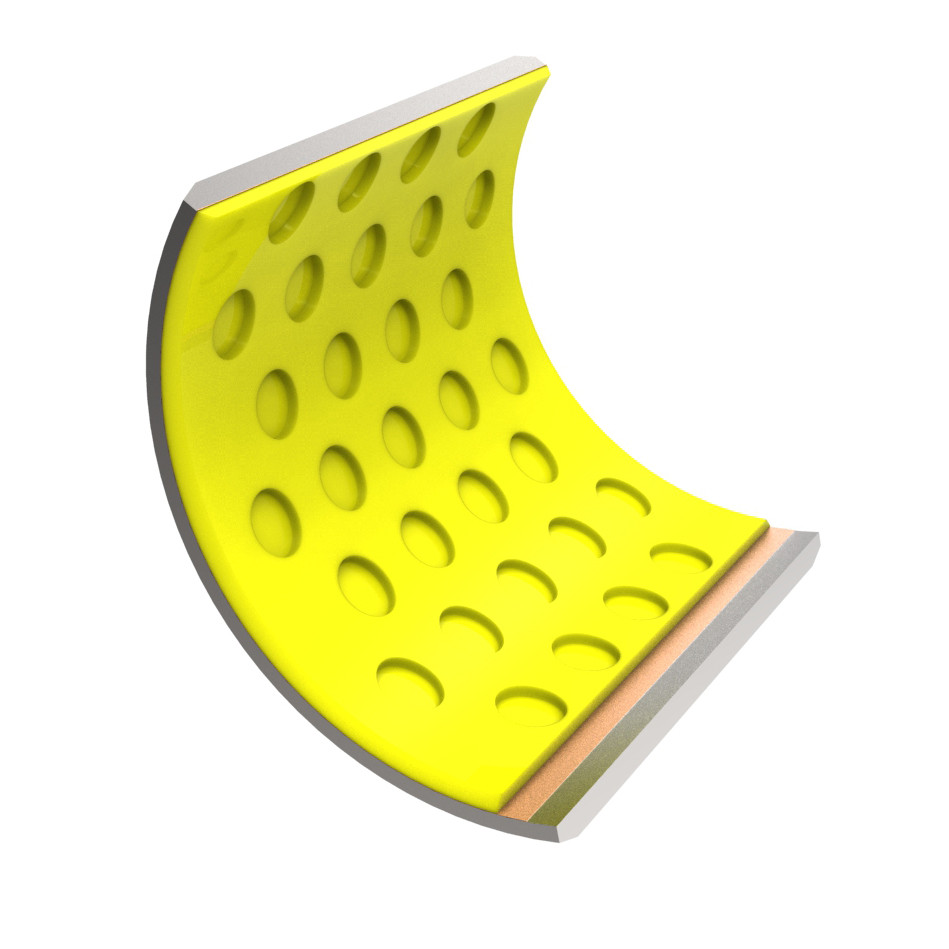

  • The THX backing consists of carbon steel onto which a porous layer of bronze is sintered and then impregnated with a dimpled co-acetal plastic. The dimpled surfaces retain lubricant in their depressions releasing small evenly distributed amounts onto the shaft that slides or rotates across them. The main products in the THX range are the cylindrical bushings (DIN 1494), but thrust washers and strips are also available as well as special parts made to customer specifications



     adobepdficon.png  DMR Bushings



    •

    Product Videos

    Custom Field

    Inner (d) x Outer (Dg) x Width (L) 3.000 x 3.188 x 2.500"
