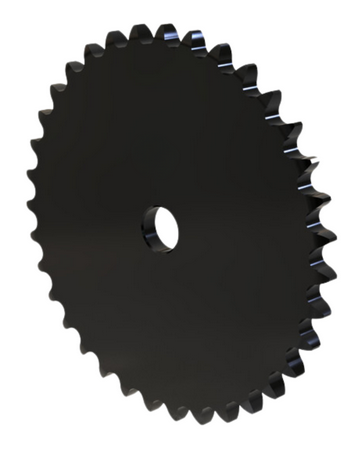

  • Hardened Plain Bore Plate Sprocket H35A35
  • Hardened Plain Bore Plate Sprocket H35A35
  • Hardened Plain Bore Plate Sprocket H35A35

    • Hardened Plain Bore Plate Sprocket H35A35

    Ringball

    $9.32
    (No reviews yet) Write a Review
    SKU:
    RBL H35A35
    UPC:
    UPC 623647417187
    Weight:
    0.60 LBS
    Chain series:
    35
    Tooth count:
    35
    Pilot diameter:
    5/8"
    Hardened tooth:
    Yes
    Finish:
    Black oxide
    Standards:
    ANSI/ASME
    Adding to cart… category.add_cart_announcement

    Product Description

  • Type A sprockets are the most basic form of sprocket one can order.
  • They have no center hubs for shaft mounting but instead offer a small pilot hole at their center to provide the machinist with options.
  • Smaller sprockets are hardened to Rockwell C35-50 standards.
  • Larger sprockets are hardened to Rockwell C25-40 standards.
  • The depth of hardness is highly monitored enabling proper hardness of the sprocket tooth's working area.
  • Please note that not all numbers from the catalog have been entered into the web store yet. If you require a sprocket listed in the catalog, but do not see it currently listed online, feel free to email or call and we will gladly quote you price & delivery.

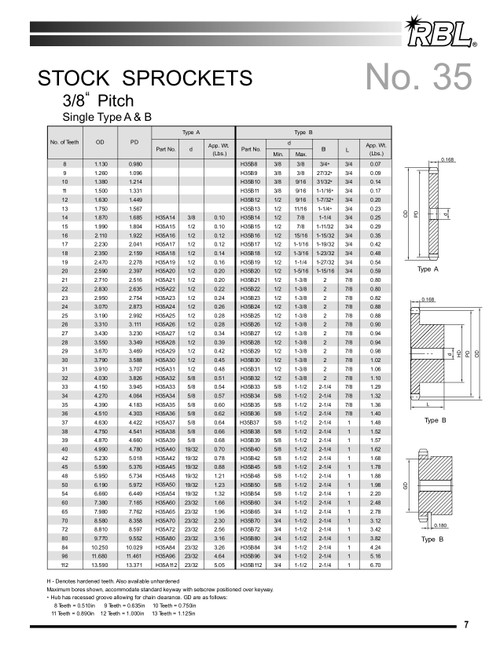

    adobepdficon.pngRingball Sprocket Catalog



    • Product Videos

    Custom Field

    Chain series 35
    Tooth count 35
    Pilot diameter 5/8"
    Hardened tooth Yes
    Finish Black oxide
    Standards ANSI/ASME
