Hardened Idler Sprocket HB50C17x58

Ringball

$19.19

(No reviews yet) Write a Review

SKU:: RBL HB50C17 X 5/8
UPC:: UPC 623647433972
Weight:: 0.75 LBS
Chain series:: 50
Tooth count:: 17
Hardened tooth:: Yes
Hub type:: C
Bearing shaft:: 0.64"
Repalceable bearing:: Yes
Bearing:: 203KRR2
Snap ring:: 5000-150 / HO-0150-PA
Finish:: Black oxide
Standards:: ANSI/ASME

Overview
Reviews

Product Description

These hardened, long lasting, idler sprockets have replaceable inner ball bearings which can be easily changed making them much more economical than investing in disposable, non servicable, stamped steel sprocket designs.

Servicing is done by removing a 5000 series internal snap ring from one side of the sprocket, press the old bearing out from the opposite side, press in the new one, snap back the retaining ring and you're done.

A bench vise and a couple of appropriate sized chrome sockets work well for bearing removal, however when pressing in the new ball bearing, press against the outer race only. Don't press against the bearings sealing cover or its inner race as damage will likely occur.

Smaller sprockets are hardened to Rockwell C35-50 standards.

Larger sprockets are hardened to Rockwell C25-40 standards.

The depth of hardness is highly monitored enabling proper hardness of the sprocket tooth's working area.

Please note that not all numbers from the catalog have been entered into the web store yet. If you require a sprocket listed in the catalog, but do not see it currently listed online, feel free to email or call and we will gladly quote you price & delivery.

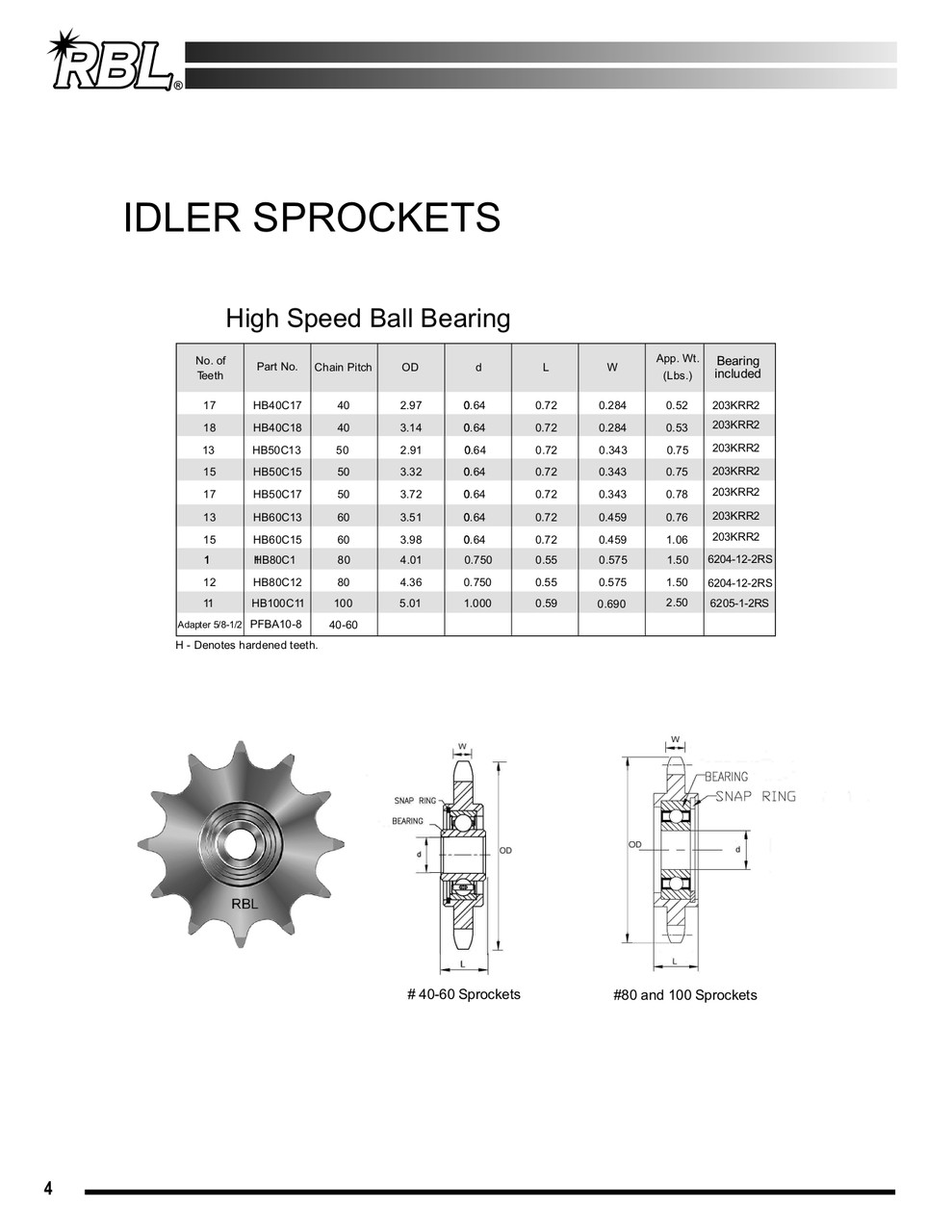

Ringball Sprocket Catalog

Product Videos

Custom Field

Chain series 50

Tooth count 17

Hardened tooth Yes

Hub type C

Bearing shaft 0.64"

Repalceable bearing Yes

Bearing 203KRR2

Snap ring 5000-150 / HO-0150-PA

Finish Black oxide

Standards ANSI/ASME
