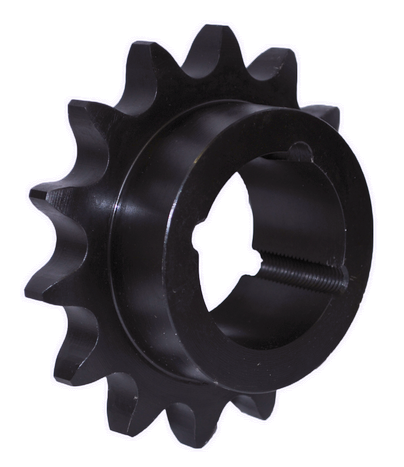

  • Hardened "Dodge®" Taper Lock Bushed Sprocket H60BTB60
  • Hardened "Dodge®" Taper Lock Bushed Sprocket H60BTB60
  • Hardened "Dodge®" Taper Lock Bushed Sprocket H60BTB60
  • Hardened "Dodge®" Taper Lock Bushed Sprocket H60BTB60

    • Hardened "Dodge®" Taper Lock Bushed Sprocket H60BTB60

    Ringball

    $337.91
    (No reviews yet) Write a Review
    SKU:
    RBL H60BTB60
    UPC:
    UPC 623647464686
    Weight:
    21.00 LBS
    Chain series:
    60
    Tooth count:
    60
    Hardened tooth:
    Yes
    Bushing series:
    TB / TL / Dodge®
    Finish:
    Black oxide
    Standards:
    ANSI/ASME
    Adding to cart… category.add_cart_announcement

    Product Description

  • The "TL" design is known in the industry as a "Dodge®" style taper lock bushing.
  • The "TL" taper lock bushing was originally invented by Dodge® Industrial in 1939.
  • TL taper lock sprockets are specialy designed for use with roller chains in power transmission systems, featuring a unique flush mount taper-lock design for easy installation and removal.
  • The "TL"design allows for flexibility in bore size options without having to replace the entire sprocket, by simply changing the accompanying taper-lock bushing.
  • The "TL" design facilitates the bushing to nest flush into its mating hub so that it maintains a much narrower profile than the competing "Browning®" and "QD" bushed sprocket assemblies whose flange and bolt heads protrude from the sprocket surface much greater.
  • The "TL" flush mount design does come with a caveat. The flangeless split taper lock bushings have a tendency to split into two pieces when removal or realignment is required, whereas the flanged "Browning® and "QD" designs do not suffer this weakness.

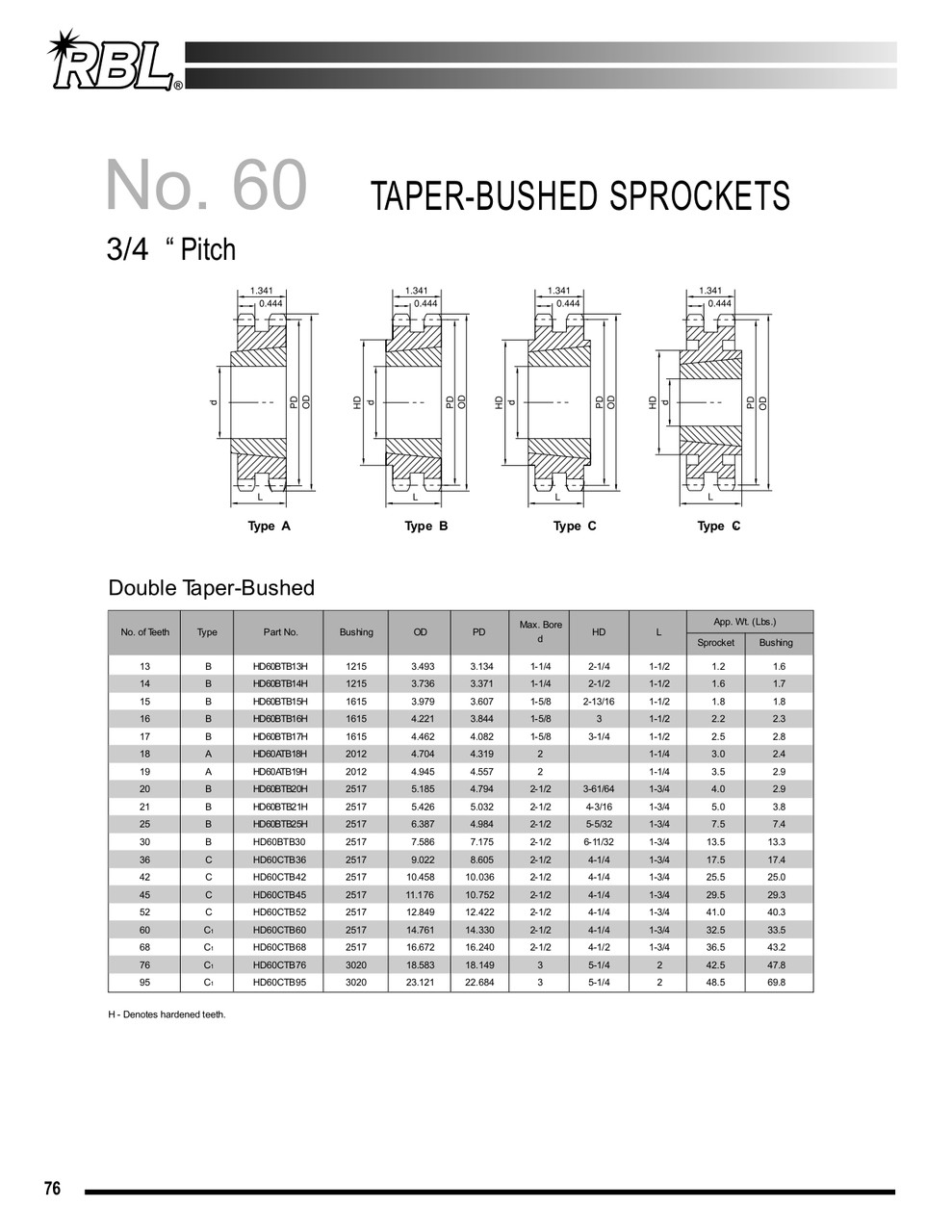

    adobepdficon.pngRingball Sprocket Catalog



    • Product Videos

    Custom Field

    Chain series 60
    Tooth count 60
    Hardened tooth Yes
    Bushing series TB / TL / Dodge®
    Finish Black oxide
    Standards ANSI/ASME
