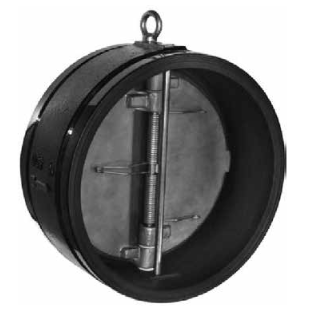

  • Fig. CV890 Dual Disc Check Valve 18"
  • Fig. CV890 Dual Disc Check Valve 18"
  • Fig. CV890 Dual Disc Check Valve 18"
  • Fig. CV890 Dual Disc Check Valve 18"

    • Fig. CV890 Dual Disc Check Valve 18"

    Gruvlok

    $0.00
    (No reviews yet) Write a Review
    SKU:
    GRV FIGCV890X18
    Weight:
    0.00 LBS
    Housing material:
    Ductile iron conforming to ASTM A 536, grade 65-45-12.

    Product Description

    The Figure CV890 Dual Disc Check Valve is a grooved end, dual disc check valve used for pipelines to convey water and other fluids with a rated working pressure up to 300 psi (20.7 bar). This Dual Disc Check Valve is available in sizes from 14 inches (350 mm) to 24 inches (600 mm).

  • The Figure CV890 Dual Disc Check Valve features a fully lined rubber body, spring-loaded 304 stainless steel disc and shafts. The Dual Disc Check Valve can be installed in a horizontal or vertical position (upward flow only). A lifting lug is provided with the assembly for ease of handling. The face to face dimensions conforms to API 594 Class 150 and grooved end dimensions to ANSI/AWWA C606. The seat and shell pressure tests conform to MSS SP-136 or higher.
  • The Figure CV890 Dual Disc Check Valve is lighter than conventional swing check valves and is easier to install, utilizing only two grooved couplings. It is more economical than wafer or lugged valves. The Dual Disc Check Valve design produces less water hammer than a single disc valve. The spring-loaded disc design provides for positive closing. The fully lined rubber body and soft seat reduces noise and maintenance.

    adobepdficon.png Gruvlok Catalog

    • Product Videos

    Custom Field

    Housing material Ductile iron conforming to ASTM A 536, grade 65-45-12.
