  • Fig. 7305 HDPE Coupling 12"
  • Fig. 7305 HDPE Coupling 12"
  • Fig. 7305 HDPE Coupling 12"
  • Fig. 7305 HDPE Coupling 12"

    • Fig. 7305 HDPE Coupling 12"

    Gruvlok

    $0.00
    (No reviews yet) Write a Review
    SKU:
    GRV FIG7305X12
    Weight:
    0.00 LBS
    Housing material:
    Ductile iron conforming to ASTM A 536, grade 65-45-12.

    Product Description

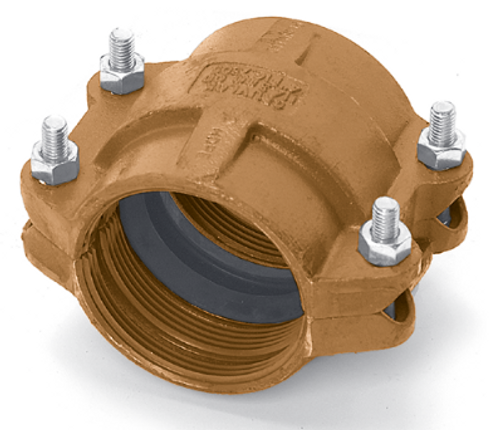

  • The Gruvlok Figure 7305 HDPE Coupling is a cost effective, easy to assemble, mechanical joint for HDPE pipe conforming to ASTM F714, D2447, D3000, or D3035 with wall thicknesses ranging from SDR 32.5 to SDR 7.3. The Gruvlok coupling method also eliminates the need for costly fusion equipment.
  • Each coupling uses four bolts to drive sharply machined teeth into the outside of the HDPE pipe. When the teeth effectively grip into the pipe, it provides a secure and rigid mechanical connection with pressure capabilities exceeding that of the HDPE pipe itself. The banks of teeth are positioned away from the gasket to enhance the gasket’s sealing ability throughout the operating temperature range.
  • The Figure 7305 HDPE coupling also provides a low profile contoured housing with ramps along the outside diameter. This allows the coupling to slide over most obstacles when long lengths of the pipeline are relocated.

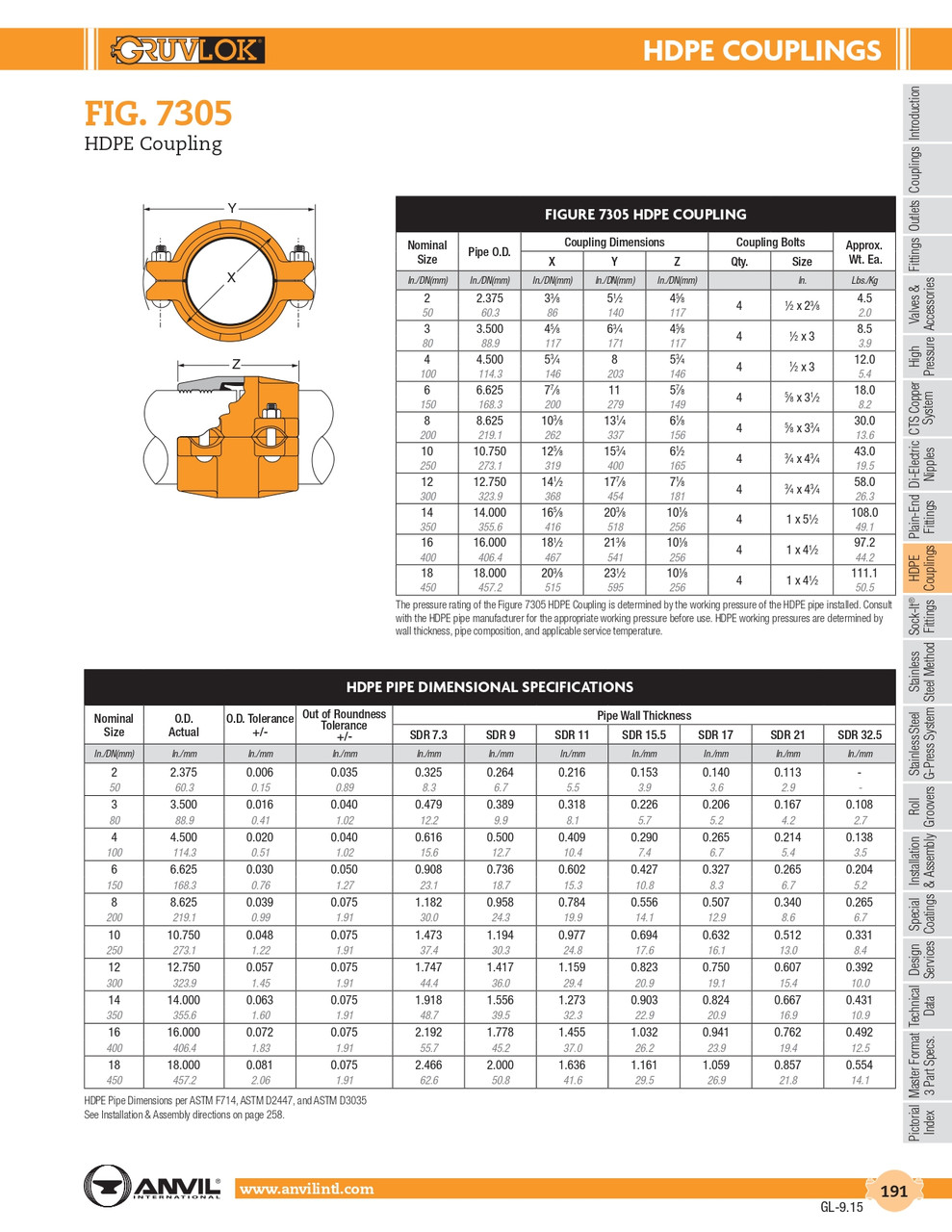

    adobepdficon.png Gruvlok Catalog

    • Product Videos

    Custom Field

    Housing material Ductile iron conforming to ASTM A 536, grade 65-45-12.
