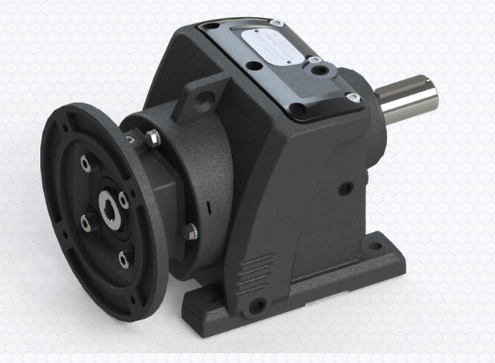

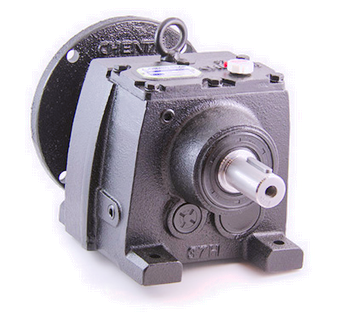

  • Chenta In-Line Helical Gear C-Flange Speed Reducer LHN 97-182TC
  • Chenta In-Line Helical Gear C-Flange Speed Reducer LHN 97-182TC
  • Chenta In-Line Helical Gear C-Flange Speed Reducer LHN 97-182TC
  • Chenta In-Line Helical Gear C-Flange Speed Reducer LHN 97-182TC

    • Chenta In-Line Helical Gear C-Flange Speed Reducer LHN 97-182TC

    Power-Link

    $0.00
    (No reviews yet) Write a Review
    SKU:
    PLI LHN 97-182TC
    Weight:
    0.00 LBS
    Reducer size:
    97
    Chenta series:
    LHN
    PLI series:
    LHN
    NEMA input flange:
    182TC
    Input shaft option A:
    1-1/8"
    Output shaft:
    2-3/8"
    Available ratio range:
    4.00:1 ~ 199.06
    Country of origin:
    Taiwan

    Product Description

  • DESIGN CONCEPTS: The combination of standardization and modularization allows interchangeability with international leading brands, while keeping structure rigidity and compactness.
  • ENERGY EFFICIENCY: Leveraging the advantage of high accuracy of helical gears, the reducers perform at 90% efficiency with higher stability and lower noise level.
  • RATIOS COVERAGE: 1 to 3 stages of reduction provides a wide range of ratio accommodation from 1/1.3 to 1/27788.
  • LOADING CAPACITY: Available with power ranges from 1/4HP up to 150HP depending on different requirements and applications.
  • TENSILE STRENGTH: Pinion and gears are made with 20CrMo alloy steel plus carburizing heat treatment to enhance performance; the input pinion is equipped with double bearing support to provide stability at high speed.
  • COMPLETE SERIES: Vertical and horizontal mounting along various input mechanism ensure the products meet a wide range of applications.
  • INSTALLATION FLEXIBILITY: All models are designed for a choice of mounting position (M1 to M6) specified by customers.
  • APPEARANCE AESTHETICS: The products are designed with a modern exterior while maintaining high rigidity.


    adobepdficon.pngPower-Link Catalog




    adobepdficon.pngChenta In-Line Speed Reducer Catalog - Metric

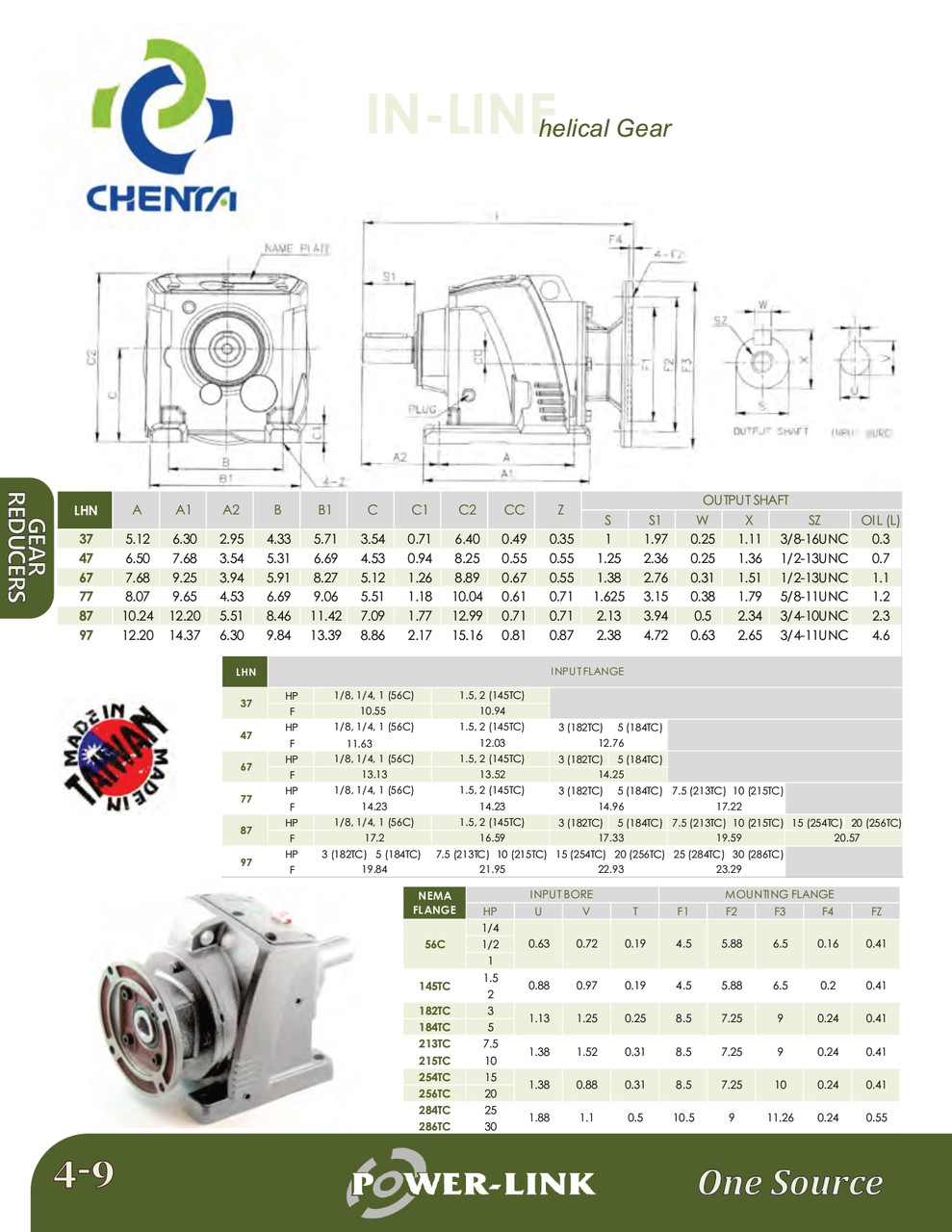

    adobepdficon.pngChenta In-Line Speed Reducer Catalog - SAE



    • Product Videos

    Custom Field

    Reducer size 97
    Chenta series LHN
    PLI series LHN
    NEMA input flange 182TC
    Input shaft option A 1-1/8"
    Output shaft 2-3/8"
    Available ratio range 4.00:1 ~ 199.06
    Country of origin Taiwan
