#9 Sure-Flex® Split Hytrel Insert 9HS-SLEEVE

Overview
Reviews

Product Description

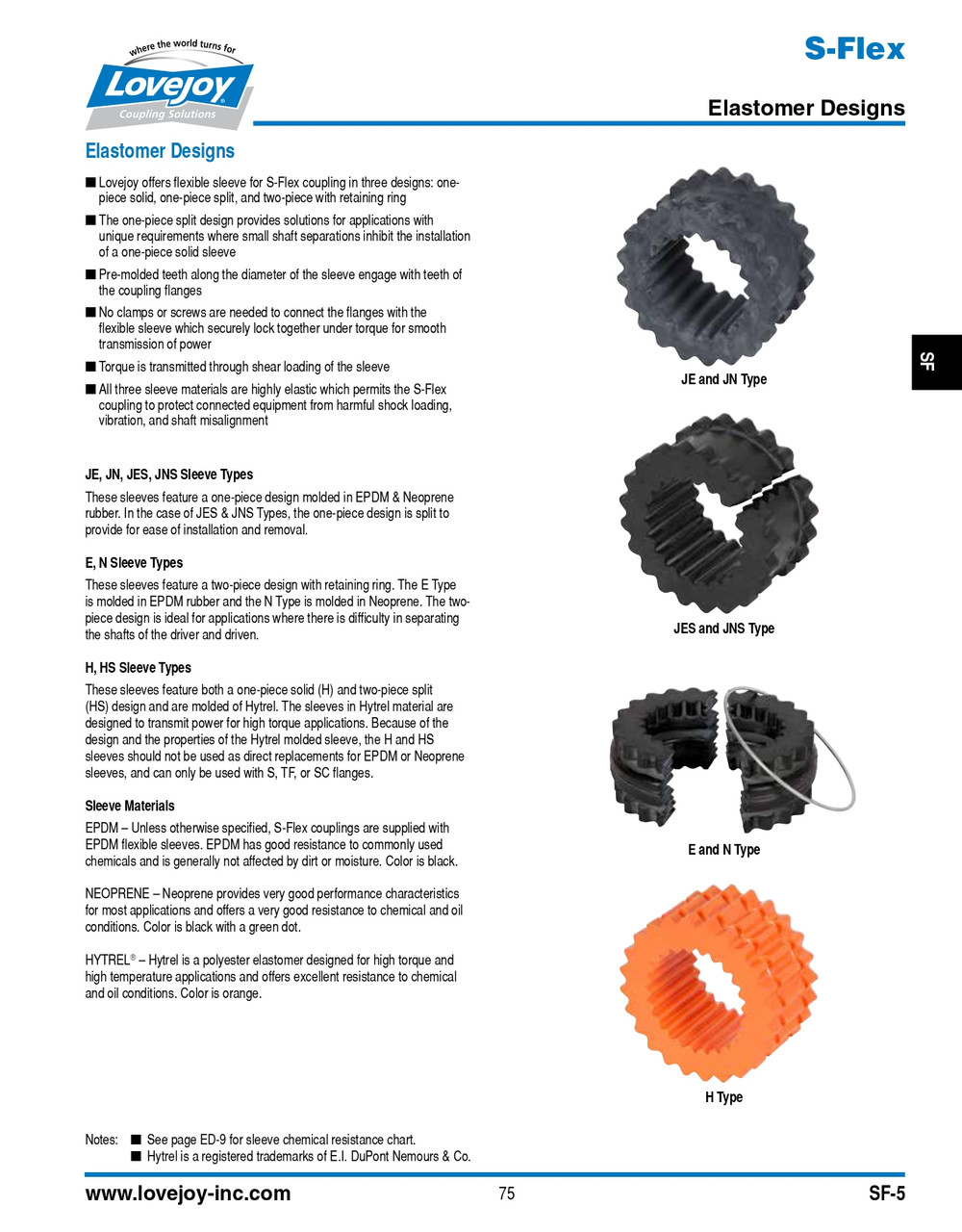

Lovejoy offers flexible sleeves for S-Flex Endurance couplings in three designs: one-piece solid, one-piece split, and two-piece with retaining ring

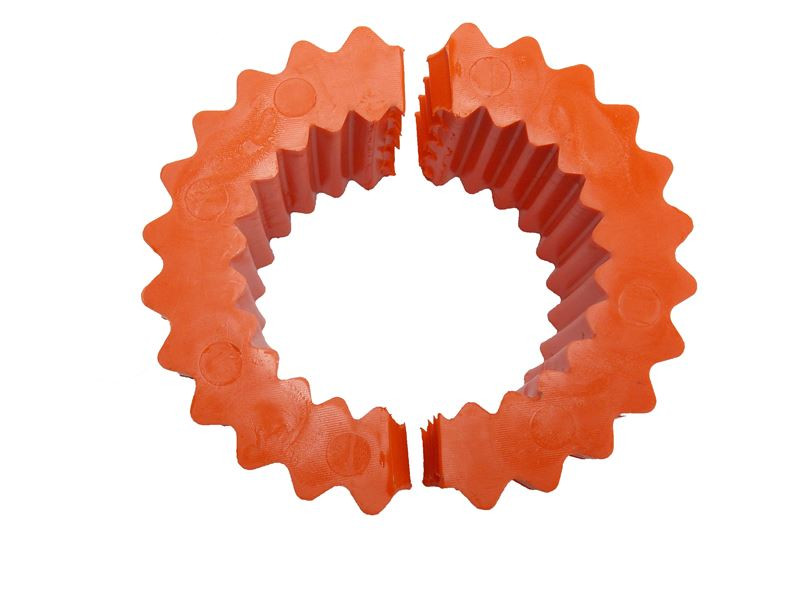

The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve

Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges

No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power

Torque is transmitted through shear loading of the sleeve

All three sleeve materials are highly elastic which permits the S-Flex coupling to protect connected equipment from harmful shock loading, vibration, and shaft misalignment

These sleeves feature both a one-piece solid (H) and two-piece split (HS) design and are molded of Hytrel. The sleeves in Hytrel material are designed to transmit power for high torque applications. Because of the design and the properties of the Hytrel molded sleeve, the H and HS sleeves should not be used as direct replacements for EPDM or Neoprene sleeves, and can only be used with S, TF, or SC flanges.

Operating Hytrel within a high service factor application is not recommended.

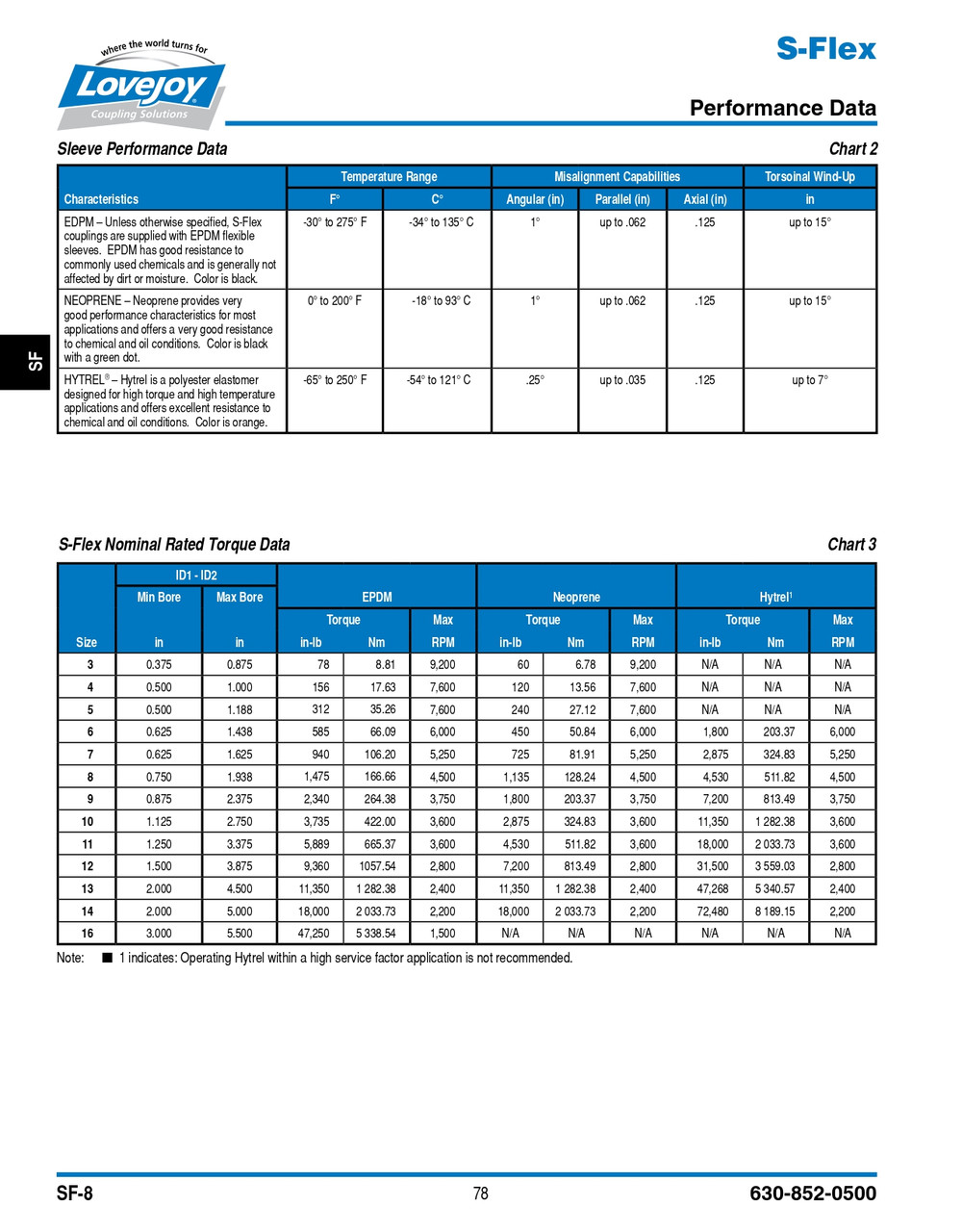

H and HS Type sleeves are designed for high torque applications, transmitting about 4 times as much power as an equivalent EPDM or Neoprene sleeve.

Hytrel sleeves can be used only with S or SC flanges and can not be used with J or B flanges.

Hytrel sleeves should not be used as direct replacements for EPDM or Neoprene applications.

Timkens Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.

By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.

Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

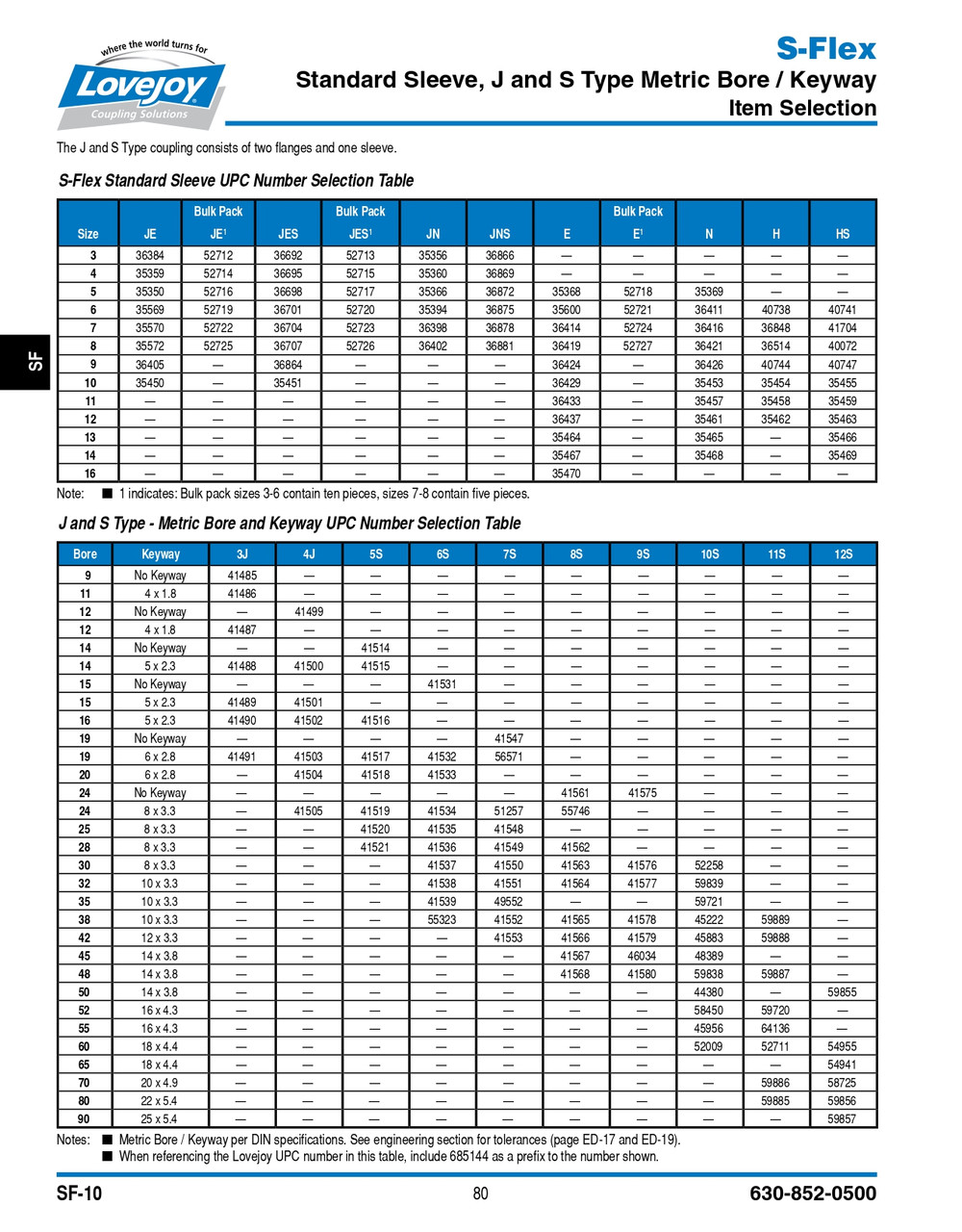

Timken Lovejoy Master Catalog

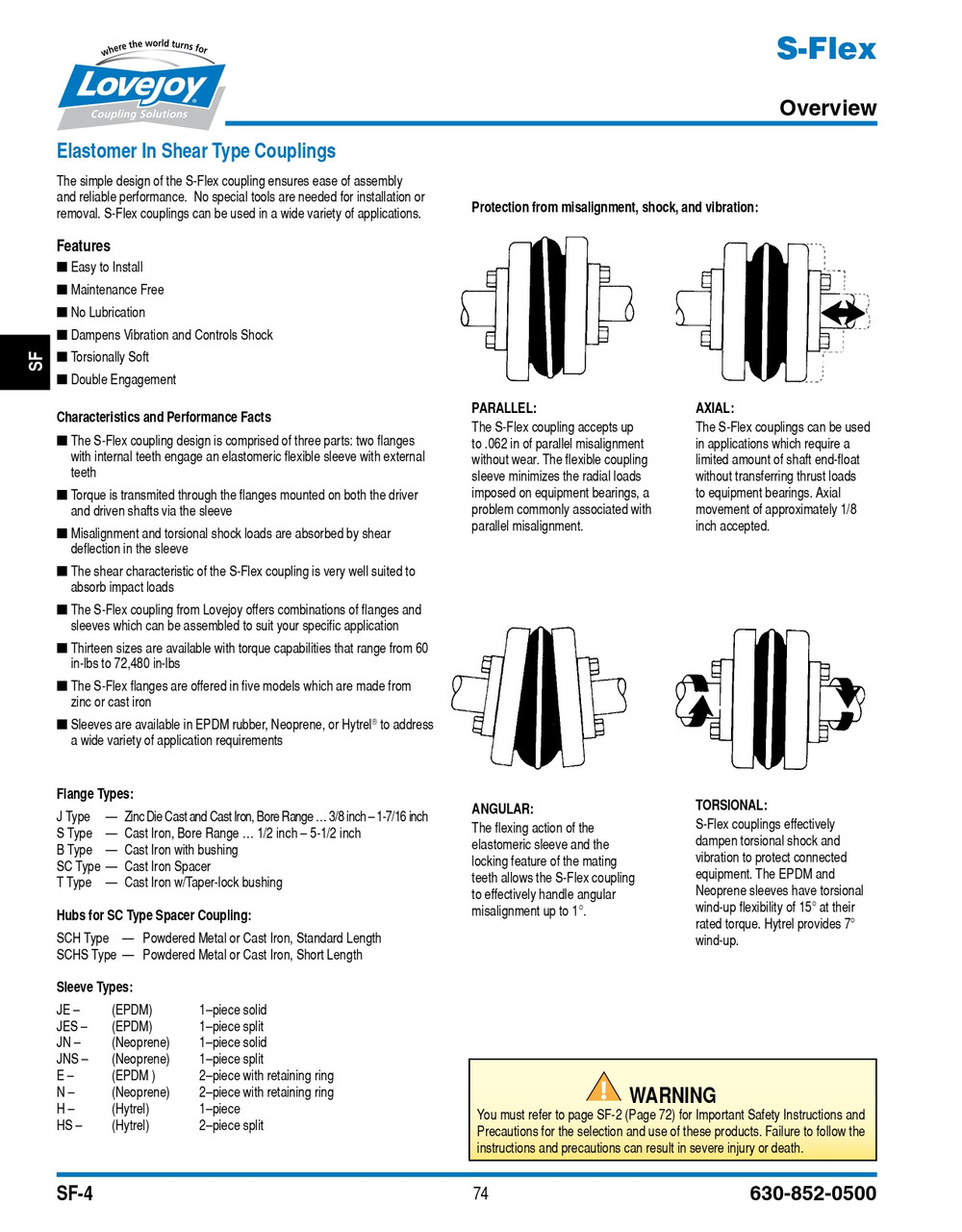

S-Flex Coupling Installation Guide

Product Videos

Custom Field

Series #9

Material Hytrel

Coupler type Sure-flex coupler
