  • 7/16" Shaft Lovejoy® MSF-32 Mini Soft Style Coupling MSF32-HUB-7/16-NKW
  • 7/16" Shaft Lovejoy® MSF-32 Mini Soft Style Coupling MSF32-HUB-7/16-NKW
  • 7/16" Shaft Lovejoy® MSF-32 Mini Soft Style Coupling MSF32-HUB-7/16-NKW
  • 7/16" Shaft Lovejoy® MSF-32 Mini Soft Style Coupling MSF32-HUB-7/16-NKW

    • 7/16" Shaft Lovejoy® MSF-32 Mini Soft Style Coupling MSF32-HUB-7/16-NKW

    Timken

    $0.00
    (No reviews yet) Write a Review
    SKU:
    TIM MSF32-HUB-7/16-NKW
    UPC:
    UPC 68514458068
    Weight:
    0.00 LBS
    Series:
    MSF-32
    Shaft diameter:
    7/16"
    Material:
    Zinc alloy
    Keyway size:
    No keyway
    Coupling type:
    Mini soft coupler

    Product Description

  • The Lovejoy Mini Soft coupling provides protection from misalignment, vibration and shock loads. The simple design of the coupling ensures ease of assembly, installation and reliable performance. No special tools are needed for installation or removal. No lubrication is needed, and once installed and aligned correctly, no maintenance is required.

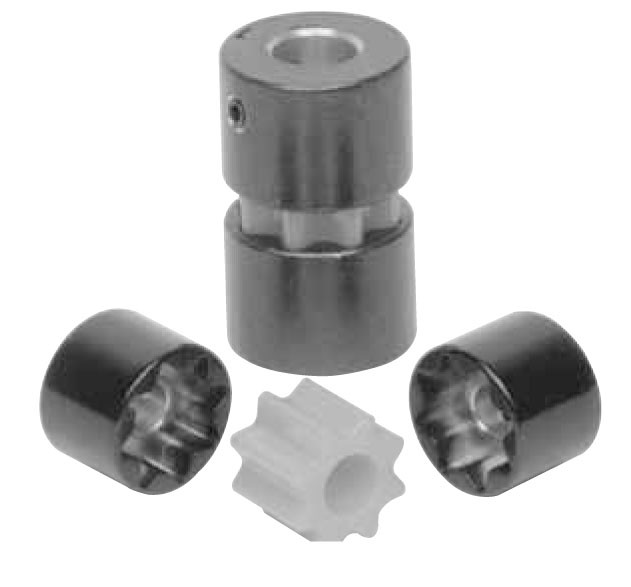

  • The Mini Soft coupling design is comprised of three parts. Two hubs with internal teeth engage an elastomeric flexible center, or sleeve, with external teeth. Misalignment and torsional shock loads are absorbed by shear deflection in the center sleeve element.
  • The shear characteristic of the coupling is very well suited to absorb impact. The Lovejoy Mini Soft coupling is designed with tooth contact which provides more surfaces carrying the load resulting in less wear at any one point, and torque that flows more smoothly. Additionally, the coupling allows for axial freedom which results in easier assembly and spacing of shafts. This feature is particularly useful in reducing thrust loads on bearings.
  • When operating within its rating, the coupling is torsionally stiff and will not react with twist during operation. The Polyurethane center member sleeve is known for its toughness and resistance to abrasion, and also provides for good damping and shock load capabilities. The MSF coupling consists of two hubs and one center member.
  • Easy blind assembly
  • Good shock load absorption
  • Good abrasion resistance
  • Zinc alloy hubs
  • Polyurethane insert
  • Nominal torque, torsional stiffness, weight and moment of inertia are based on minimum bore size.

  • Timken’s Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.
  • By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.
  • Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

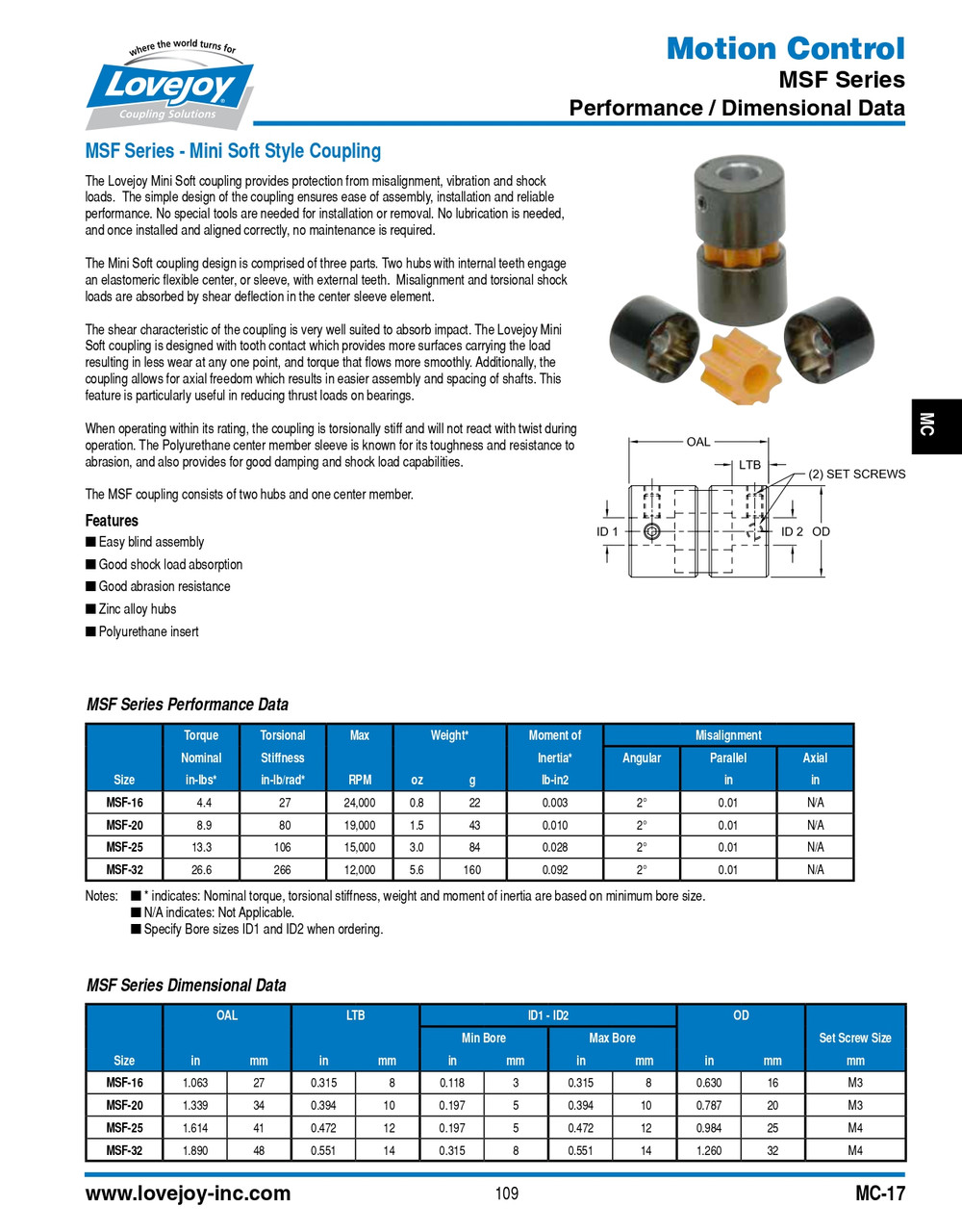

    adobepdficon.png Timken Lovejoy Master Catalog

    • Product Videos

    Custom Field

    Series MSF-32
    Shaft diameter 7/16"
    Material Zinc alloy
    Keyway size No keyway
    Coupling type Mini soft coupler
