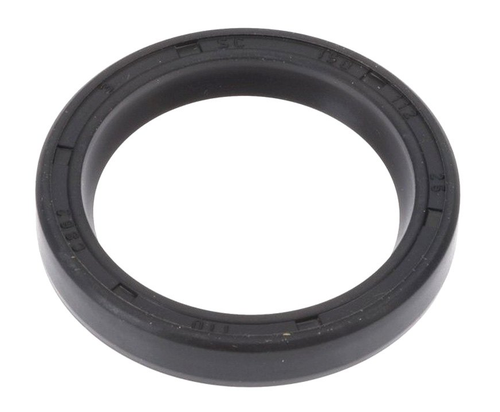

68mm Metric Rubberized Single Lip Nitrile Oil Seal 68X90X10-RLS35-S

Timken Oil Seals

$13.23

(No reviews yet) Write a Review

Single lip, spring-loaded design

Rubber cover over metallic core for an excellent combination of sealing ability and corrosion resistance

Most economical general purpose seal type

The rubber elastomer outer covering tolerates thermal expansion as well as roughness in the housing bore

Because of the rubberized covering on the seal, there will be no fretting/galvanic corrosion of the metal bore that the seal is pressed into

With only one sealing lip, this seal can either retain lubricant or exclude contaminants but cannot do both simultaneously

The nitrile seal offers good resistance to standard oils, greases, and normal fuels

This material also provides good abrasion resistance

Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.

Follow this link to access Timken's National oil seal & competitor's interchange.

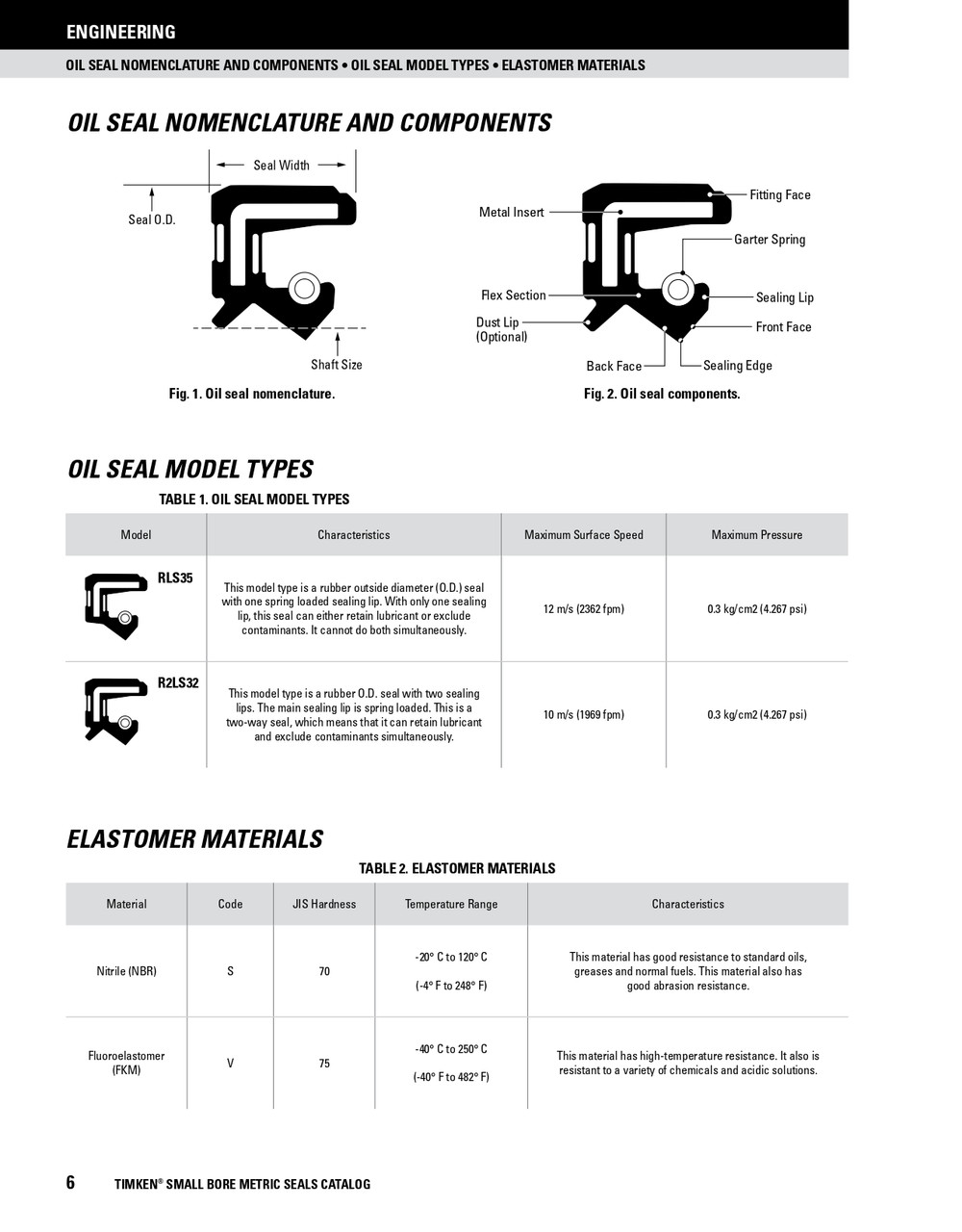

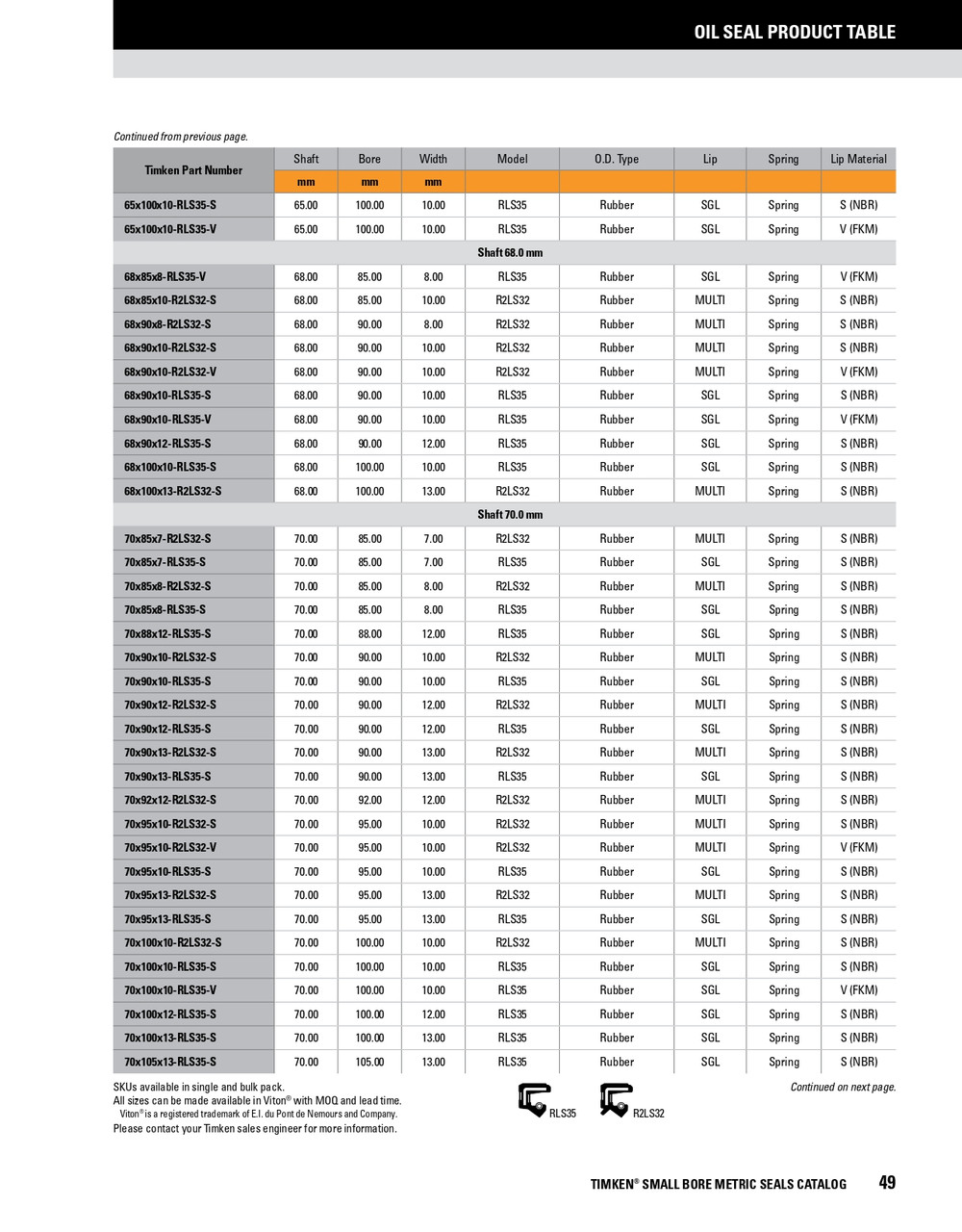

Timken Metric Oil Seal Catalog

National 7707 Inch Oil Seal Catalog & Interchange

Shaft size 68mm

Seal outer diameter 90mm

Seal width 10mm

Seal type & style RLS35 (single lip)

Lip material S (Nitrile NBR)

Hardness/Durometer 70

Spring retained Yes

Case material Rubberized metal

Maximum surface speed 12 m/s (2362 fpm)

Maximum pressure 0.3kg/cm² (4.267 psi)

Temperature range -20ºC ~ 120ºC (-4ºF ~ 248ºF)

Denoted measurement Metric
