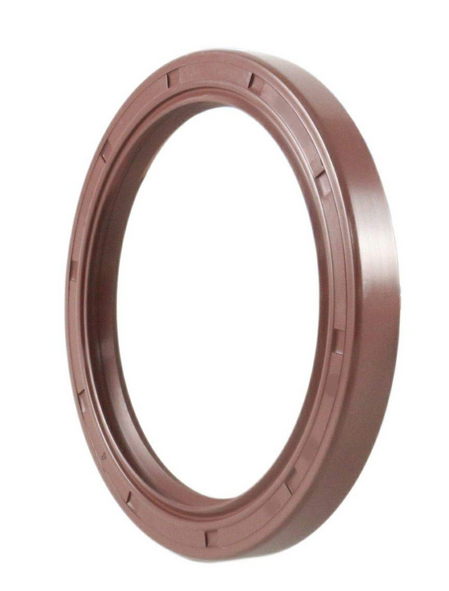

62mm Metric Rubberized Double Lip Viton Oil Seal 62X90X10-R2LS32-V

Timken Oil Seals

$59.43

(No reviews yet) Write a Review

Double lip, spring-loaded design

Rubber cover over metallic core for an excellent combination of sealing ability and corrosion resistance

The rubber elastomer outer covering tolerates thermal expansion as well as roughness in the housing bore

Because of the rubberized covering on the seal, there will be no fretting/galvanic corrosion of the metal bore that the seal is pressed into

This is a two-way seal, which means that it can retain lubricant and exclude contaminants simultaneously

The Viton seal offers high temperature resistance and is more resistant to abrasion than nitrile

Viton is also resistant to a wider variety of chemicals and acidic solutions than other seal lip materials

Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.

Follow this link to access Timken's National oil seal & competitor's interchange.

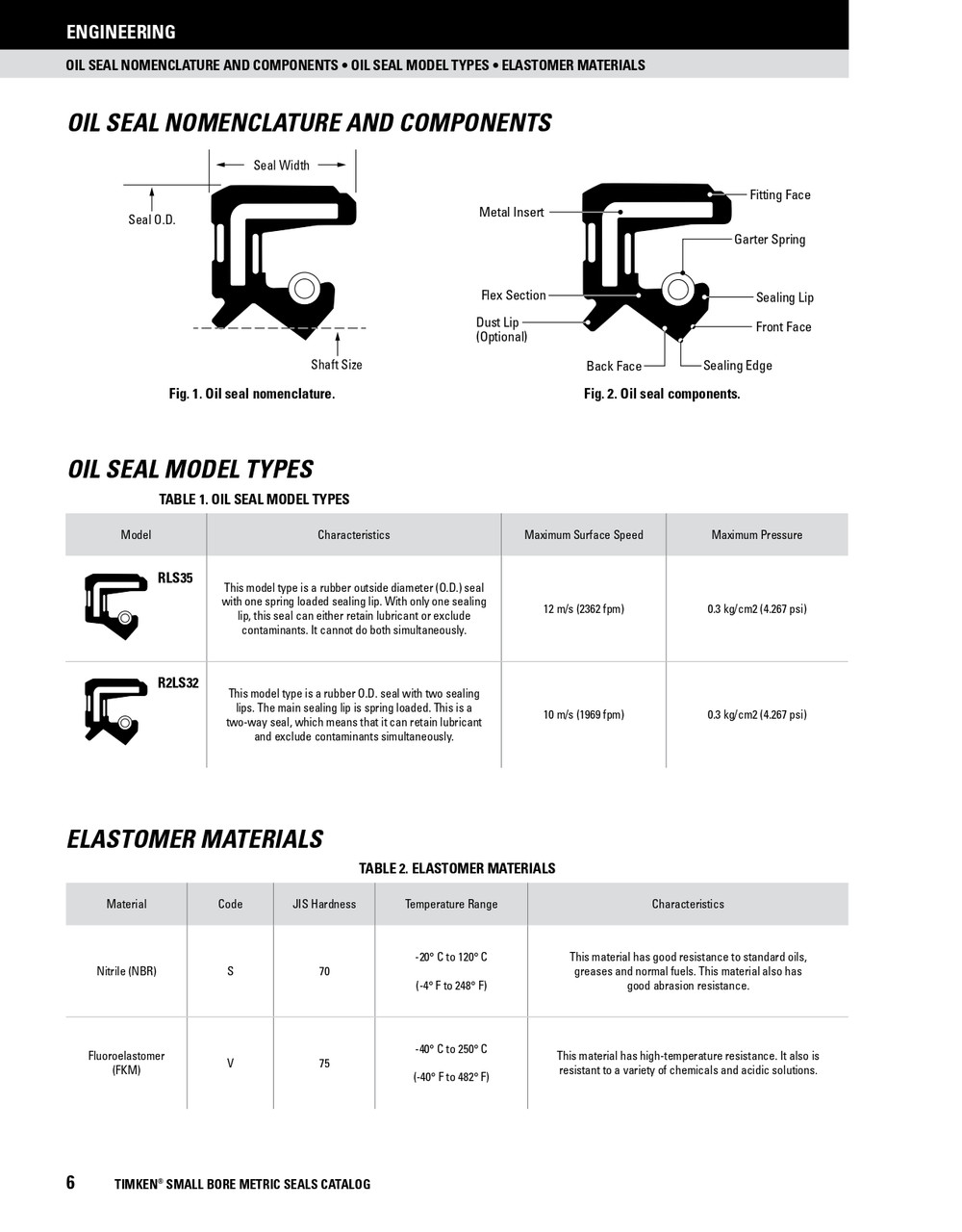

Timken Metric Oil Seal Catalog

National 7707 Inch Oil Seal Catalog & Interchange

Shaft size 62mm

Seal outer diameter 90mm

Seal width 10mm

Seal type & style R2LS35 (double lip)

Lip material V (Viton FKM)

Hardness/Durometer 75

Spring retained Yes

Case material Rubberized metal

Maximum surface speed 10 m/s (1969 fpm)

Maximum pressure 0.3kg/cm² (4.267 psi)

Temperature range -40ºC ~ 250ºC (-40ºF ~ 482ºF)

Denoted measurement Metric
