60 x 95 x 18mm Shielded Deep Groove Single Row Ball Bearing w/ Snap Ring 6012-2RZ-NR-C3

60 x 95 x 18mm Shielded Deep Groove Single Row Ball Bearing w/ Snap Ring 6012-2RZ-NR-C3

Timken

$111.73

(No reviews yet) Write a Review

SKU:: TIM 6012-2RZ-NR-C3
UPC:: UPC 013992161956
Weight:: 0.00 LBS
Clearance:: C3
Shaft size:: 60mm
Outer diameter:: 95mm
Width:: 18mm
Snap ring equipped:: Yes
Number of shields:: 2

Overview
Reviews

Product Description

Deep groove ball bearings are available in a variety of sizes. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability, and capability to run at high speeds. Timken offers deep groove ball bearings in a wide range of sizes and configurations. Offered sizes range from 3 mm to 400 mm bore, and maximum outside diameter of 600 mm.

Open bearings are typically only used in clean oil bath applications where secondary sealing methods protect the bearing from external contaminants.

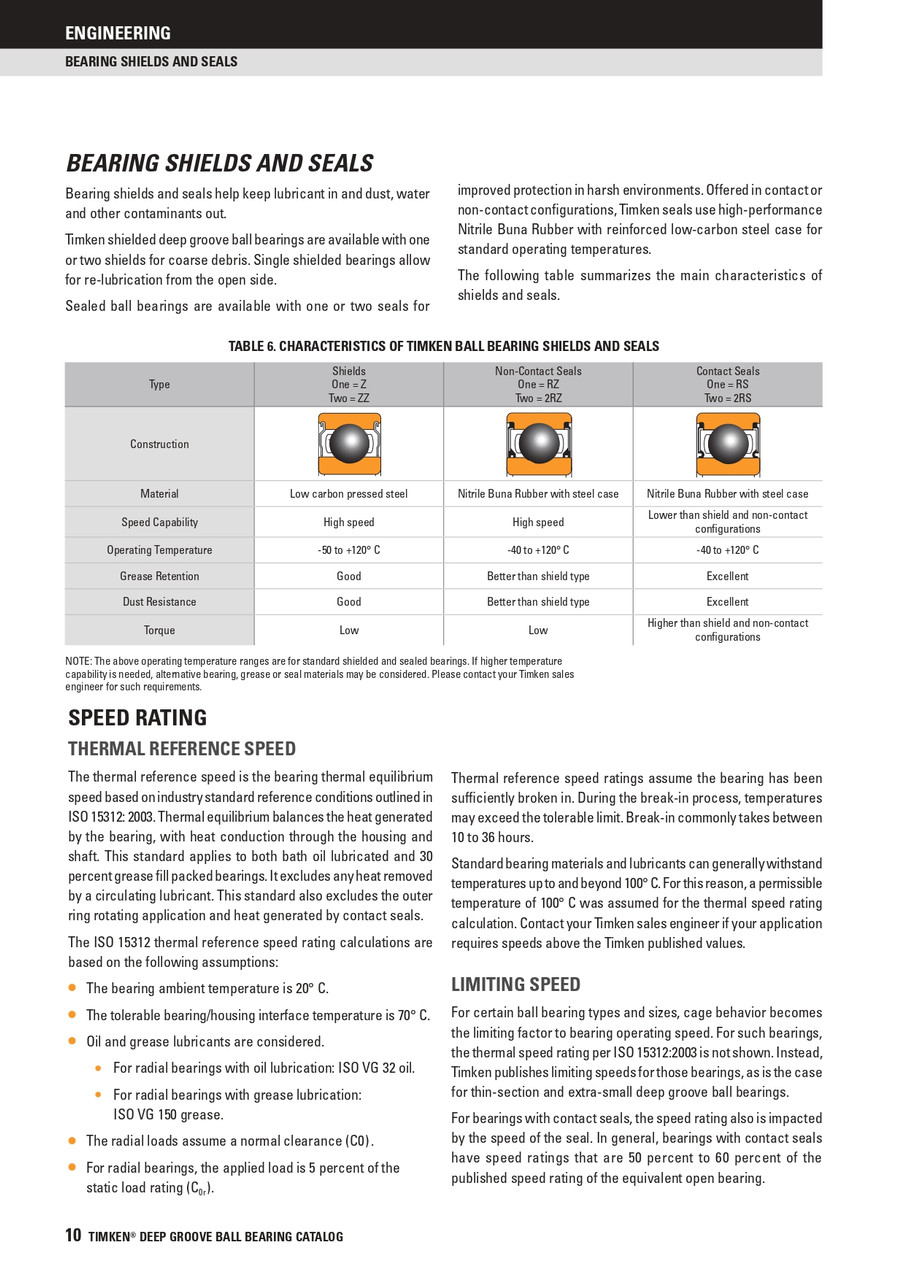

Metal shielded bearings have a small air gap between the inner race and the metal shield allowing oil to pass through to the rolling elements while protecting it from larger particles. However, this small gap can be a liability as it allows dust, dirt and moisture to pass through and contaminate the bearing; therefor they should not be selected for use in contaminated environments.

If a completely sealed environment is required, the rubber sealed type is the best suited choice as the seals lips physically contact the bearings inner race.

Open and metal shielded bearings are capable of higher RPM speeds than rubber sealed types as there is no physical contact between the bearings inner race and the metal shield.

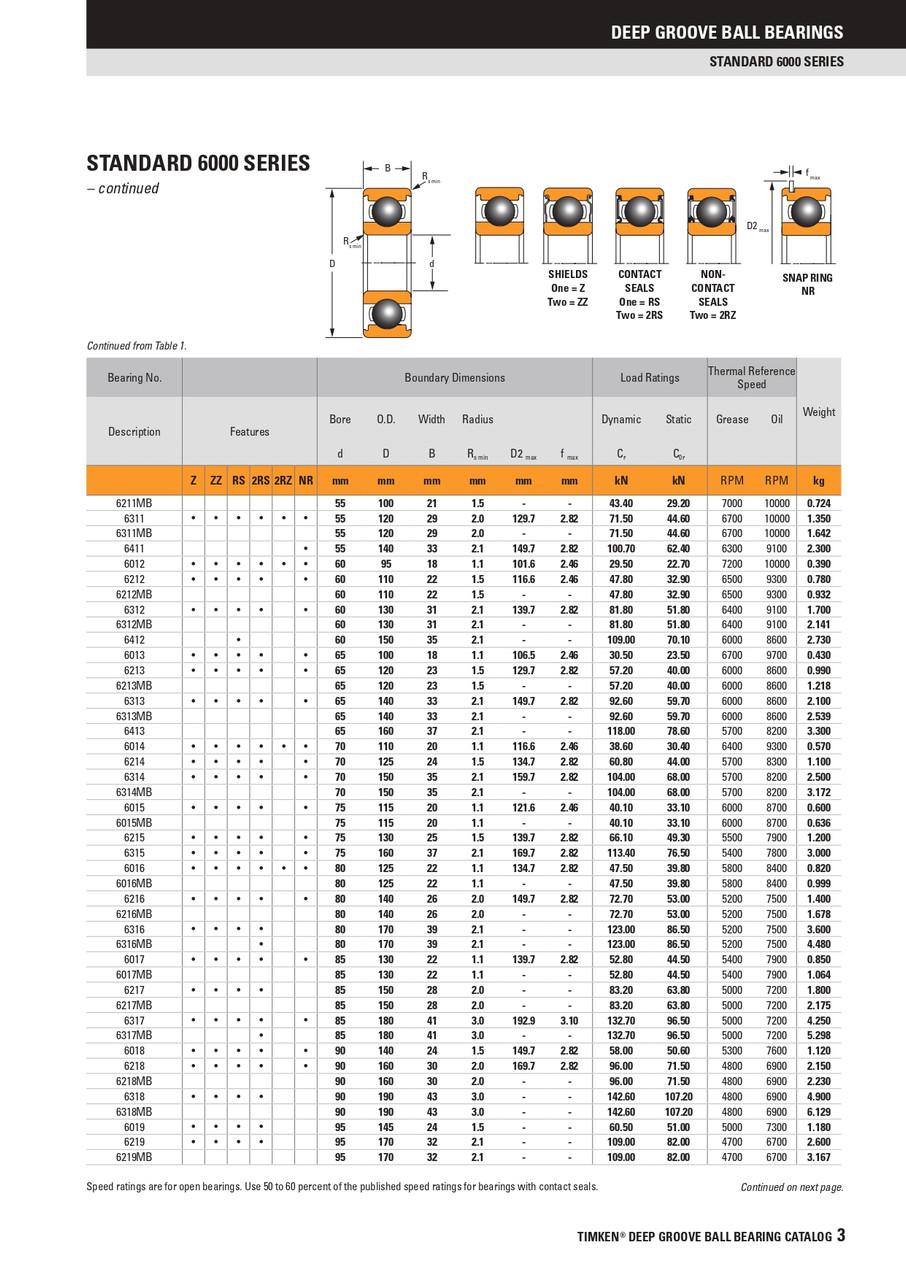

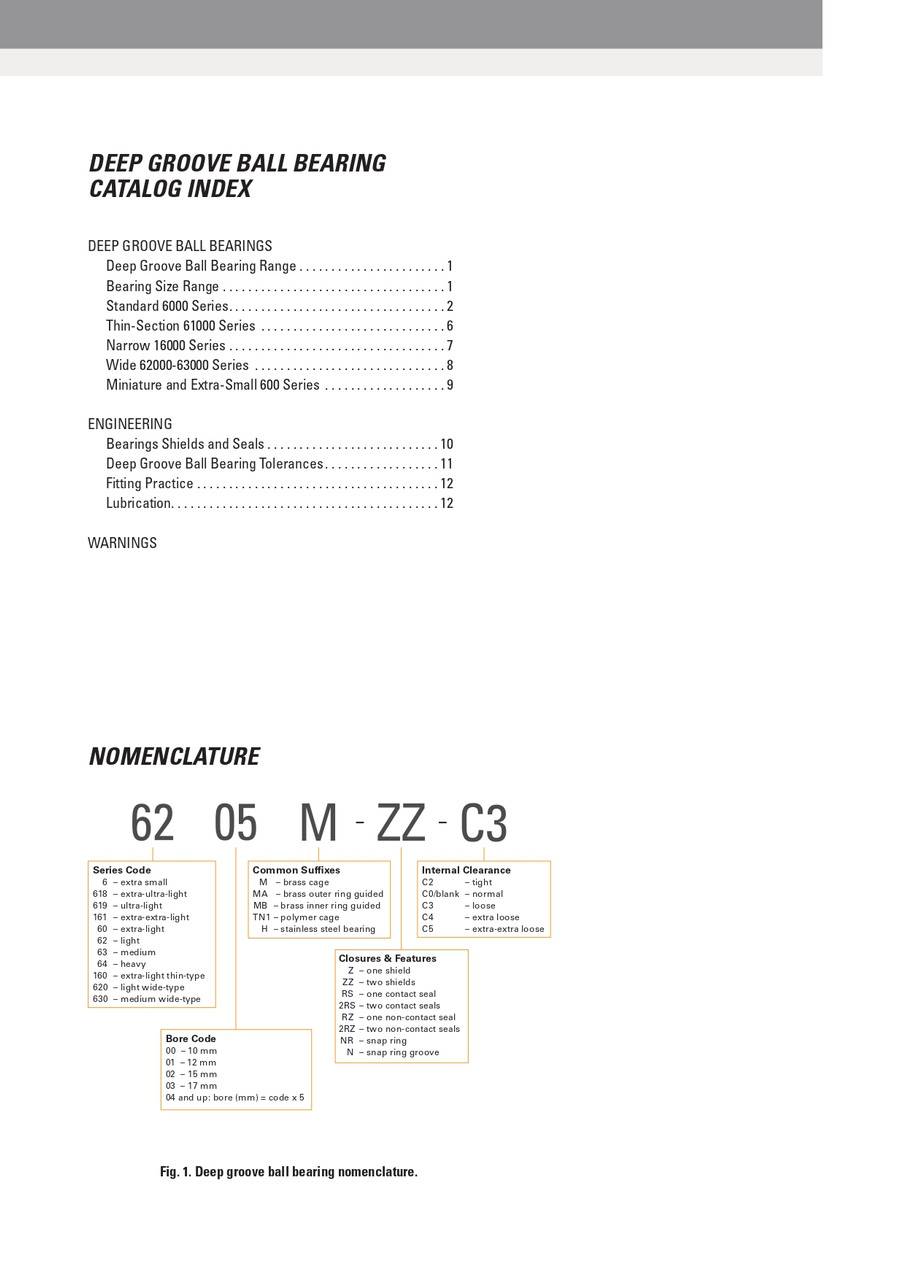

Timken Deep Groove Ball Bearing Catalog

Product Videos

Custom Field

Clearance C3

Shaft size 60mm

Outer diameter 95mm

Width 18mm

Snap ring equipped Yes

Number of shields 2
