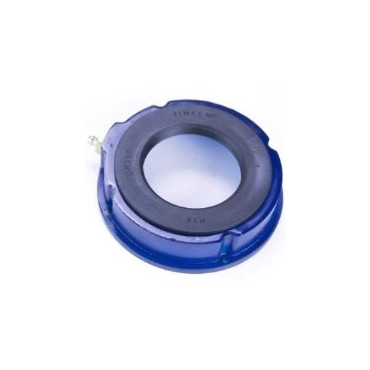

5" Timken SRB Urethane Open End Cover w/Triple Lip Nitrile Seal - TA/DV Taper Lock Bushing Type CKDR500

Overview
Reviews

Product Description

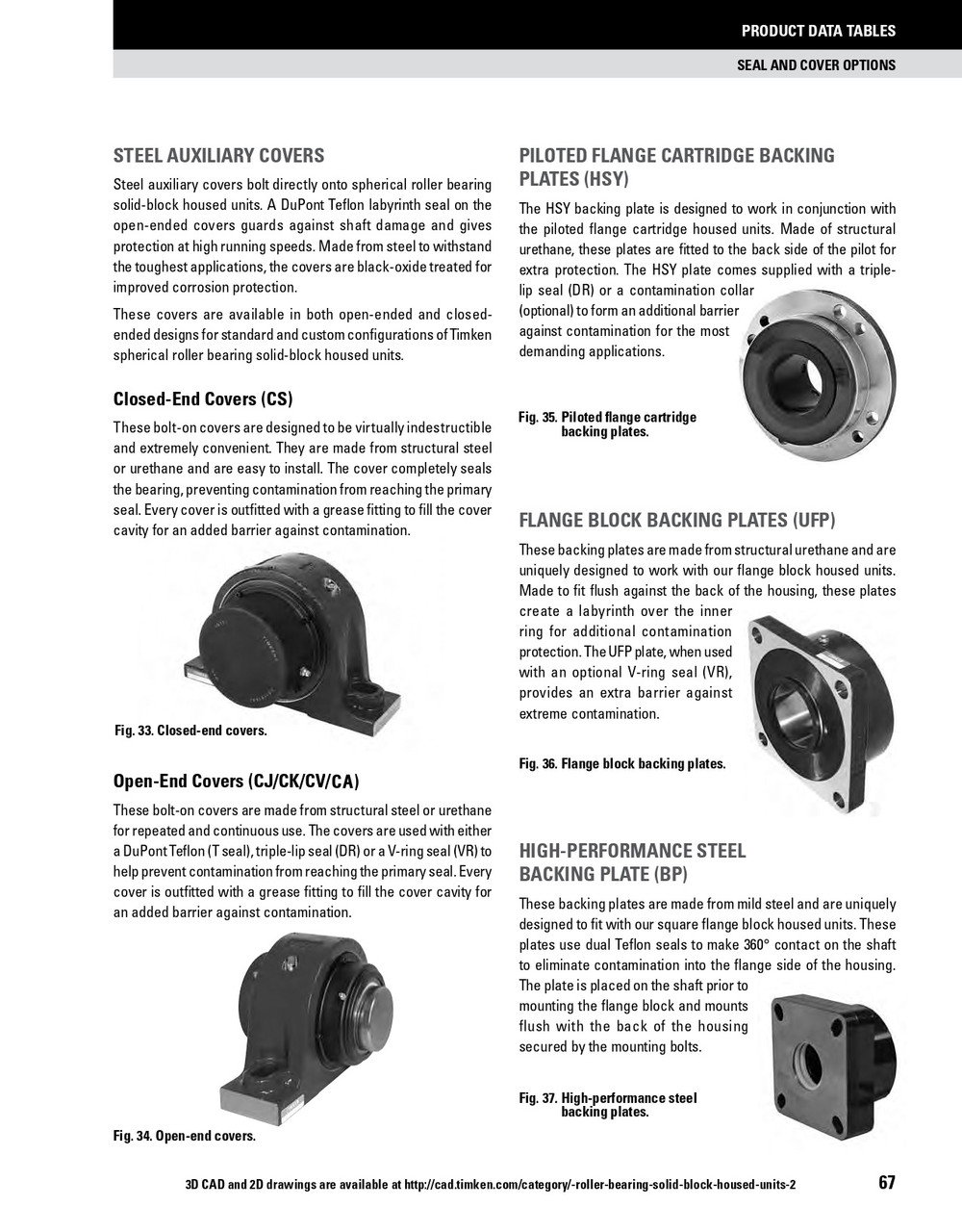

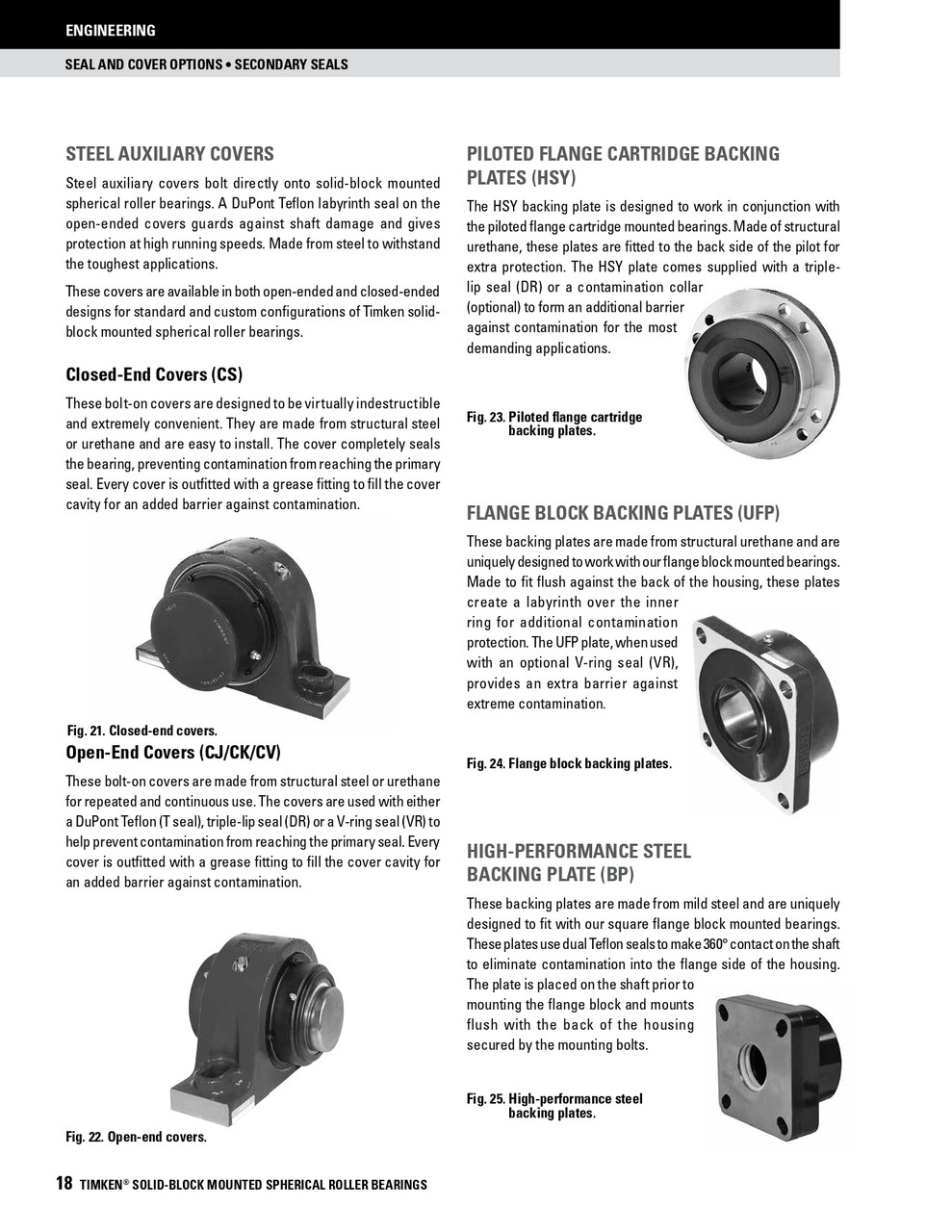

Urethane Auxiliary Bearing Block Open-Ended Covers

End covers are available in both open-ended and closed-ended styles and are designed to fit both standard and customized Timken spherical roller bearing block units

All auxiliary covers bolt directly onto the bearing block units

This bolt-on cover is made from durable urethane rubber, however steel covers are also available. The steel versions are black-oxide treated for added corrosion resistance in most instances. Nickel plating is available on certain select sizes

The CK covers are for Timken TA/DV bearing block units that employ tapered adapter shaft collars

The open-ended urethane covers can be ordered with either a DR nitrile triple lip or VR V-ring nitrile seal

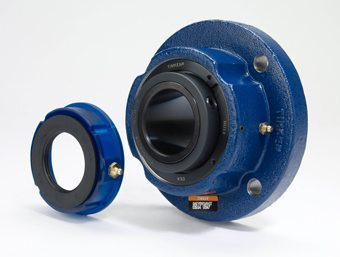

The low speed triple lip DR seal can move within the cover opening to accommodate misalignment while maintaining full contact to the shaft for positive sealing. This seal type is default on HSY backing plates

The high speed V-ring VR seal rides on two surfaces. It seals both axially and radially. This seal type is default on UFP backing plates

Every cover is outfitted with a grease fitting to fill the cover cavity with grease for an added barrier against contamination

Timken Solid Steel SRB Units

Timken stronger by design

Product Videos

Custom Field

Shaft size 5"

Housing material Urethane

Seal lip material Nitrile

Lip code DR

Fits spherical roller bearing units TA/DV

HST code 8483.90.0090
