5/8" Double Sided Hexagon Belt BB76

Name: 5/8" Double Sided Hexagon Belt BB76
Brand: D&D Global
SKU: D&D BB76
Price: 46.88 CAD
Availability: InStock

D&D Global

$46.88

(No reviews yet) Write a Review

SKU:: D&D BB76
Weight:: 1.00 LBS
Oil and heat resistant:: Yes
Material:: EPDM rubber
Static dissipating:: Yes
Construction:: Polyester cord backing
Features:: Unimatch® system
Applications:: Predominantly used in lawn & garden, agriculture, textile industry equipment

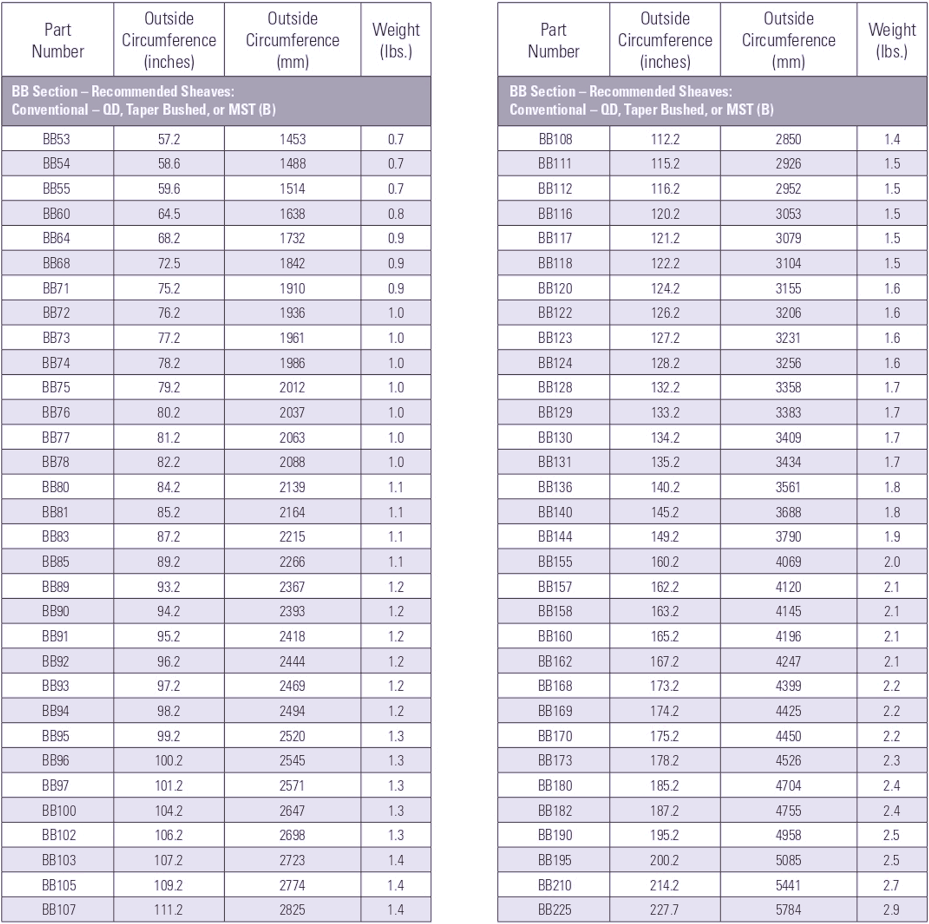

Note:: The outside diameter of "BB" belts is longer than the part number would indicate.

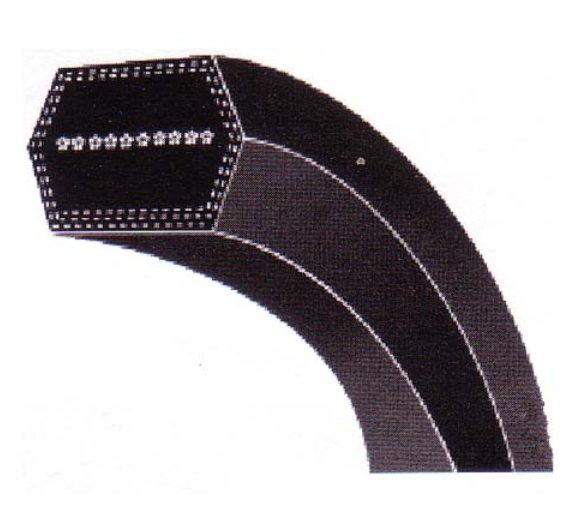

BB section double V-Belt (21/32" wide, 17/32" thick)

Specifically designed for serpentine and reversing drives

Double V-Belts transmit power from both sides of the belt

Polyester cords and a cotton/polyester cover provide maximum strength and length stability with minimum stretch

Please click this link for a convenient V-Belt and pulley calculator

D&D Global Power Transmission Catalog

Oil and heat resistant Yes

Material EPDM rubber

Static dissipating Yes

Construction Polyester cord backing

Features Unimatch® system

Applications Predominantly used in lawn & garden, agriculture, textile industry equipment

Note The outside diameter of "BB" belts is longer than the part number would indicate.
