  • 5.63" Polypropylene Single Support Clamp G6HD-9-563
  • 5.63" Polypropylene Single Support Clamp G6HD-9-563
  • 5.63" Polypropylene Single Support Clamp G6HD-9-563
  • 5.63" Polypropylene Single Support Clamp G6HD-9-563

    • 5.63" Polypropylene Single Support Clamp G6HD-9-563

    Greenline

    $177.41
    (No reviews yet) Write a Review
    SKU:
    GRN G6HD-9-563
    UPC:
    UPC 882974972220
    Weight:
    17.25 LBS
    Adding to cart… category.add_cart_announcement

    Product Description

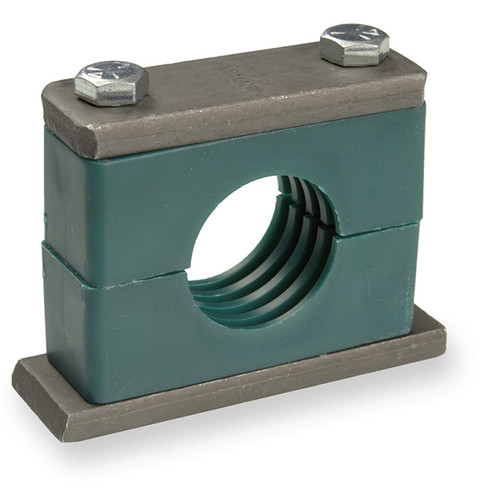

  • Pipe and tube support clamps consist of a steel weld plate, two clamp halves of green polypropylene or black nylon, and a plated steel cover plate, bolted together with hex bolts.
  • These parts conform to DIN 3015, parts 1 (standard duty single clamps), part 2 (standard duty twin clamps), and part 3 (heavy duty single clamps).
  • The green heavy duty series are mostly used in industrial applications, while the black standard series are more popular on agricultural machinery.
  • The recommended distance between supports in a piping system can be found on the catalog page and can be used to calculate the total number of clamps required.
  • At bends, clamps should be installed on both sides as close as possible to the bend.
  • The first clamp should be mounted directly adjacent to the threaded connection or coupling to protect the connection from vibration.

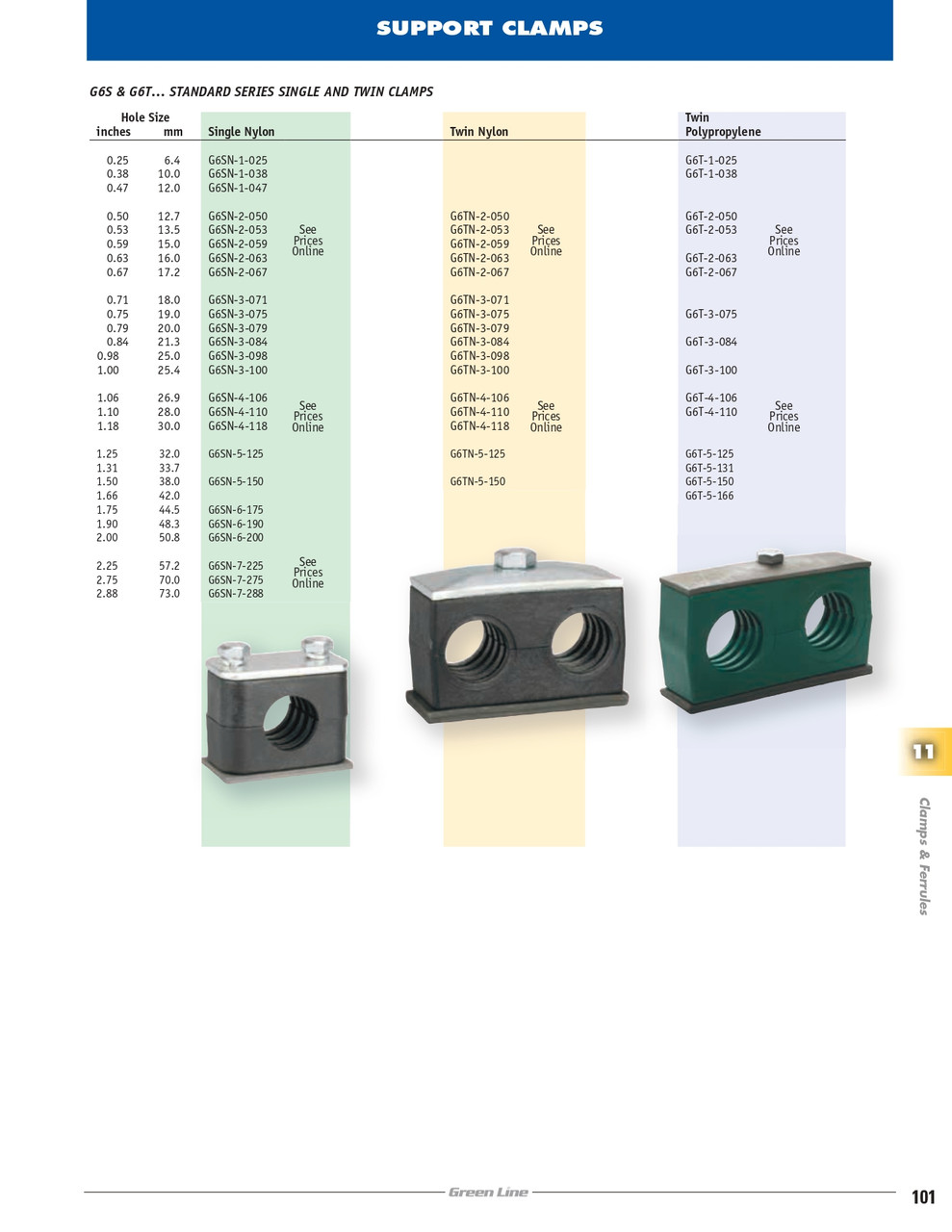

    adobepdficon.png Greenline Industrial Fitting Catalog

    adobepdficon.png New Greenline Industrial Fitting Catalog
