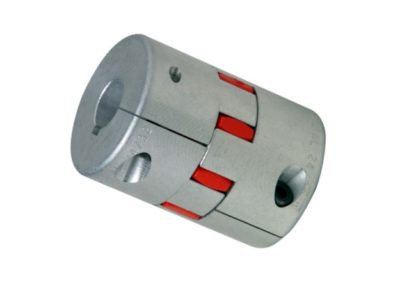

40mm Shaft Lovejoy® GS42/55 Curved Jaw Coupling Half GS42/55B-HUB-STL-40MMH7-DSC

40mm Shaft Lovejoy® GS42/55 Curved Jaw Coupling Half GS42/55B-HUB-STL-40MMH7-DSC

Timken

$1,632.12

(No reviews yet) Write a Review

SKU:: TIM GS42/55B-HUB-STL-40MMH7-DSC
UPC:: UPC 0685144756190
Weight:: 5.46 LBS
Series:: GS42/55
Shaft diameter:: 40mm
Material:: Steel
Keyway size:: No keyway
Coupling type:: Clamping hub (DSC)

Overview
Reviews

Product Description

Measurement and Control Systems: The torsional stiffness of the GS Series coupling provides zero backlashes needed for the accuracy for measurement and control systems. The low torques of these applications give the GS Series the ability to provide zero backlashes due to the elastomeric pre-stress.

Servo and Positioning Drives: The GS Series provides a zero backlash, flexible connection for servo and positioning drives. An added benefit of the GS Series is its damping capabilities. For applications that have vibrations at critical speeds, the GS Series coupling can provide a zero backlash solution for vibration problems.

Main Spindle Drives: The GS Series coupling is used in main spindle drives for machine tools. Torque spikes and cyclical loading are handled by the GS Series by damping or by shifting the vibratory frequency range to a non-critical speed range.

The GS Series can be used in a variety of different applications requiring precision and accuracy.

The GS Series spider features a straight center of the spider tooth, providing higher stiffness due to coupling prestress. The crowning of the ends of the spider legs allows for misalignment, while the curved jaws and solid spider

Simple 3 piece jaw design

Aluminum and steel material hubs

Clamping and locking device hubs available

Four different types of urethane shores to choose from

Timkens Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.

By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.

Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

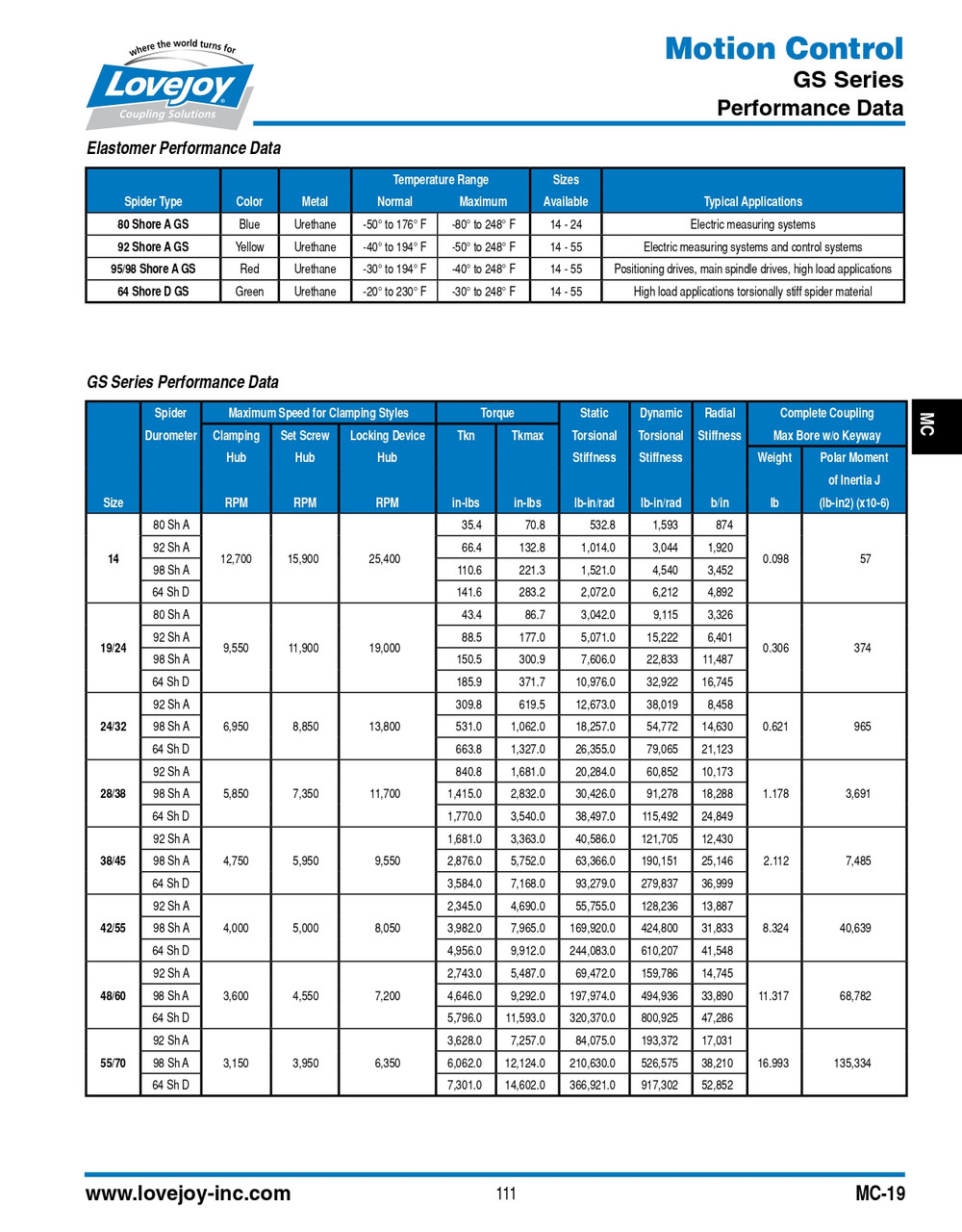

Timken Lovejoy Master Catalog

Curved Jaw GS Coupling Installation Guide

Product Videos

Custom Field

Series GS42/55

Shaft diameter 40mm

Material Steel

Keyway size No keyway

Coupling type Clamping hub (DSC)
