4.625" (117.48mm) Shaft Seal Repair Sleeve 99465

Overview
Reviews

Product Description

Cost Effective:

Speedi-sleeves are precision formed stainless steel wear sleeves designed to prolong the life of damaged shafts and yokes by providing a new sealing surface that is superior to most original finishes and materials

Oil seals over time cut fine grooves into shafts due to factors such as dirt, heat, excessive water, lack of lubrication and high shaft speed rotation

Speedi-sleeves offer a cost effective alternative to resizing, metalizing, spray welding or replacing severely damaged surfaces

The sleeves low profile design means that the original oil seals dimensions can continue to be used without any shaft rework or machining

Please note that there are higher performance Gold Speedi-Sleeves with Rockwell HRC80 hardness available for special order that are not listed in this database

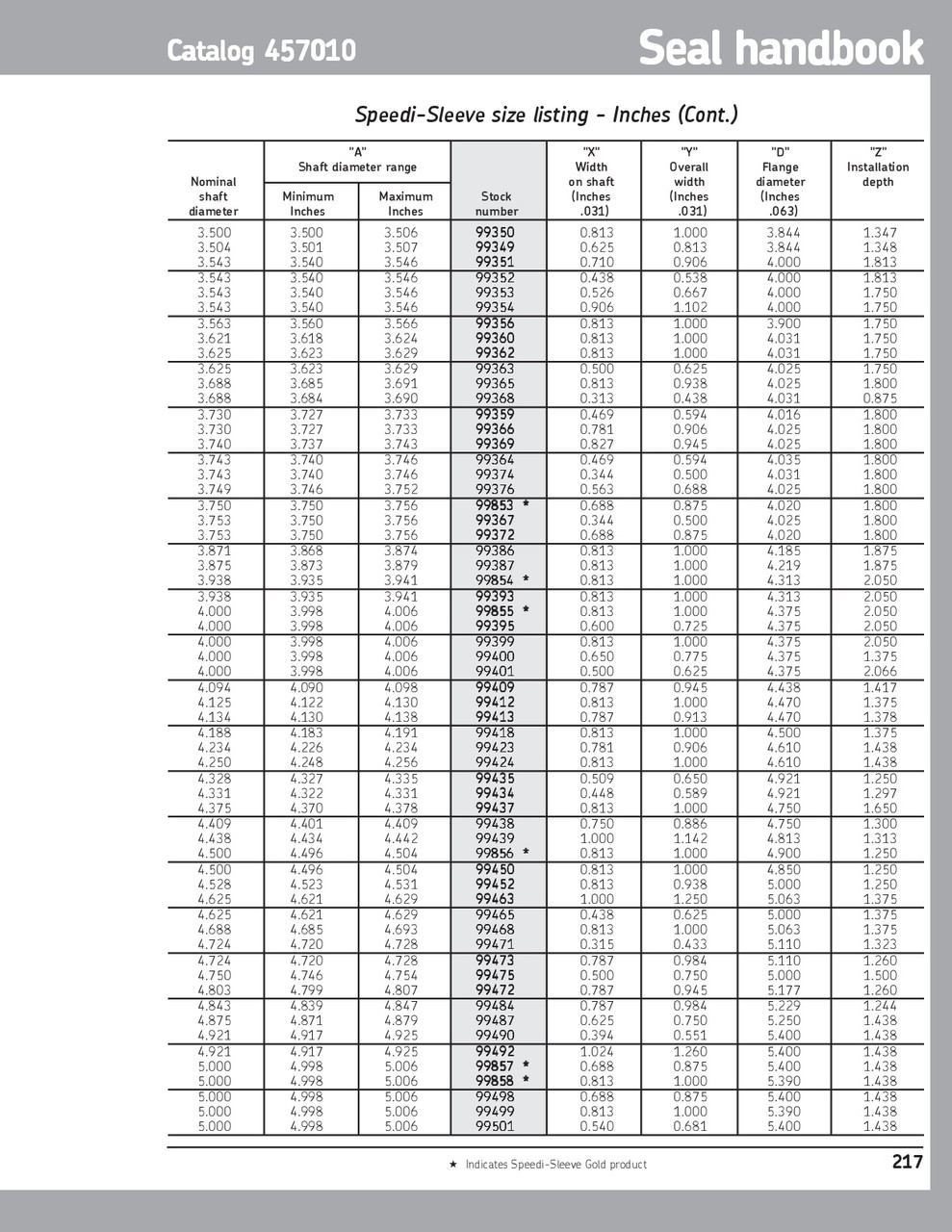

Please refer to the attached dimensional charts for exact specifications and min-max tolerances conveniently provided in both inch and metric increments

SKF Speedi-Sleeves

SKF Seals Handbook 457010

Product Videos

Custom Field

Shaft fit range 4.625"

Shaft fit range 117.48mm

Material Stainless steel

Removable installation flange Yes
