Product Description

IKO® shell type needle roller bearings are lightweight bearings with large load ratings. They employ a shell type outer ring made from a thin special-steel plate which is accurately drawn, carburized and quenched, thus providing the lowest sectional height among the needle roller bearings. There are two types of bearings available in this series; the caged type and the full complement type. The appropriate type can be selected according to the operating conditions. The caged type has a structure in which the needle rollers are accurately guided by the cage and thrust rings. It is useful for applications at high-speed rotation. The full complement type needle roller bearing, on the other hand, is suitable for heavy-load applications at low-speed rotation. Since these bearings are press-fitted into the housing, no fixtures for axial positioning are needed. They are ideal for use in mass-produced articles that require economy, and have a wide variety of applications.

IKO Catalog

Product Videos

Custom Field

Inner diameter 37mm

Outer diameter 47mm

Width 20mm

Closed end Yes

Series Metric

Product Reviews

Write a Review

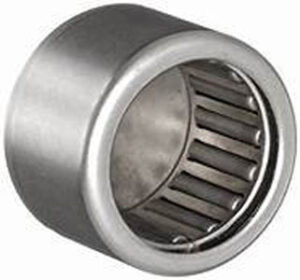

37 x 47 x 20mm Heavy Closed End Drawn Cup Needle Roller Bearing TAM 3720

IKO
