Product Description

IKO® inner rings are heat-treated and finished by grinding to a high degree of accuracy. In the case of needle roller bearings, normally, the shafts are heat-treated and finished by grinding, and used as the raceway surfaces. However, when it is impossible to make shaft surfaces according to the specified surface hardness or surface roughness, inner rings are used. Inner rings include those for shell type needle roller bearings and those for general use and are available in a variety of dimensions. When shafts move axially or seals are used adjacent to bearings, wide inner rings can be selected. Inner rings can also be used economically as bushings without requiring any additional machining.

IKO Catalog

Product Videos

Custom Field

Inner diameter 35mm

Outer diameter 40mm

Width 40.5mm

Series Metric

Product Reviews

Write a Review

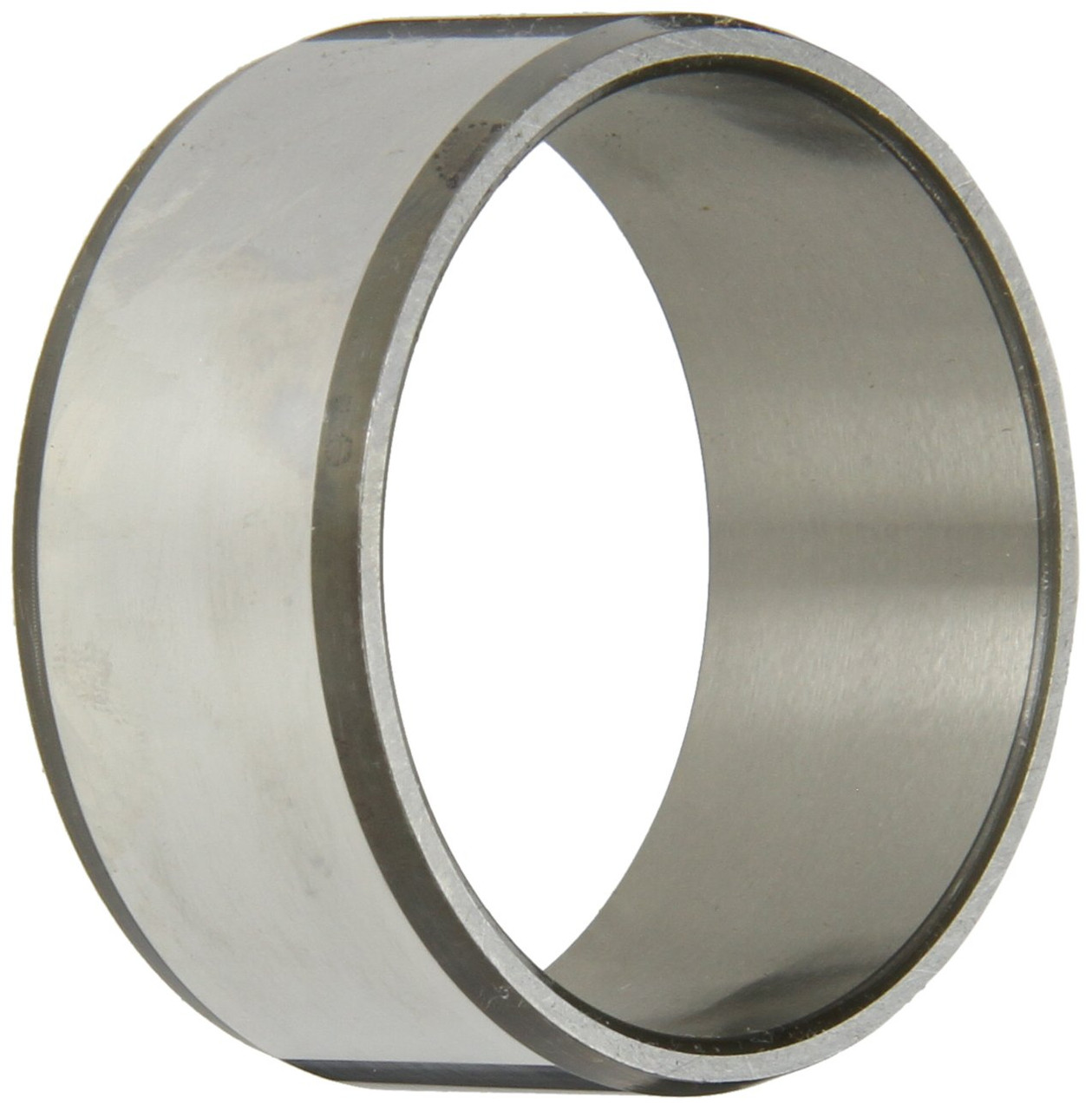

35 x 40 x 40.5mm Drawn Cup Needle Bearing Inner Ring IRT 3540

IKO
