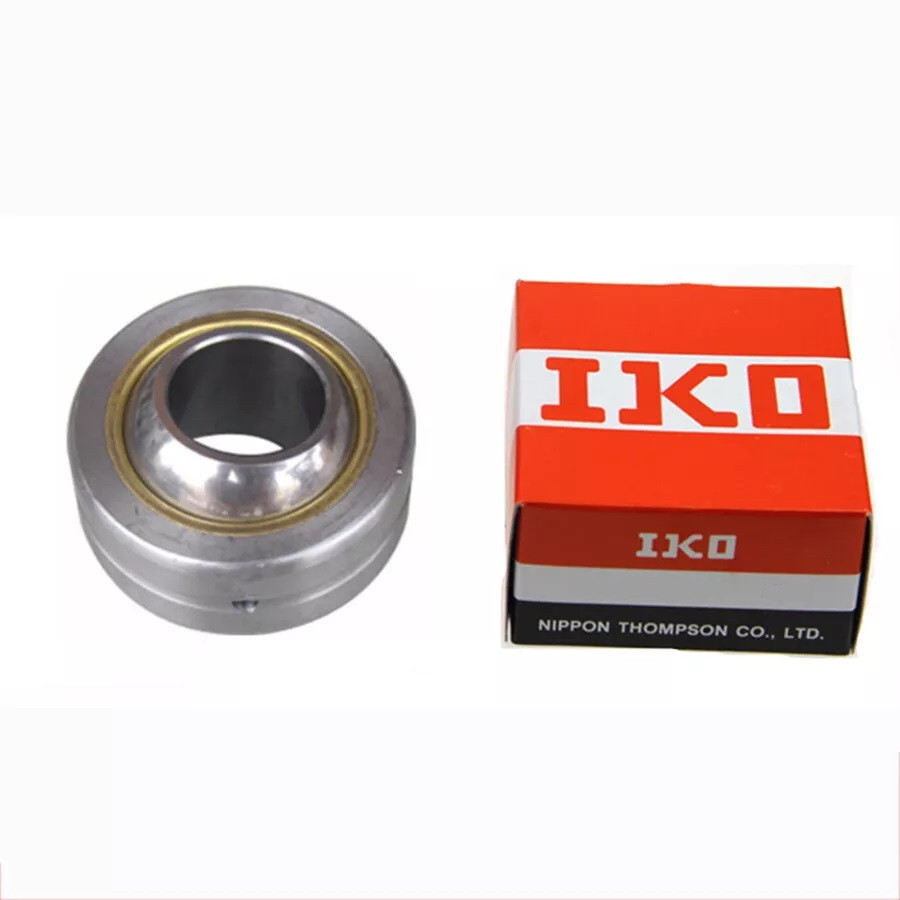

30mm Pilloball® Metric Spherical Bushing PB 30

30mm Pilloball® Metric Spherical Bushing PB 30

IKO

$209.76

(No reviews yet) Write a Review

SKU:: IKO PB 30
Weight:: 0.00 LBS
Inner diameter:: 30mm
Outer diameter:: 66mm
C dimension:: 25mm
B dimension:: 37mm
Sealed:: No
Series:: Metric

Overview
Reviews

Product Description

IKO® PILLOBALLs are compact self-aligning spherical bushings that can support a large radial load and a bidirectional axial load at the same time. These bushings are classified by sliding surface types, namely, insert type, die-cast type and maintenance-free type. In the insert type, a spherical inner ring makes contact with the special copper alloy bushing with superior run-in properties. In the die-cast type, a spherical inner ring makes direct contact with the bore surface of the body of special zinc die-cast alloy. In the maintenance-free type, a spherical inner ring makes contact with the special PTFE liner of maintenance-free type. Thus, a smooth rotational and oscillatory motion can be achieved with superior anti-wear and loading properties in each type. PILLOBALL Rod Ends have either a female thread in the body or a male thread on the body, and they can be easily assembled onto machines. PILLOBALLs are used in control and link mechanisms in machine tools, textile machines, packaging machines, etc. The maintenance-free type is especially suitable for loading in one direction and is the best choice for machines in which oil must be avoided such as food processing machines, or machines which cannot be re-lubricated.

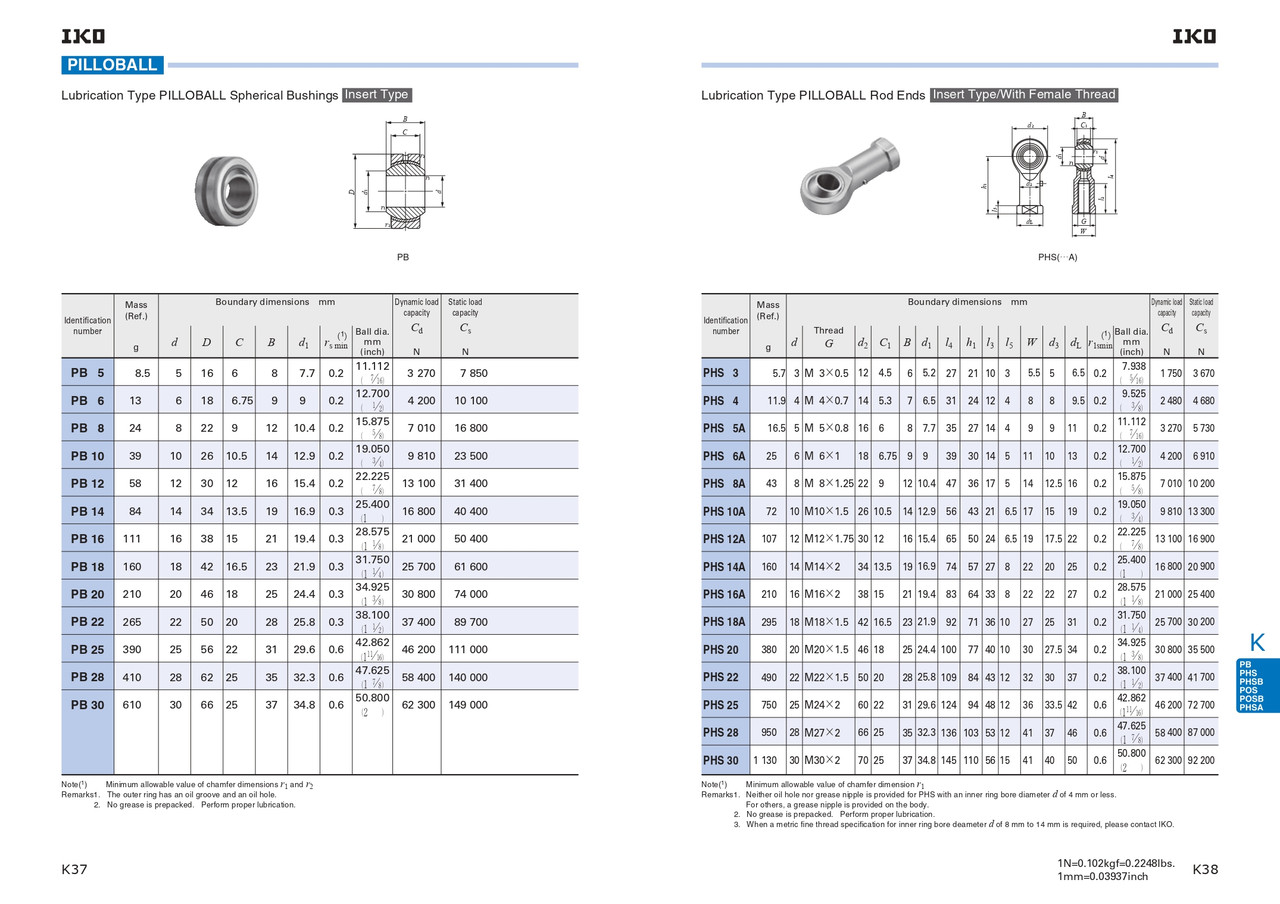

IKO Catalog

Product Videos

Custom Field

Inner diameter 30mm

Outer diameter 66mm

C dimension 25mm

B dimension 37mm

Sealed No

Series Metric
