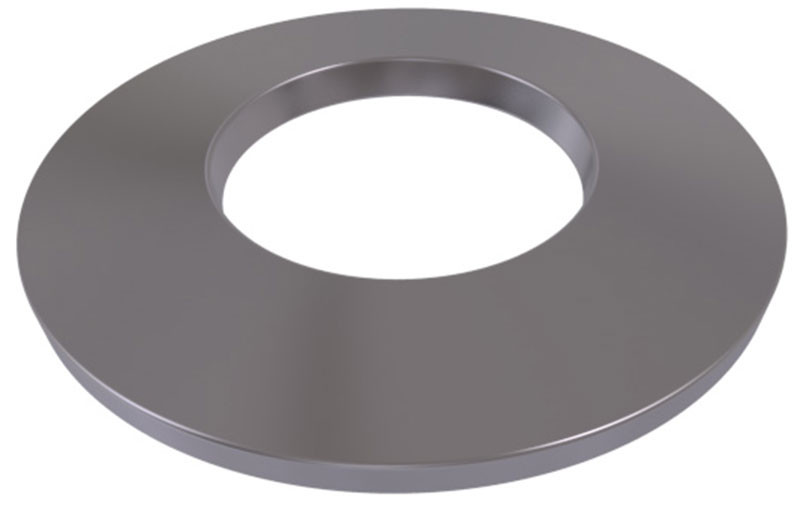

30mm Disc Spring (DIN 2093) Conical Washer DS030.5-070-03

DMR

$0.00

(No reviews yet) Write a Review

The standard product range of DIN 2093 (Group 1, Group 2, Group 3) disc springs includes 246 sizes with outside diameters between 3.00 ~ 250.00 mm

These springs are manufactured from Ck67 and 50CrV4 graded steel material, and are typically available from stock

Disc springs with a thickness of 0.50 mm and greater are shot-peened to improve fatigue life

The standard corrosion protection is black phosphating and oiling (other coatings are available)

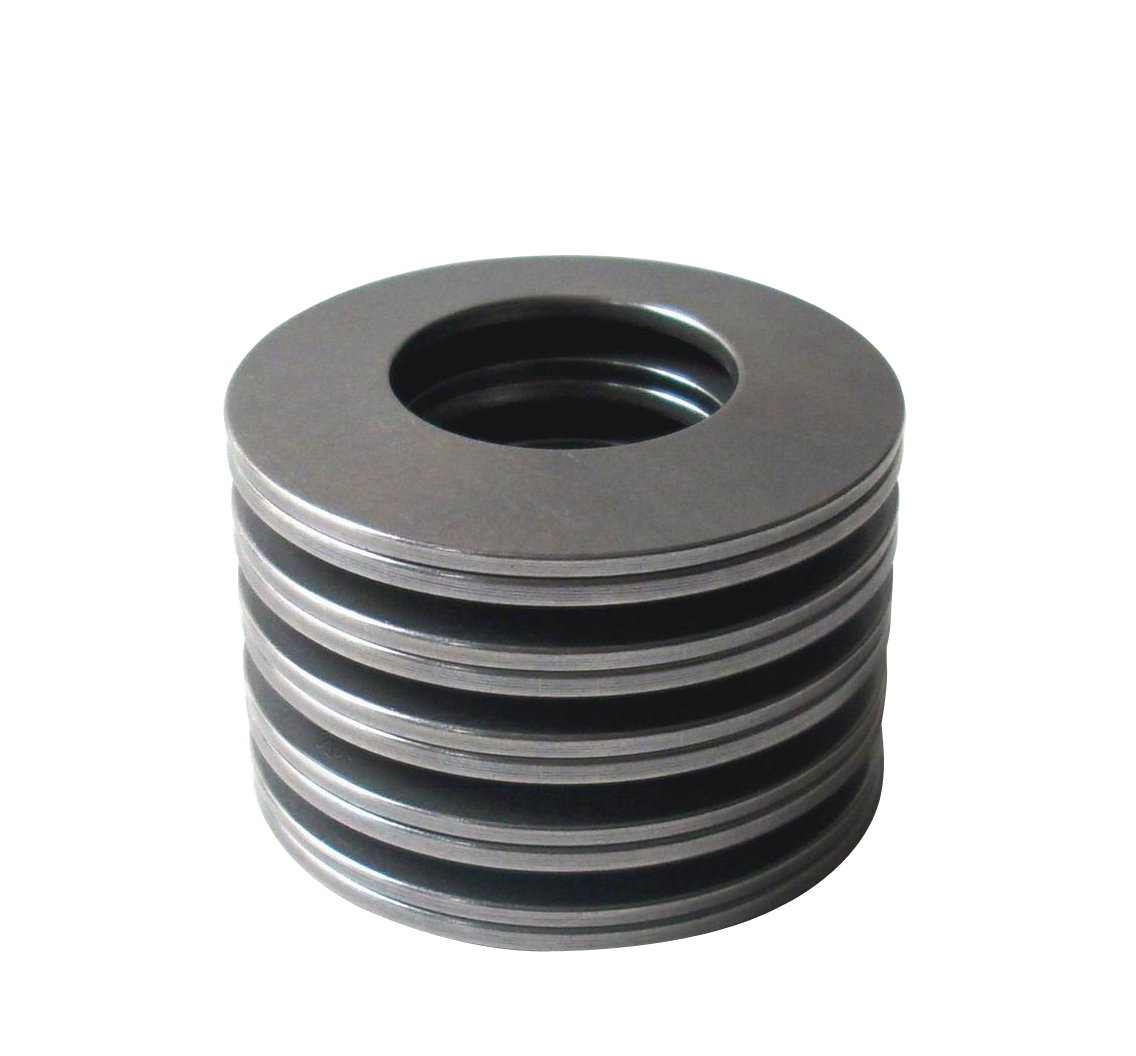

DMR Disc Spring & Belleville Washers

Bolt Diameter 30.00 mm

Outer Diameter (OD) 70.00 mm

Inner Diameter (ID) 30.50 mm

Thickness (t) 3.00 mm

Overall Height (h) 5.10 mm
