  • 3/8" x 328' Yellow Single Wall General Purpose 2:1 Shrink Tube 8322-7-27
  • 3/8" x 328' Yellow Single Wall General Purpose 2:1 Shrink Tube 8322-7-27
  • 3/8" x 328' Yellow Single Wall General Purpose 2:1 Shrink Tube 8322-7-27
  • 3/8" x 328' Yellow Single Wall General Purpose 2:1 Shrink Tube 8322-7-27

    • 3/8" x 328' Yellow Single Wall General Purpose 2:1 Shrink Tube 8322-7-27

    PICO

    $248.97
    (No reviews yet) Write a Review
    SKU:
    PIC 8322-7-27
    UPC:
    UPC 776479595728
    Weight:
    3.10 LBS
    Width:
    18.00 (in)
    Height:
    2.00 (in)
    Depth:
    18.00 (in)
    Package quantity:
    328' Spool
    Shrink ratio:
    2:1
    Shrink temperature:
    90°C
    Temperature rating:
    -55°C ~ 135°C
    Shrink material:
    Polyolefin
    Certification:
    SAE AMS-DTL-23053/5, Class 1 & 159
    Adding to cart… category.add_cart_announcement

    Product Description

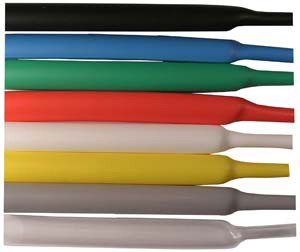

  • Flexible, flame retardant, general purpose, polyolefin heat shrinkable tubing is designed to provide superior mechanical, thermal & fluid performance
  • It is used extensively in military & industrial applications for lightweight harness jackets, insulation, colour coding & identification of electrical connections and wire bundles

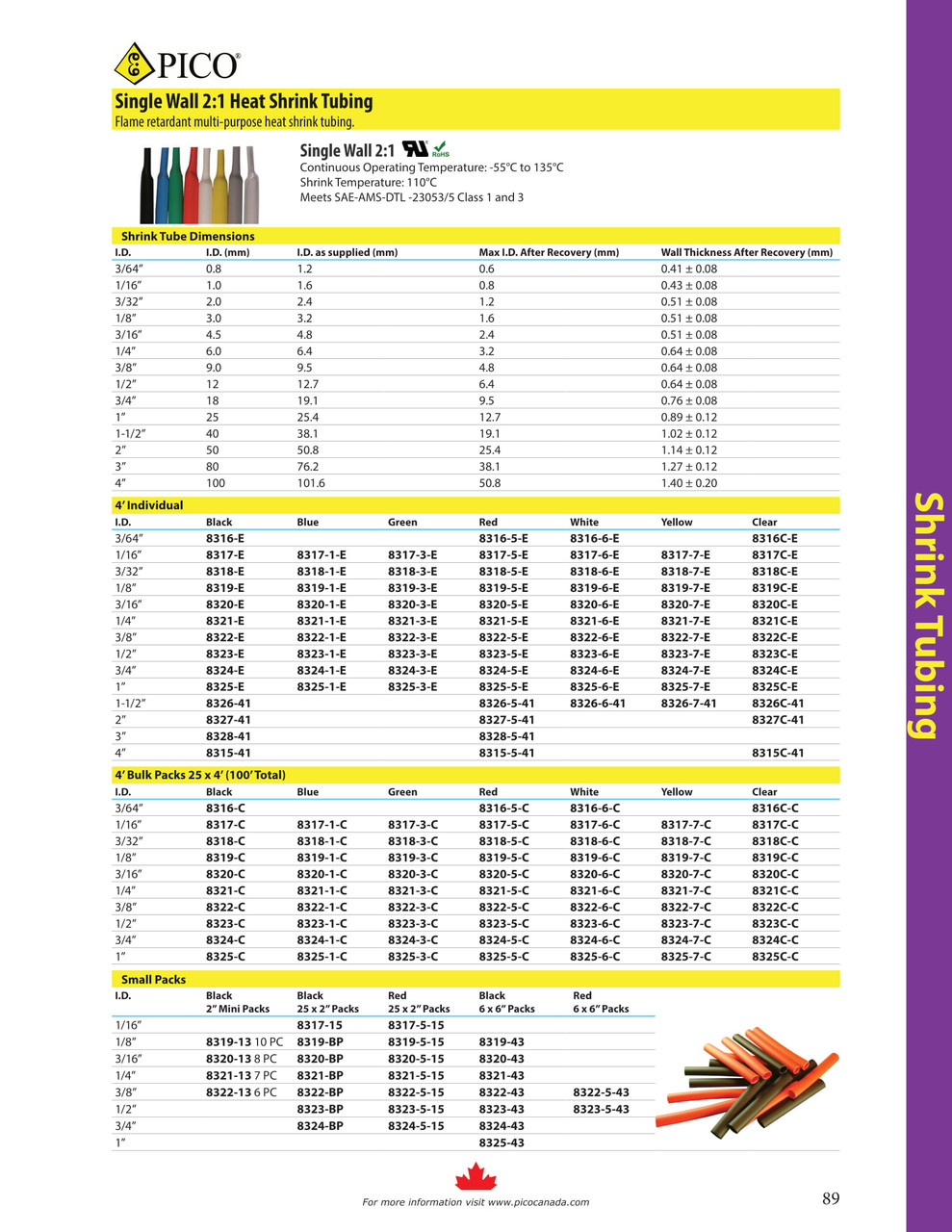

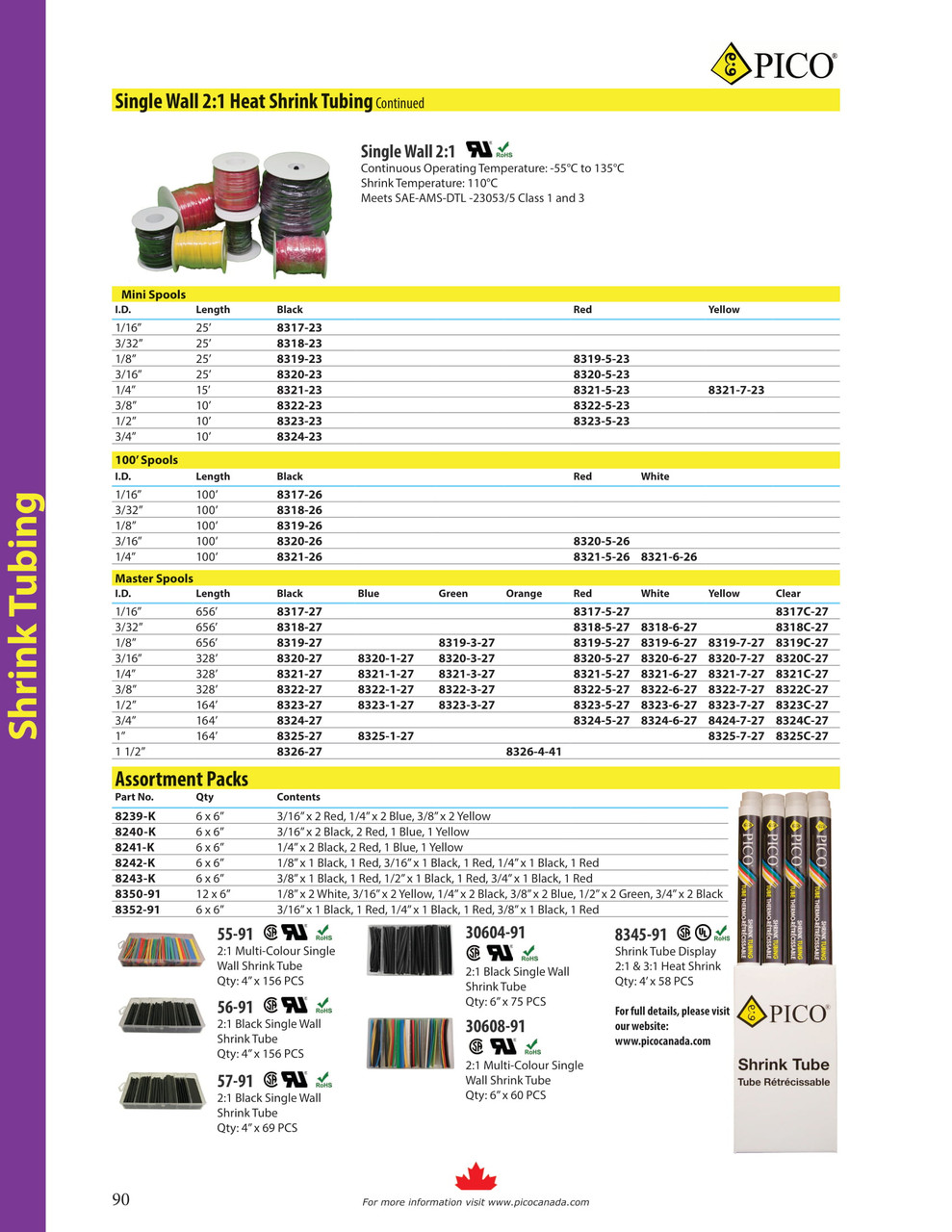

    Please be aware when referencing the supplied Pico catalog that certain features may have been changed or upgraded (i.e. Temperature rating) on currently shown product since its original publication. In addition, there are also new items now available from Pico that were not included in this catalog when it went to print. You will notice these newer items by the lack of an attached catalog page in the image carousel

    adobepdficon.png Pico 2018 General Catalog

    • Product Videos

    Custom Field

    Package quantity 328' Spool
    Shrink ratio 2:1
    Shrink temperature 90°C
    Temperature rating -55°C ~ 135°C
    Shrink material Polyolefin
    Certification SAE AMS-DTL-23053/5, Class 1 & 159
