  • 3/8 x 1/2" Shaft Lovejoy® ES112 Single Beam Set Screw Coupling ES112-BEAM CP-3/8X1/2
  • 3/8 x 1/2" Shaft Lovejoy® ES112 Single Beam Set Screw Coupling ES112-BEAM CP-3/8X1/2
  • 3/8 x 1/2" Shaft Lovejoy® ES112 Single Beam Set Screw Coupling ES112-BEAM CP-3/8X1/2
  • 3/8 x 1/2" Shaft Lovejoy® ES112 Single Beam Set Screw Coupling ES112-BEAM CP-3/8X1/2

    • 3/8 x 1/2" Shaft Lovejoy® ES112 Single Beam Set Screw Coupling ES112-BEAM CP-3/8X1/2

    Timken

    $278.10
    (No reviews yet) Write a Review
    SKU:
    TIM ES112-BEAM CP-3/8X1/2
    UPC:
    UPC 0685144566485
    Weight:
    0.09 LBS
    Series:
    ES112
    Shaft diameter:
    3/8 x 1/2"
    Material:
    Aluminum
    Keyway size:
    No keyway
    Coupling type:
    Single beam coupler
    Adding to cart… category.add_cart_announcement

    Product Description

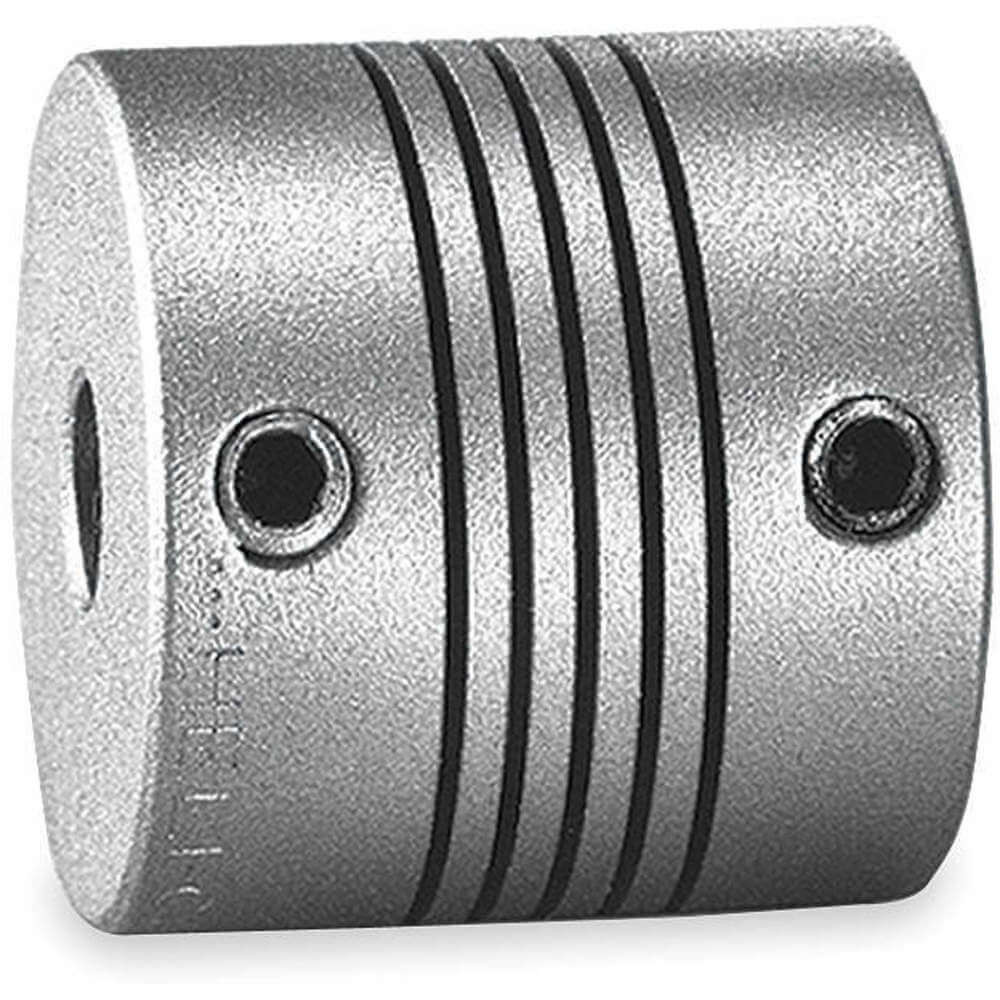

  • The Beam flexible coupling is formed from one piece of aluminum rod. A spiral slot is cut through the length of the aluminum tube forming a “spring” center section referred to as a helical coil or beam. The flexure allowed by the beam portion of the coupling is capable of accommodating angular, parallel and axial misalignment while continuing to convey power between the attached shafts. This results in a single piece, true flexible coupling.
  • The Miniature Beam coupling is designed for very light power transmission applications where accurate positioning of shafts is an essential requirement. It also has a very high tolerance to heat, chemicals, and corrosion that would be harmful to conventional elastomeric flexible couplings.
  • The Miniature Beam coupling design is very well suited for small shaft applications and the inherent requirements of start/stop/reverse applications where zero backlash and extreme positioning accuracy are important. This coupling operates either clockwise or counter clockwise without sacrificing windup or torque capabilities.

  • Timken’s Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.
  • By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.
  • Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

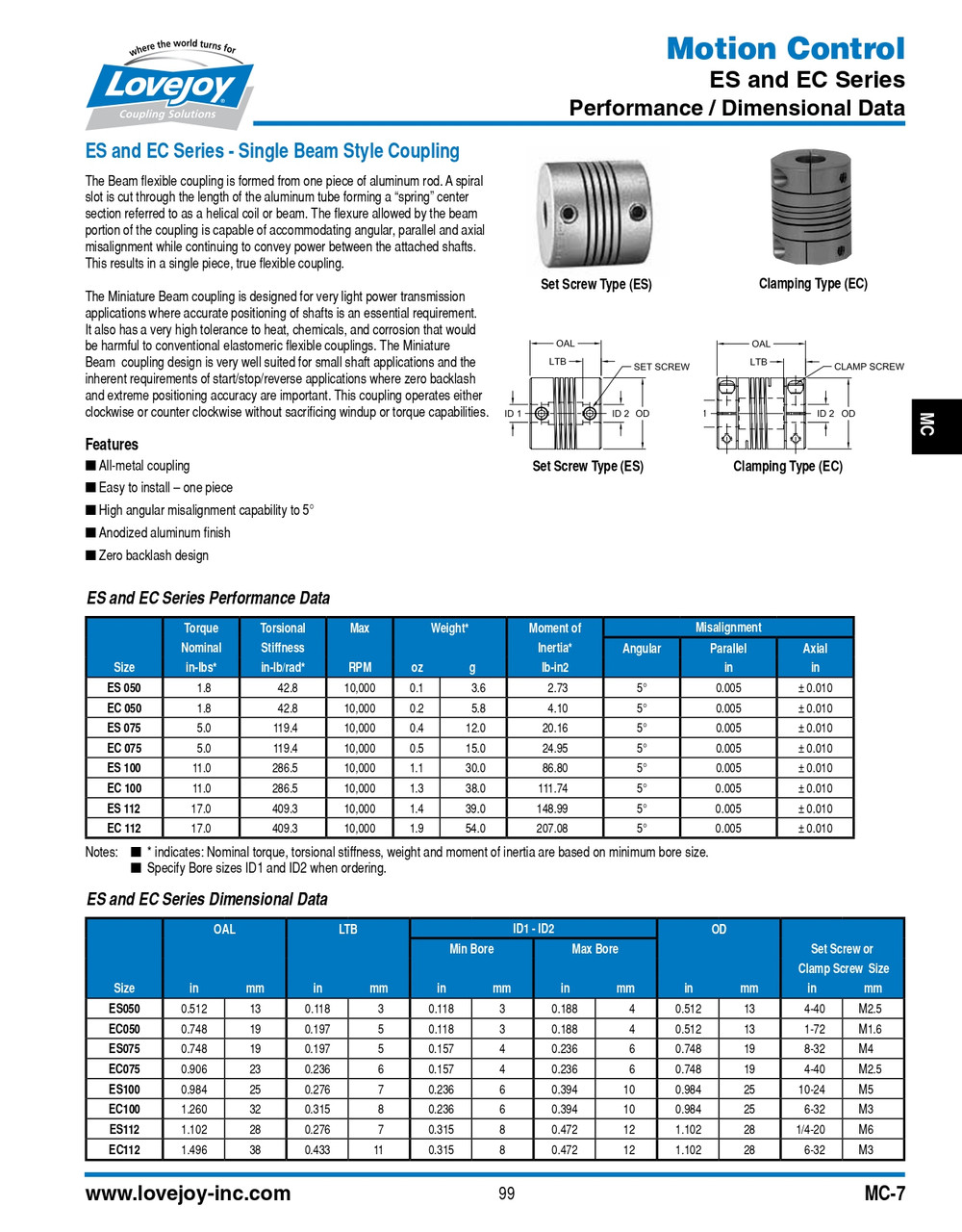

    adobepdficon.png Timken Lovejoy Master Catalog

    • Product Videos

    Custom Field

    Series ES112
    Shaft diameter 3/8 x 1/2"
    Material Aluminum
    Keyway size No keyway
    Coupling type Single beam coupler
