  • 2-1 AWG Copper Negative Straight Barrel Battery Terminal 5207-11
  • 2-1 AWG Copper Negative Straight Barrel Battery Terminal 5207-11
  • 2-1 AWG Copper Negative Straight Barrel Battery Terminal 5207-11

    • 2-1 AWG Copper Negative Straight Barrel Battery Terminal 5207-11

    PICO

    $9.60
    (No reviews yet) Write a Review
    SKU:
    PIC 5207-11
    UPC:
    UPC 776479030328
    Weight:
    0.15 LBS
    Width:
    1.50 (in)
    Height:
    1.00 (in)
    Depth:
    4.00 (in)
    Package quantity:
    1
    Wire range:
    2 ~ 1 AWG
    Polarity:
    Negative
    Attachment method:
    Crimp/Solder
    Crimp die colour code:
    Pink
    Use Green solder pellet @ 2 AWG:
    6161
    Use Pink solder pellet @ 1 AWG:
    6162
    Adding to cart… category.add_cart_announcement

    Product Description

  • C11000 ETP (Electrolytic Tough Pitch) lead free, copper battery terminals provide the highest conductivity rating compared to any competing copper design
  • If soldering this terminal Pico offers convenient, pre-measured, colour coded, solder pellets to eliminate the guess work when selecting that option
  • If crimping this terminal crimping tool options are listed on page 108 of the current Pico catalog

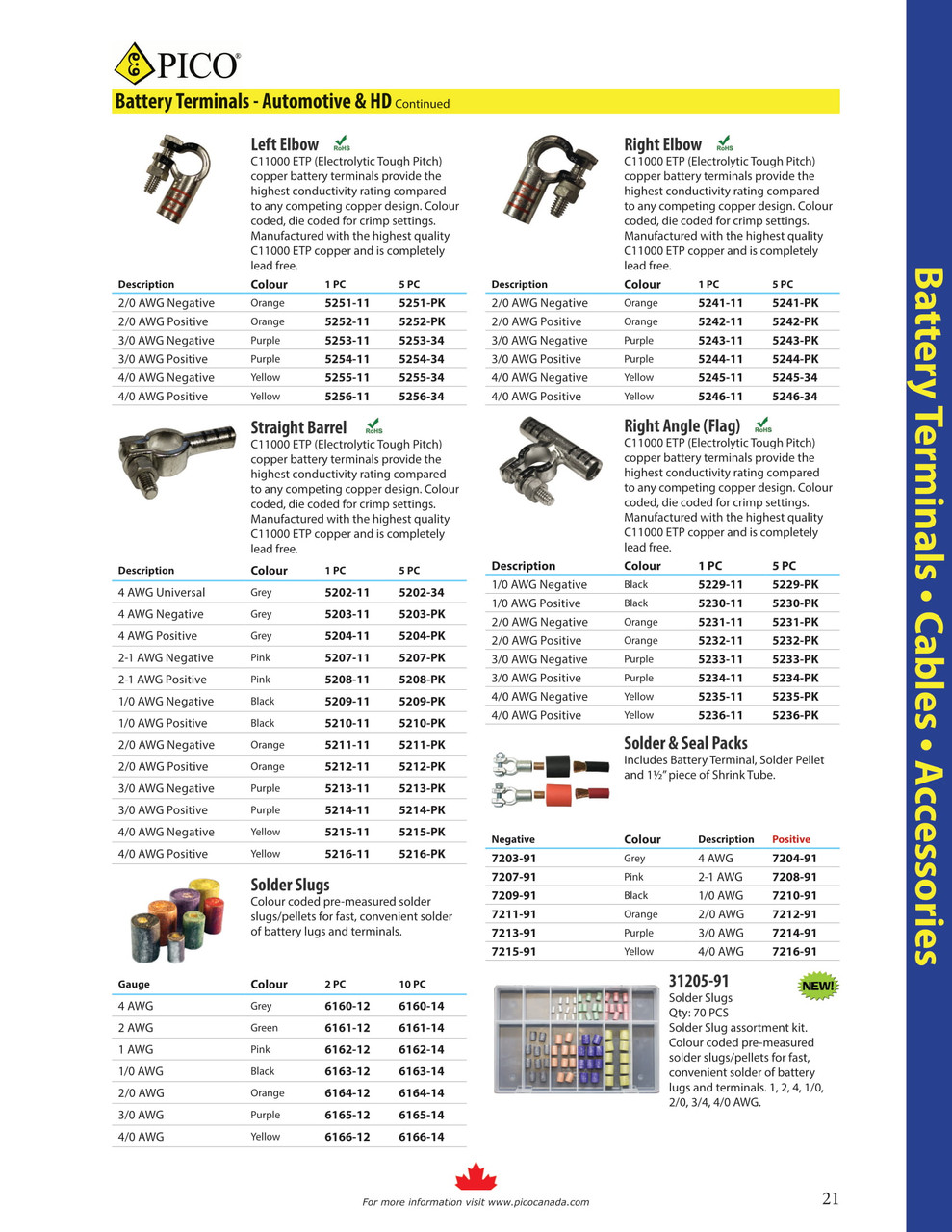

    Please be aware when referencing the supplied Pico catalog that certain features may have been changed or upgraded (i.e. Temperature rating) on currently shown product since its original publication. In addition, there are also new items now available from Pico that were not included in this catalog when it went to print. You will notice these newer items by the lack of an attached catalog page in the image carousel

    adobepdficon.png Pico 2018 General Catalog

    • Product Videos

    Custom Field

    Package quantity 1
    Wire range 2 ~ 1 AWG
    Polarity Negative
    Attachment method Crimp/Solder
    Crimp die colour code Pink
    Use Green solder pellet @ 2 AWG 6161
    Use Pink solder pellet @ 1 AWG 6162
