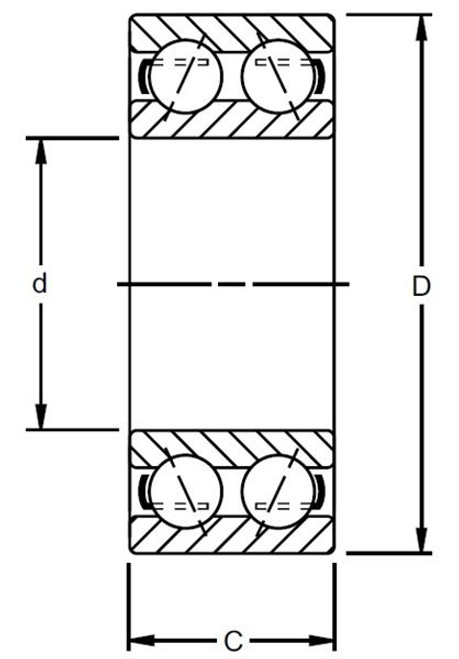

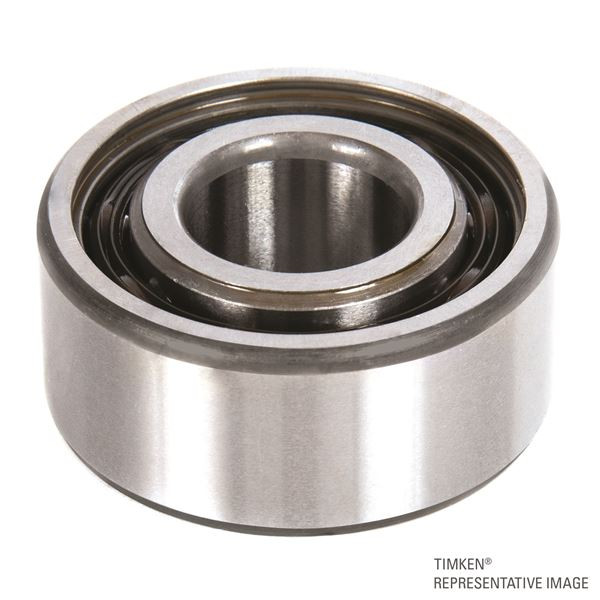

17 x 40 x 17.5mm Double Row Angular Contact Ball Bearing 3203 ATN1

17 x 40 x 17.5mm Double Row Angular Contact Ball Bearing 3203 ATN1

Timken

$59.44

(No reviews yet) Write a Review

SKU:: TIM 3203 ATN1
UPC:: UPC 013992228093
Weight:: 0.00 LBS
Contact angle:: 30°
Cage type:: Molded polyamide 66
Clearance type:: Normal

Overview
Reviews

Product Description

Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance.

Standard design angular contact ball bearings are in applications when one bearing is used for each bearing side The mounting can be either back-to-back or face-to-face. Because standard design bearings need to be adjusted for optimum performance, they are not suitable to mount immediately adjacent to each other.

Universally matched angular contact ball bearings, which are intended for fitting in pairs, have width and standout of the rings manufactured to closer tolerances The bearings can be fitted in back-to-back (DB), face-to-face (DF), or tandem arrangements (DT)

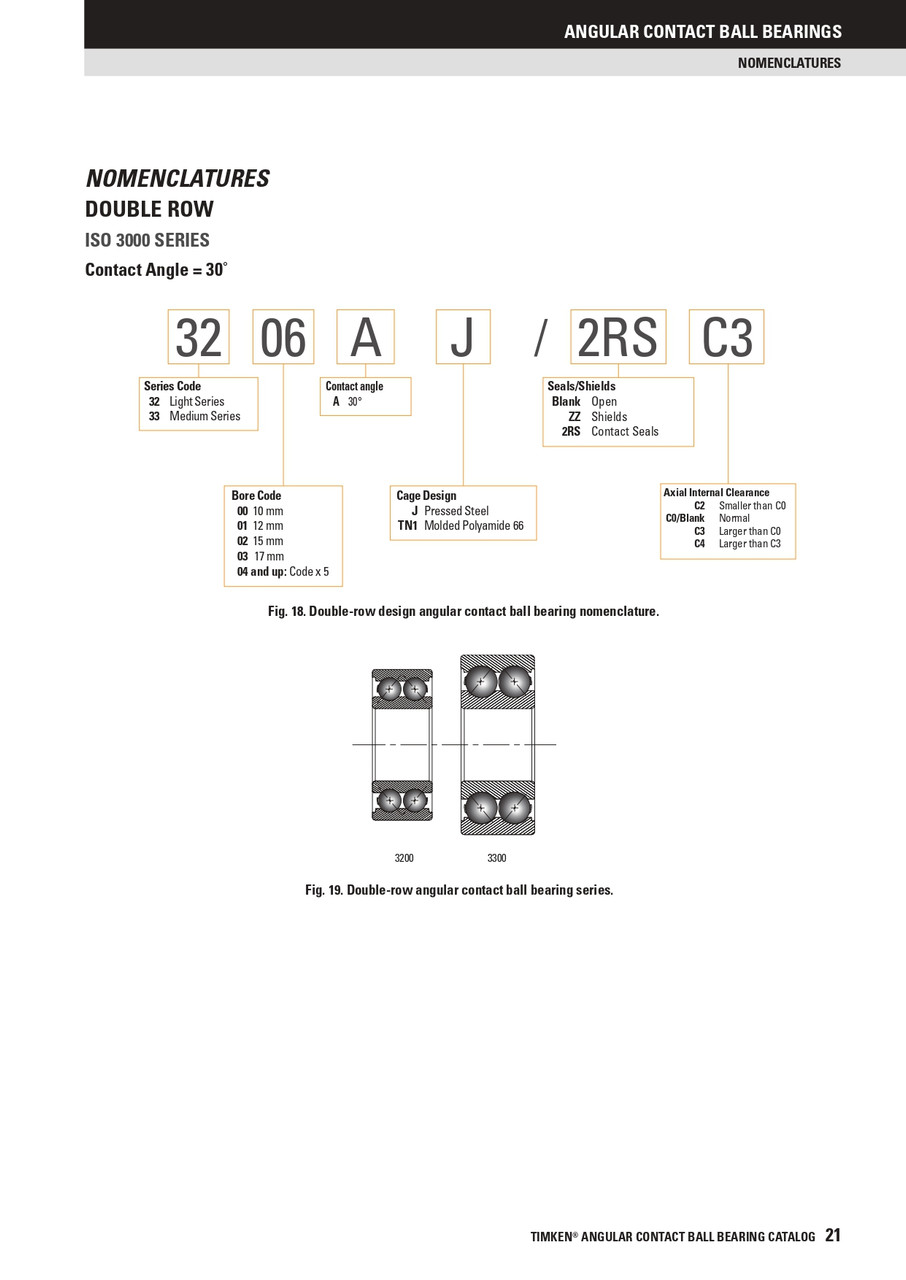

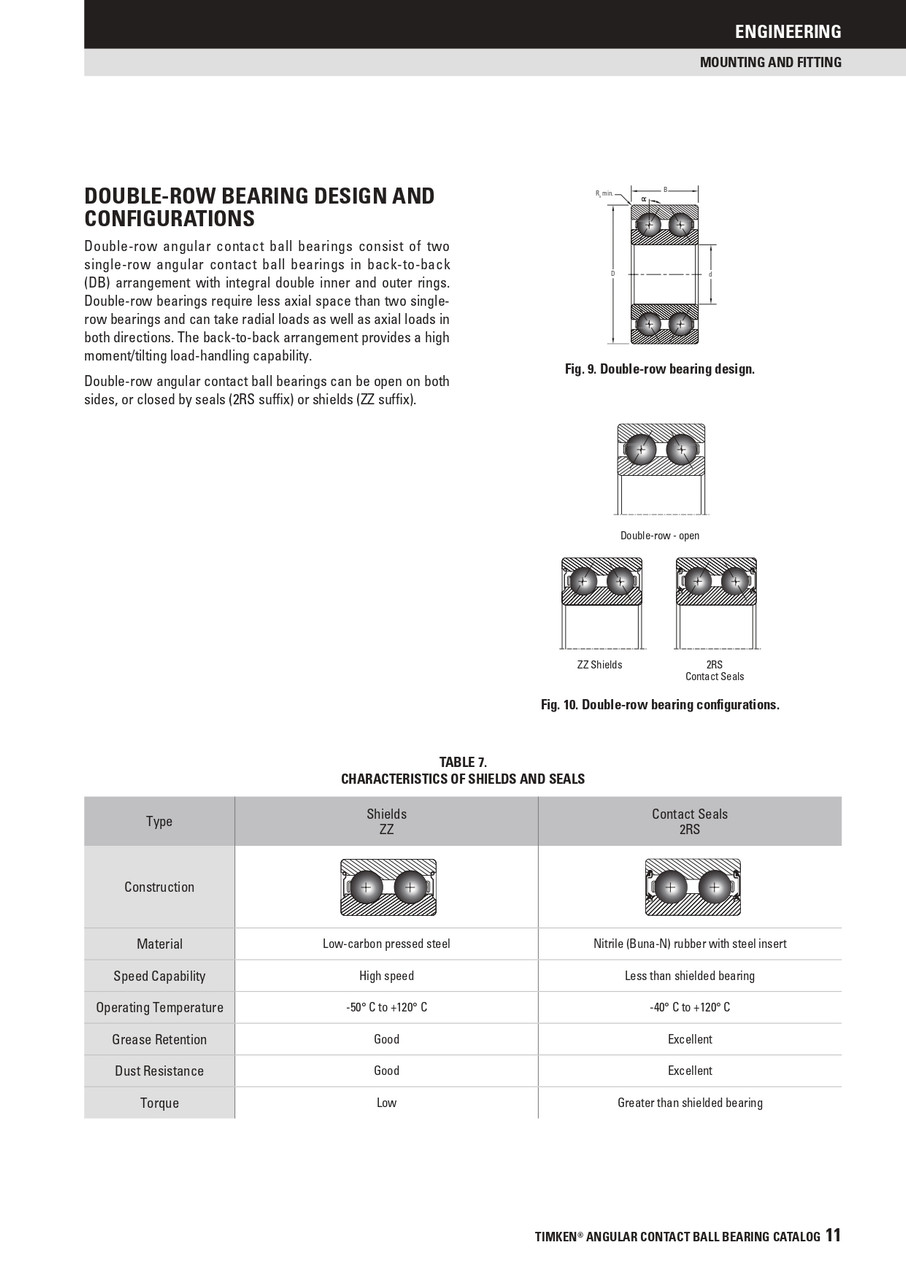

Timken Angular Contact Ball Bearing Catalog

Product Videos

Custom Field

Contact angle 30°

Cage type Molded polyamide 66

Clearance type Normal
