  • 17.00mm Metric Rubberized Double Lip Nitrile Oil Seal 221720
  • 17.00mm Metric Rubberized Double Lip Nitrile Oil Seal 221720
  • 17.00mm Metric Rubberized Double Lip Nitrile Oil Seal 221720
  • 17.00mm Metric Rubberized Double Lip Nitrile Oil Seal 221720
  • 17.00mm Metric Rubberized Double Lip Nitrile Oil Seal 221720
  • 17.00mm Metric Rubberized Double Lip Nitrile Oil Seal 221720

    • 17.00mm Metric Rubberized Double Lip Nitrile Oil Seal 221720

    National Oil Seals

    $8.23
    (No reviews yet) Write a Review
    SKU:
    NAT 221720 SEAL
    UPC:
    UPC 053893469812
    Weight:
    0.02 LBS
    Shaft size:
    17.00mm
    Housing bore:
    30.00mm
    Seal width:
    7.00mm
    Seal type & style:
    32 (Double lip)
    Lip material:
    S (Nitrile)
    Case material:
    Rubberized metal
    Temperature range:
    -35°C ~ 120°C (-30°F ~ 250°F)
    Spring retained:
    Yes
    Seal series:
    220000
    Hardness:
    70 Durometer
    Denoted measurement:
    Metric
    Shown in catalog:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Nitrile (Lip code: S) is the most commonly used sealing material as nitrile is excellent with most mineral oils and greases.
  • Offers desirable "low swell" properties across many hydrocarbon fluid types.
  • Variations are available for use with fuels, industrial fluids and highly compounded lubricants.
  • Nitrile works in dry running applications but only for intermittent periods.
  • Some water based fluids such as certain cutting fluids, can destroy the nitrile/plain steel case bond when operating temperatures exceed 66°C (150°F)
  • Nitrile exhibits poor ozone resistance.
  • Poor resistance to lubricants containing sulphur, EP additives, or oxygenated hydrocarbons.

  • Rubber cover over a metallic core offers an excellent combination of sealing ability and corrosion resistance.
  • The rubber elastomer outer covering tolerates thermal expansion as well as roughness in the housing bore.
  • Because of the rubberized covering on the seal, there will be no fretting/galvanic corrosion of the metal bore that the seal is pressed into.

  • Please note that not all product images are representative of the item being shown but are similar in appearance. Please refer to the seals technical specifications sheet provided in the image carousel for absolute confirmation before ordering.

    Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.

    Follow this link to access Timken's National oil seal & competitor's interchange.

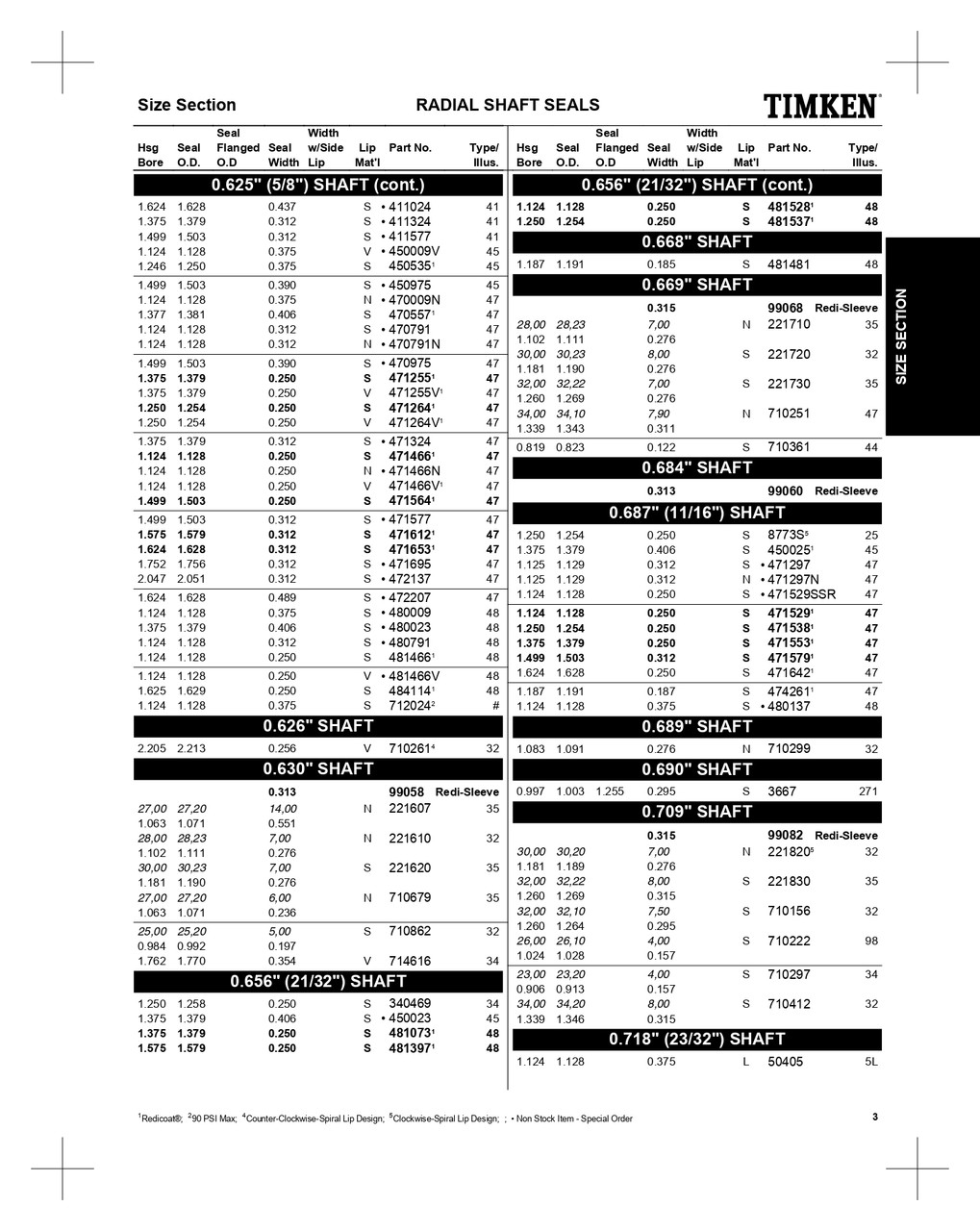

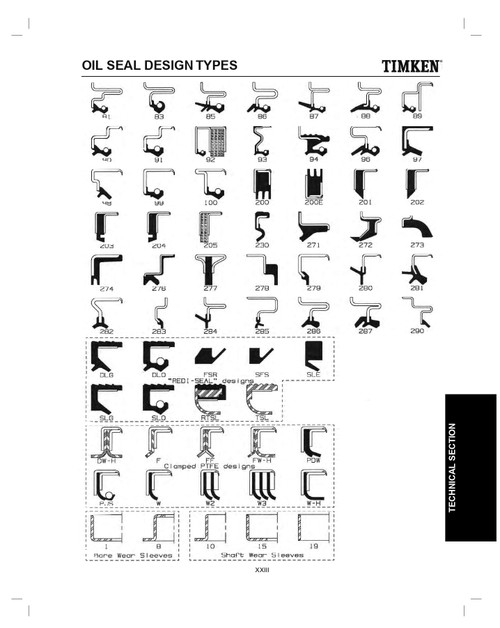

    adobepdficon.png Timken Metric Oil Seal Catalog

    adobepdficon.png National 7707 Inch Oil Seal Catalog & Interchange

    • Product Videos

    Custom Field

    Shaft size 17.00mm
    Housing bore 30.00mm
    Seal width 7.00mm
    Seal type & style 32 (Double lip)
    Lip material S (Nitrile)
    Case material Rubberized metal
    Temperature range -35°C ~ 120°C (-30°F ~ 250°F)
    Spring retained Yes
    Seal series 220000
    Hardness 70 Durometer
    Denoted measurement Metric
    Shown in catalog Yes
