  • 15mm Metric Sealed Spherical Bushing GE 15 ES 2RS
  • 15mm Metric Sealed Spherical Bushing GE 15 ES 2RS
  • 15mm Metric Sealed Spherical Bushing GE 15 ES 2RS

    • 15mm Metric Sealed Spherical Bushing GE 15 ES 2RS

    IKO

    $28.73
    (No reviews yet) Write a Review
    SKU:
    IKO GE 15 ES 2RS
    Weight:
    0.00 LBS
    Inner diameter:
    15mm
    Outer diameter:
    26mm
    C dimension:
    9mm
    B dimension:
    12mm
    Sealed:
    Yes
    Series:
    Metric
    Adding to cart… category.add_cart_announcement

    Product Description

  • IKO® spherical bushings are self-aligning spherical plain bushings that have inner and outer rings with spherical sliding surfaces, and can take a large radial load and a bi-directional axial load at the same time. There are many types of spherical bushings, but they are basically divided into steel-on-steel types and maintenance-free types according to the kind of sliding surfaces. Steel-on-steel spherical bushings have inner and outer rings of high carbon chromium bearing steel, of which sliding surfaces are phosphate treated and then dry-coated with molybdenum disulfide (MoS2). They can, therefore, operate with low torque, and have excellent wear resistance and large load capacity. They are especially suitable for applications where there are alternate loads and shock loads. They have wide applications mainly in industrial and construction machinery. Maintenance-free spherical bushings consist of an outer ring which has a special PTFE liner reinforced with copper alloy meshes on the sliding surface, and a spherical inner ring of which sliding surface has a hard chromium plating. Creep deformation due to compressive load is small, and wear resistance is superior. Thus, they are maintenance-free and can be used for extended periods of time without re-lubrication. They are especially suitable in cases where fixed directional loads are applied and are used mainly in food processing machines and construction machinery and in other applications in which the use of oil is undesirable or lubrication is not possible.

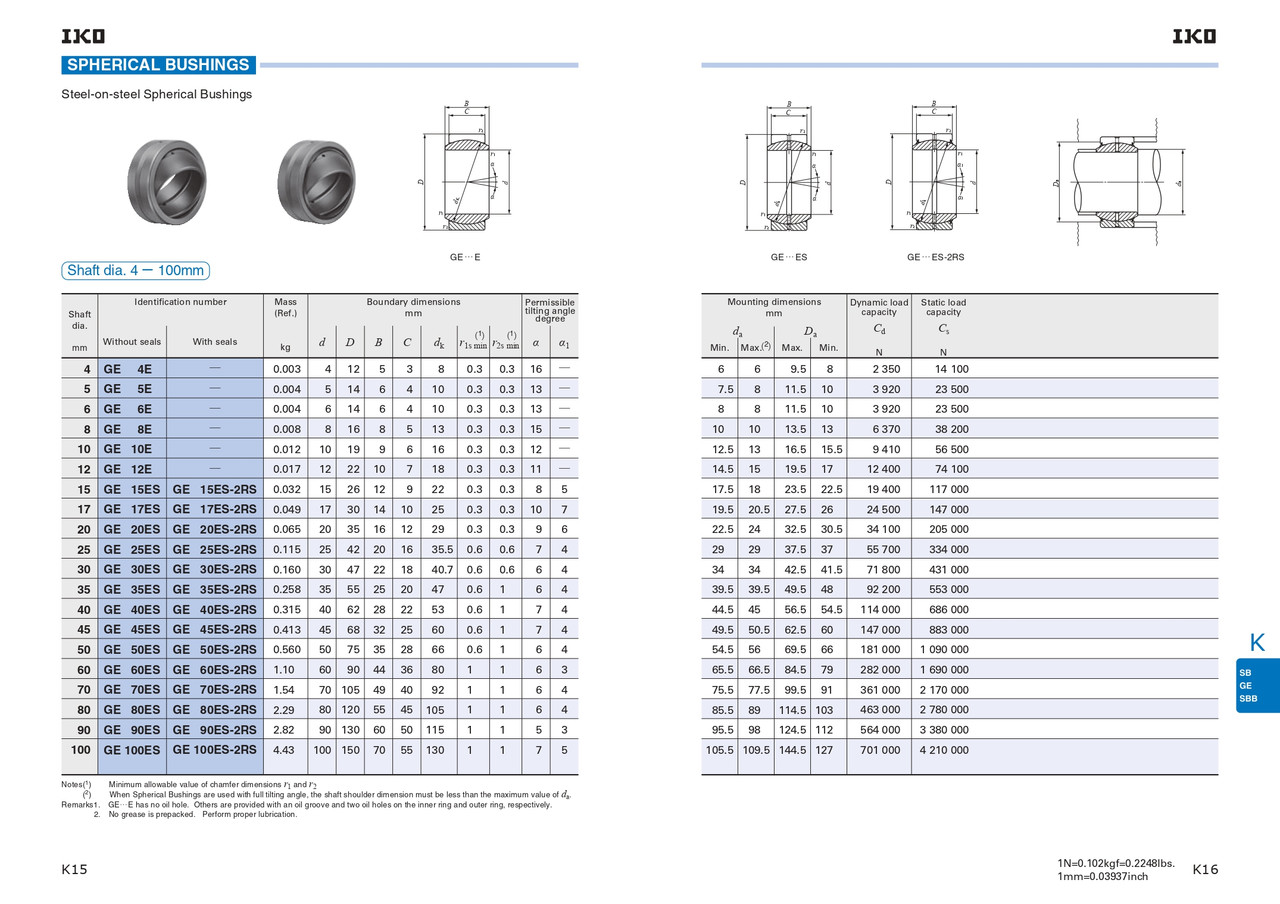

    adobepdficon.png IKO Catalog

    • Product Videos

    Custom Field

    Inner diameter 15mm
    Outer diameter 26mm
    C dimension 9mm
    B dimension 12mm
    Sealed Yes
    Series Metric
