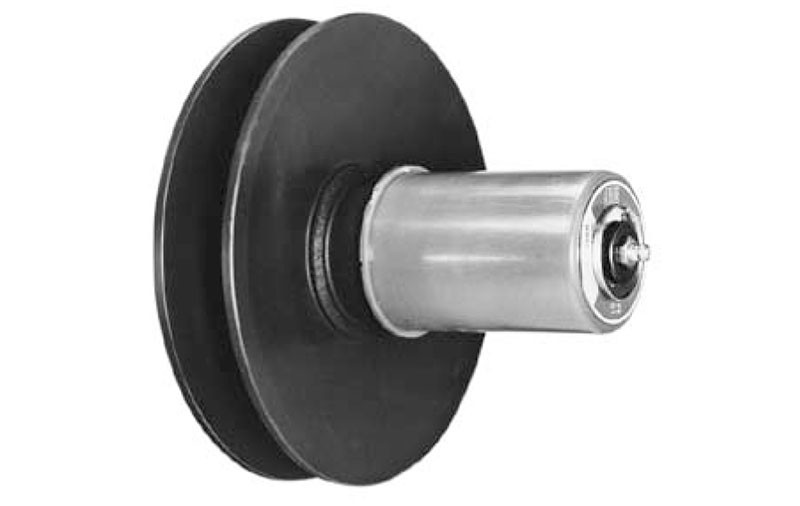

  • 1" Shaft Lovejoy® WB Series Model 3030E Spring Loaded Driver Pulley 3030E-1"-PULLEY
  • 1" Shaft Lovejoy® WB Series Model 3030E Spring Loaded Driver Pulley 3030E-1"-PULLEY
  • 1" Shaft Lovejoy® WB Series Model 3030E Spring Loaded Driver Pulley 3030E-1"-PULLEY
  • 1" Shaft Lovejoy® WB Series Model 3030E Spring Loaded Driver Pulley 3030E-1"-PULLEY
  • 1" Shaft Lovejoy® WB Series Model 3030E Spring Loaded Driver Pulley 3030E-1"-PULLEY

    • 1" Shaft Lovejoy® WB Series Model 3030E Spring Loaded Driver Pulley 3030E-1"-PULLEY

    Timken

    $0.00
    (No reviews yet) Write a Review
    SKU:
    TIM 3030E-1"-PULLEY
    UPC:
    UPC 68514418939
    Weight:
    0.00 LBS
    Series:
    3030E
    Shaft diameter:
    1"
    Keyway size:
    1/4 x 1/8"
    Outer diameter:
    8.50"
    Belt size:
    2322V
    Type:
    Variable speed drive

    Product Description

  • Pulleys in the WB series use wide variable speed belts for the most efficient transmission of torque through the widest possible speed range. These pulleys are two-side moveable for the best possible belt alignment when used with a grooved companion sheave. However, the location of the belt centerline close to the bore end of the pulley reduces the overhung load on motor bearings and seals. Precision-calibrated springs maintain correct pressure, keeping the belt properly tensioned and minimizing belt slip.
  • WB pulleys can be used on both adjustable and fixed center drives. They offer maximum service when lubricated through a convenient grease fitting and occasionally run through the speed range.

  • Timken’s Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.
  • By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.
  • Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

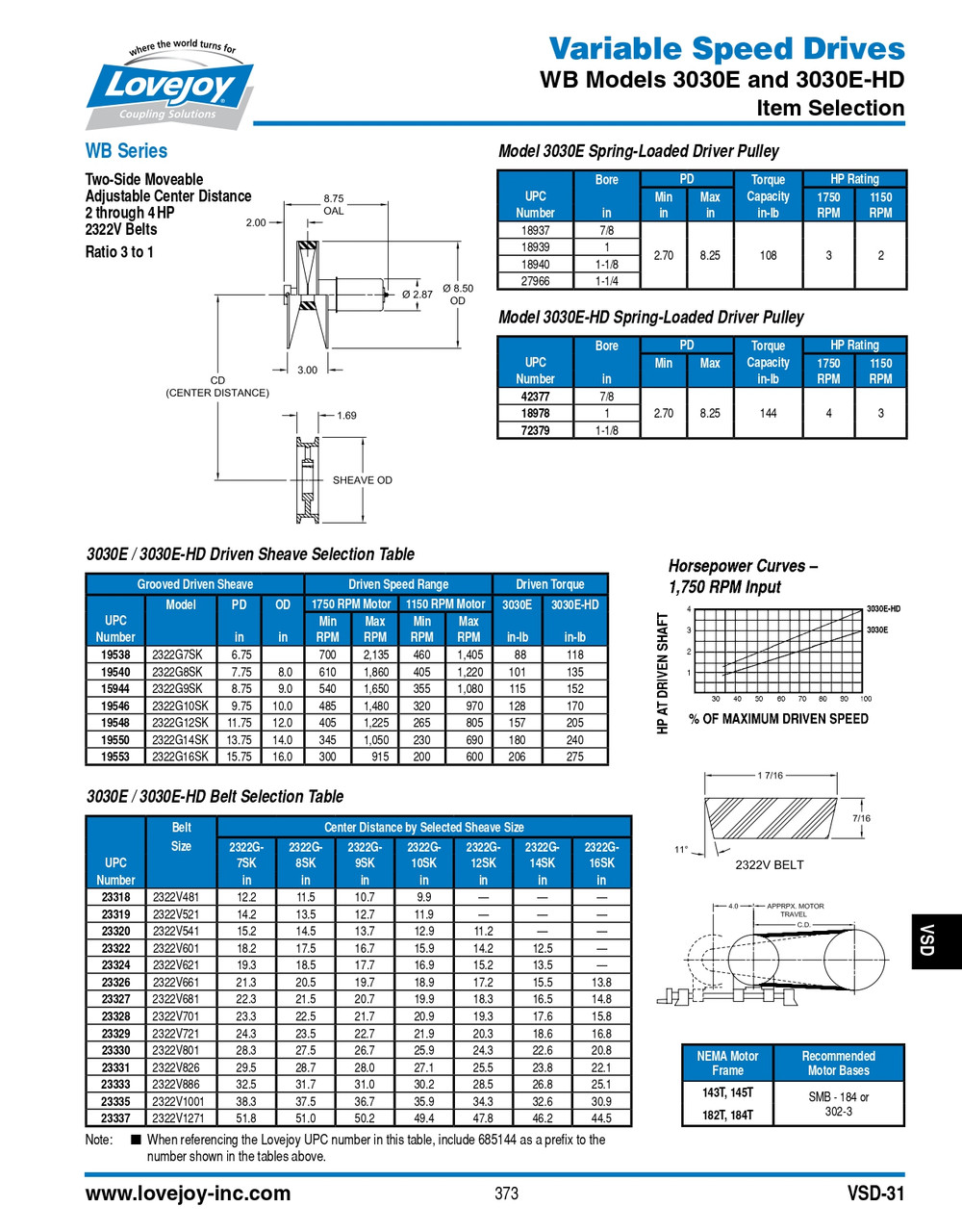

    adobepdficon.png Timken Lovejoy Master Catalog

    • Product Videos

    Custom Field

    Series 3030E
    Shaft diameter 1"
    Keyway size 1/4 x 1/8"
    Outer diameter 8.50"
    Belt size 2322V
    Type Variable speed drive
