  • 1.605" (40.77mm) Shaft Seal Repair Sleeve 99160
  • 1.605" (40.77mm) Shaft Seal Repair Sleeve 99160
  • 1.605" (40.77mm) Shaft Seal Repair Sleeve 99160
  • 1.605" (40.77mm) Shaft Seal Repair Sleeve 99160

    • 1.605" (40.77mm) Shaft Seal Repair Sleeve 99160

    SKF Seals

    $47.25
    (No reviews yet) Write a Review
    SKU:
    SKF 99160
    Weight:
    1.00 LBS
    Shaft fit range:
    1.605"
    Shaft fit range:
    40.77mm
    Material:
    Stainless steel
    Removable installation flange:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

    Cost Effective:

  • Speedi-sleeves are precision formed stainless steel wear sleeves designed to prolong the life of damaged shafts and yokes by providing a new sealing surface that is superior to most original finishes and materials
  • Oil seals over time cut fine grooves into shafts due to factors such as dirt, heat, excessive water, lack of lubrication and high shaft speed rotation
  • Speedi-sleeves offer a cost effective alternative to resizing, metalizing, spray welding or replacing severely damaged surfaces
  • The sleeves low profile design means that the original oil seals dimensions can continue to be used without any shaft rework or machining
  • Please note that there are higher performance Gold Speedi-Sleeves with Rockwell HRC80 hardness available for special order that are not listed in this database

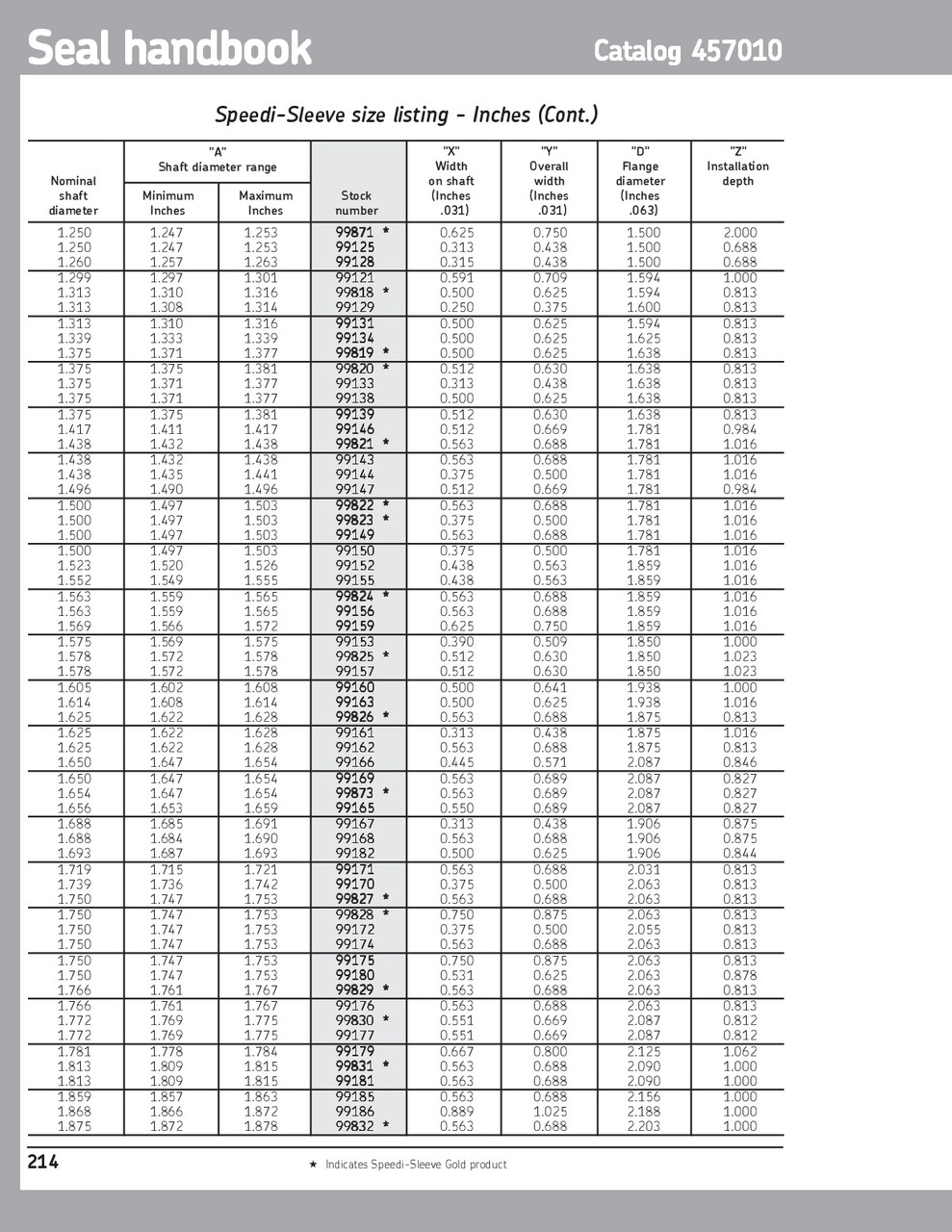

  • Please refer to the attached dimensional charts for exact specifications and min-max tolerances conveniently provided in both inch and metric increments



     adobepdficon.png  SKF Speedi-Sleeves





     adobepdficon.png  SKF Seals Handbook 457010



    •

    Product Videos

    Custom Field

    Shaft fit range 1.605"
    Shaft fit range 40.77mm
    Material Stainless steel
    Removable installation flange Yes
