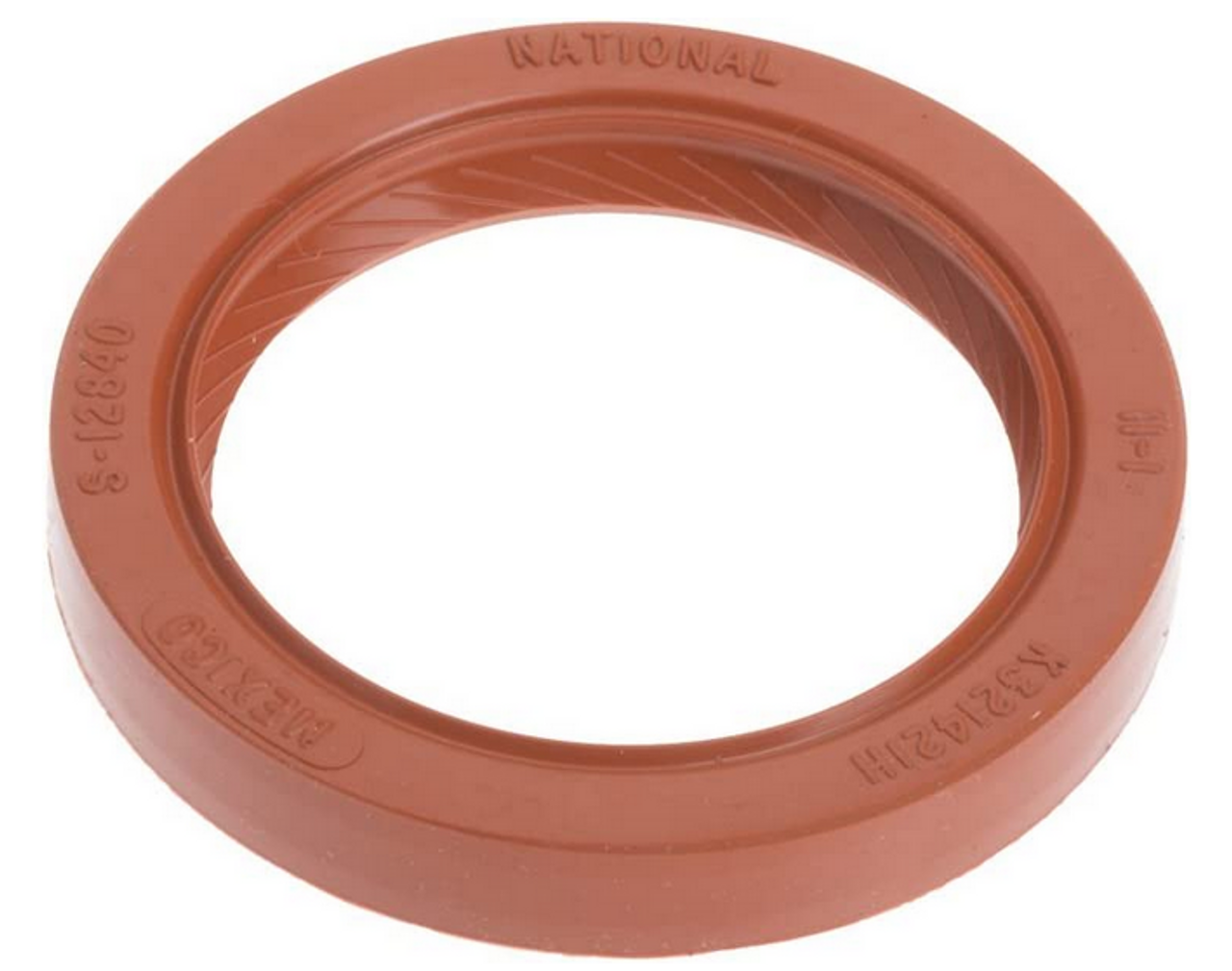

  • 1.457" Inch Rubberized Double Lip Silicone Oil Seal 710355
  • 1.457" Inch Rubberized Double Lip Silicone Oil Seal 710355
  • 1.457" Inch Rubberized Double Lip Silicone Oil Seal 710355
  • 1.457" Inch Rubberized Double Lip Silicone Oil Seal 710355
  • 1.457" Inch Rubberized Double Lip Silicone Oil Seal 710355
  • 1.457" Inch Rubberized Double Lip Silicone Oil Seal 710355

    • 1.457" Inch Rubberized Double Lip Silicone Oil Seal 710355

    National Oil Seals

    $12.53
    (No reviews yet) Write a Review
    SKU:
    NAT 710355
    UPC:
    UPC 053893499543
    Weight:
    0.05 LBS
    Shaft size:
    1.457"
    Seal outer diameter:
    1.996"
    Seal width:
    0.276"
    Seal type & style:
    32 (Double lip)
    Lip material:
    H (Silicone)
    Case material:
    Rubberized metal
    Temperature range:
    -73° ~ 163°C (-100° ~ 325°F)
    Spring retained:
    Yes
    Seal series:
    710300
    Hardness:
    70 Durometer
    Notable feature:
    Clockwise spiral lip design
    Denoted measurement:
    Inch
    Shown in catalog:
    Yes
    Adding to cart… category.add_cart_announcement

    Product Description

  • Silicone (Lip code: H) lip material has a wide temperature range in which it can operate and is typically selected for high to low temperature ranges as well as low friction applications.
  • The high lubricant absorbency of silicone minimizes friction and wear; however it has poor compatibility with oxidized oils, some extreme pressure additives and abrasive contaminants.
  • Silicone should not be used in dry running applications as the lip will easily tear and/or wear its surface down prematurely.

  • Rubber cover over a metallic core offers an excellent combination of sealing ability and corrosion resistance.
  • The rubber elastomer outer covering tolerates thermal expansion as well as roughness in the housing bore.
  • Because of the rubberized covering on the seal, there will be no fretting/galvanic corrosion of the metal bore that the seal is pressed into.

  • Please note that not all product images are representative of the item being shown but are similar in appearance. Please refer to the seals technical specifications sheet provided in the image carousel for absolute confirmation before ordering.

    Follow this link for access to Timken's interactive, multi-vehicle, bearing & seal application database.

    Follow this link to access Timken's National oil seal & competitor's interchange.

    adobepdficon.png Timken Metric Oil Seal Catalog

    adobepdficon.png National 7707 Inch Oil Seal Catalog & Interchange

    • Product Videos

    Custom Field

    Shaft size 1.457"
    Seal outer diameter 1.996"
    Seal width 0.276"
    Seal type & style 32 (Double lip)
    Lip material H (Silicone)
    Case material Rubberized metal
    Temperature range -73° ~ 163°C (-100° ~ 325°F)
    Spring retained Yes
    Seal series 710300
    Hardness 70 Durometer
    Notable feature Clockwise spiral lip design
    Denoted measurement Inch
    Shown in catalog Yes
