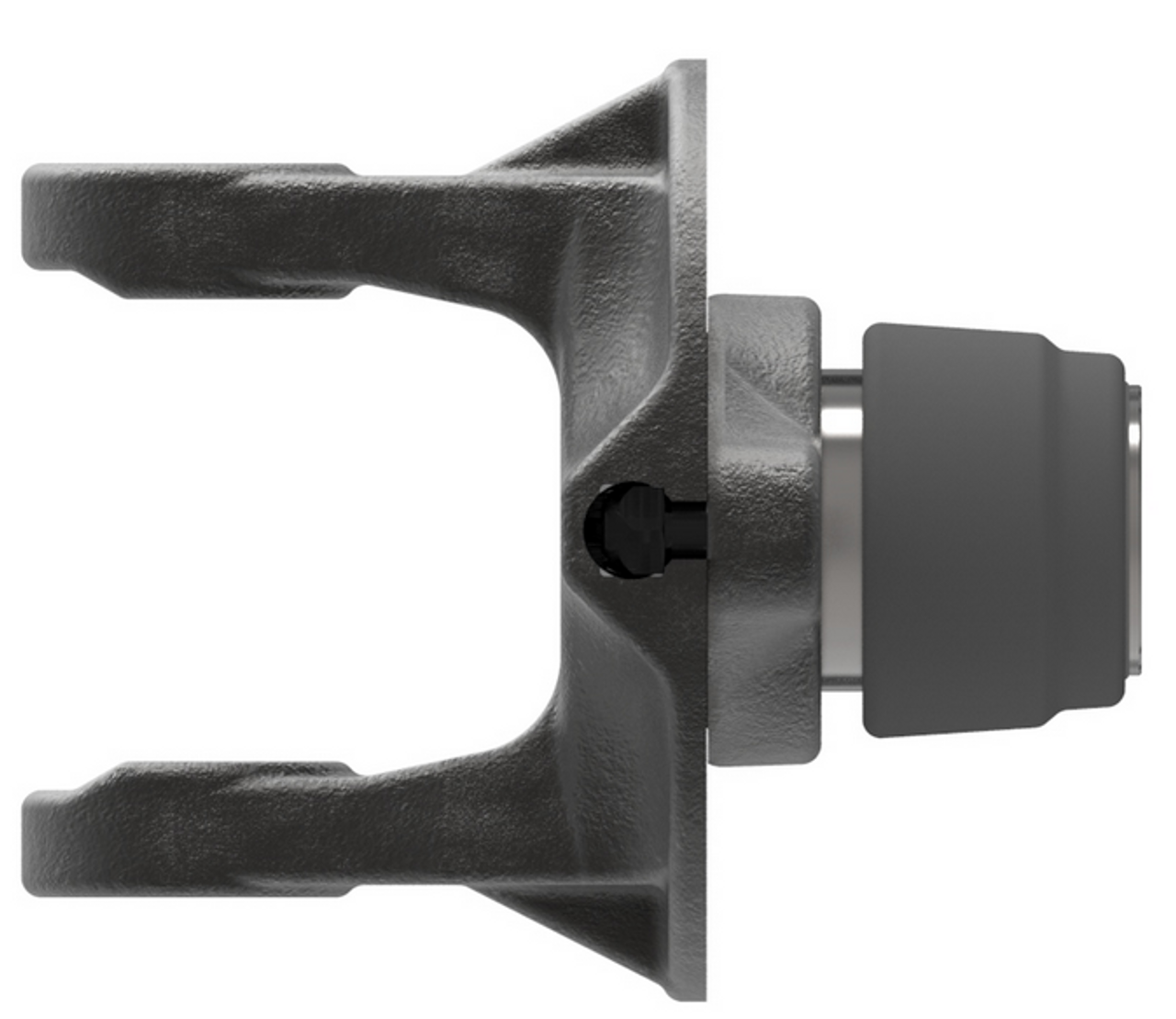

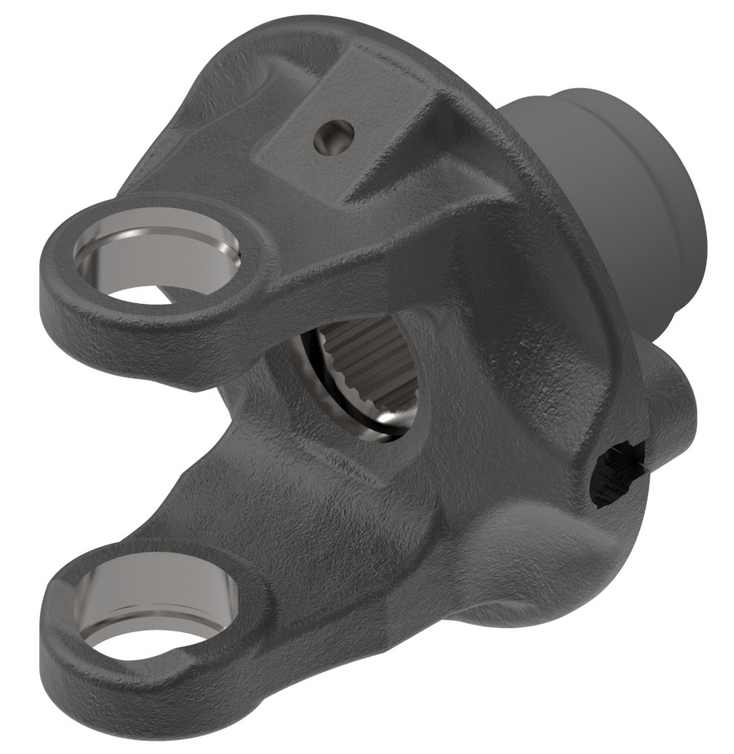

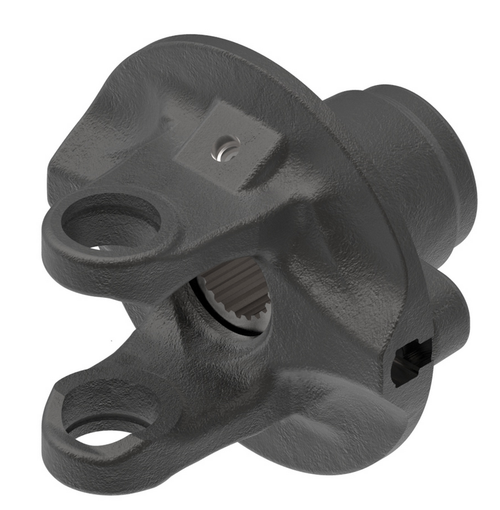

  • 1-3/8"-21 Spline - Ball Shear Clutch Spring-Lok QD Yoke - 55 Series PTO104-5521
  • 1-3/8"-21 Spline - Ball Shear Clutch Spring-Lok QD Yoke - 55 Series PTO104-5521
  • 1-3/8"-21 Spline - Ball Shear Clutch Spring-Lok QD Yoke - 55 Series PTO104-5521
  • 1-3/8"-21 Spline - Ball Shear Clutch Spring-Lok QD Yoke - 55 Series PTO104-5521
  • 1-3/8"-21 Spline - Ball Shear Clutch Spring-Lok QD Yoke - 55 Series PTO104-5521
  • 1-3/8"-21 Spline - Ball Shear Clutch Spring-Lok QD Yoke - 55 Series PTO104-5521
  • 1-3/8"-21 Spline - Ball Shear Clutch Spring-Lok QD Yoke - 55 Series PTO104-5521

    • 1-3/8"-21 Spline - Ball Shear Clutch Spring-Lok QD Yoke - 55 Series PTO104-5521

    Westward Parts

    $525.30
    (No reviews yet) Write a Review
    SKU:
    WWP PTO1045521
    Weight:
    12.01 LBS
    Weasler part #:
    104-5521
    Westward part number:
    PTO1045521
    Shear bolt diameter:
    3/8"-16 (x2)
    Shear bolt grade:
    5
    Bore size:
    1-3/8"-21 spline
    Connection 1:
    Safety Slide-Lok
    Torque:
    27800" lbs.
    Outer diameter:
    6"
    Bearing cup diameter:
    1.531"
    Bearing span:
    4.303"
    HP @ 540 RPM:
    137
    HP @ 1000 RPM:
    211
    Driveline series:
    North American
    Type:
    Ball shear clutch yoke
    Series:
    55
    Adding to cart… category.add_cart_announcement

    Product Description

    PERFORMANCE BENEFITS

  • Implement overload protection.
  • Minimal maintenance.
  • No damaging heat generation for higher productivity.
  • Repeatable overload disengagement setting.
  • Tamper resistant.
  • Smooth disengaged operation, no damaging torque spikes.
  • Offered with or without free motion, overrunning and tractor mount options.
  • Induction hardened bolt holes provide good edge for consistent, repeatable shear.
  • Internal ball bearing with induction hardened races.
  • Reduces possibility of damage.

    DESIGN FEATURES

  • Tractor yoke: Hidden shear bolt, Complies with asabe and ISO standards, Slide collar style for 1-3/8"-6, 1-3/8"-21 and 1-3/4"-20 spline PTO shafts.
  • Implement yoke contains shear bolt accessible for easy change out.
  • Free motion yoke: Shear bolt accessible for easy change out, 60° free movement for easy hookup of tractor yoke.
  • Auto-lok attachment available (patented).
  • Speeds to 2000 rpm.
  • Broad range of shear torque settings.

  • Please follow this link to access the very helpful and handy Weasler instructional video library.

    If you are within a reasonable driving distance of any of the three WWP locations located in Winnipeg, Regina, or Red Deere, you may arrange to pick up your parts there directly and avoid delivery charges. If you prefer to use this option, please select "in store pickup" when checking out and no freight fees will be added to your invoice total. Please note Westward Parts requires processing time to pick your order, allow 2-3 hours minimum for standard service. Emergency service is available, but rush fees will apply.

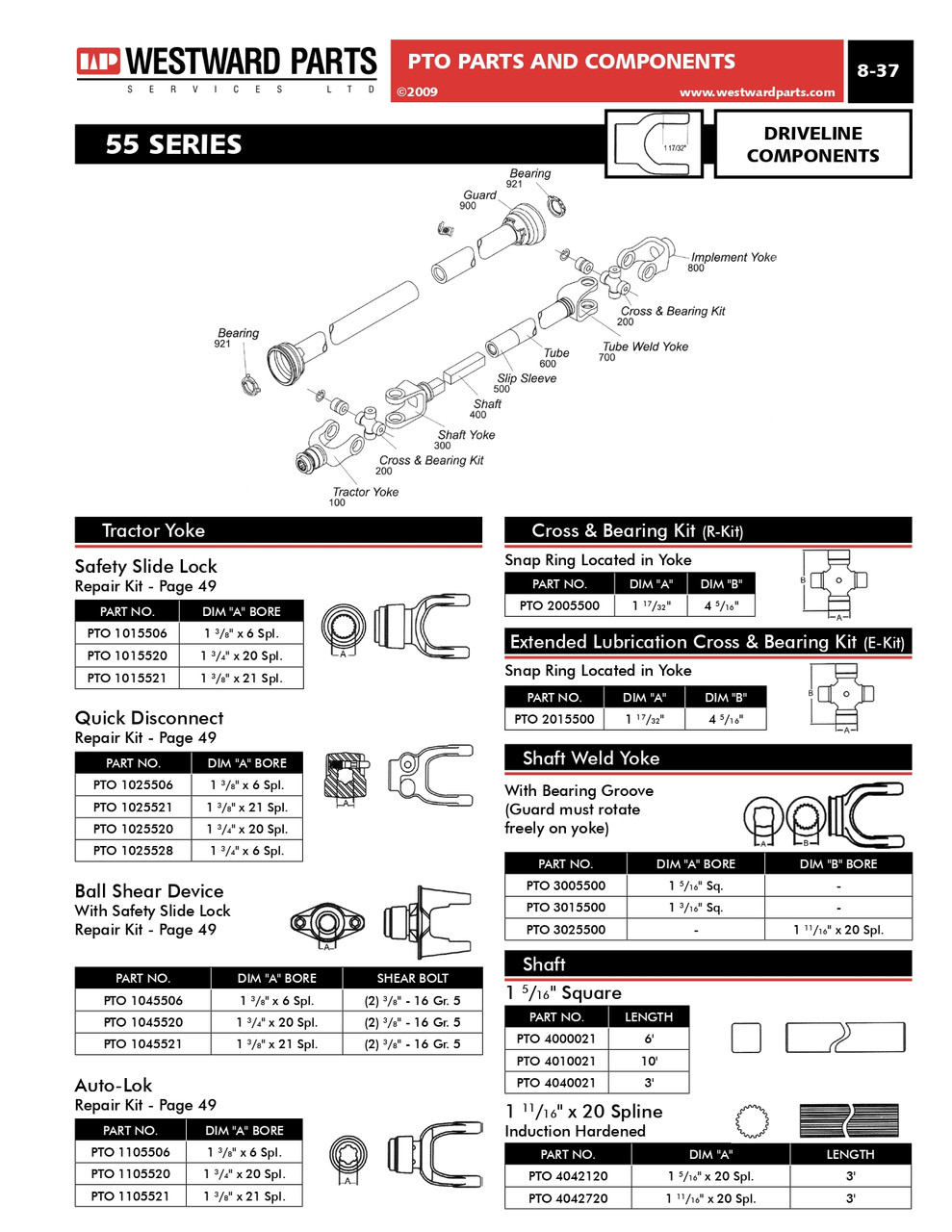

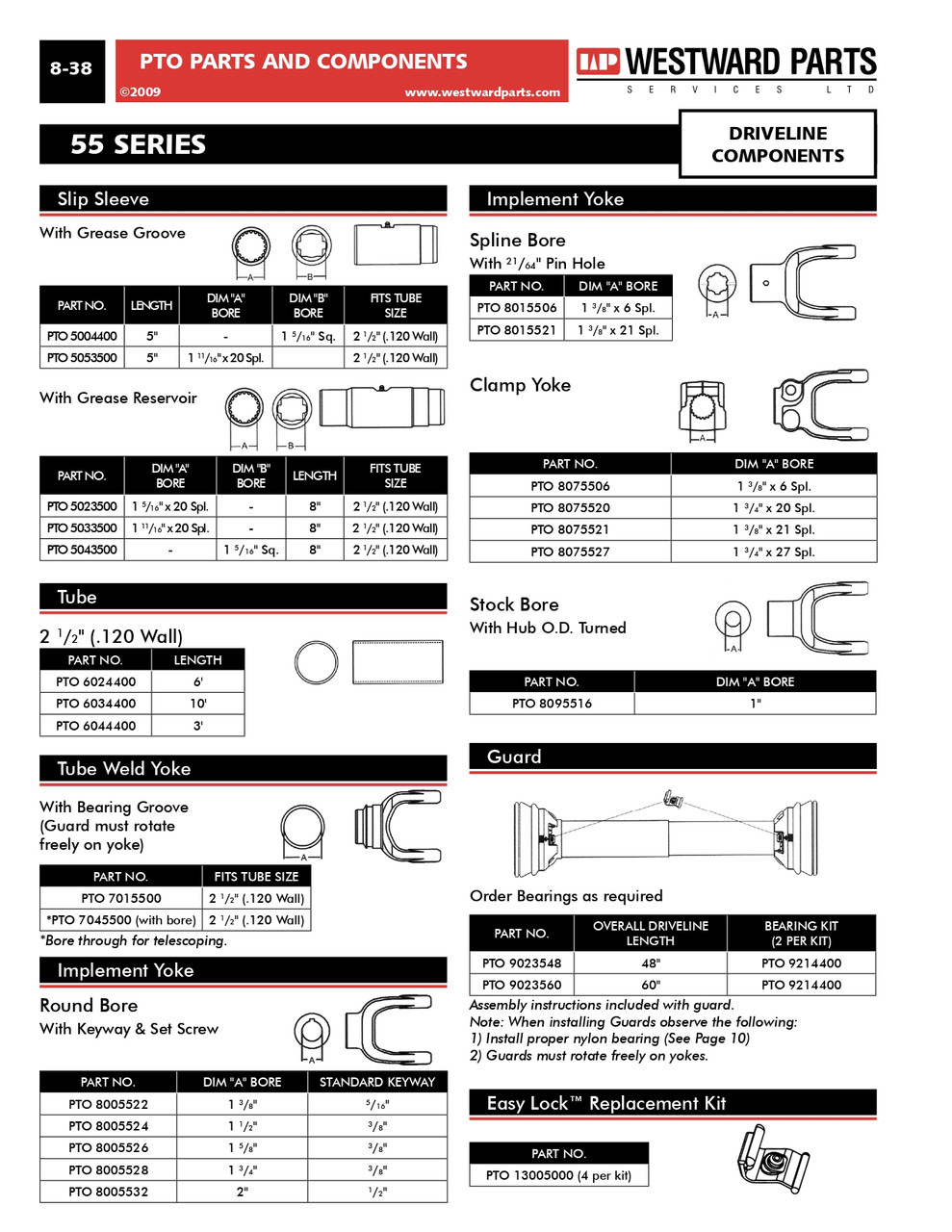

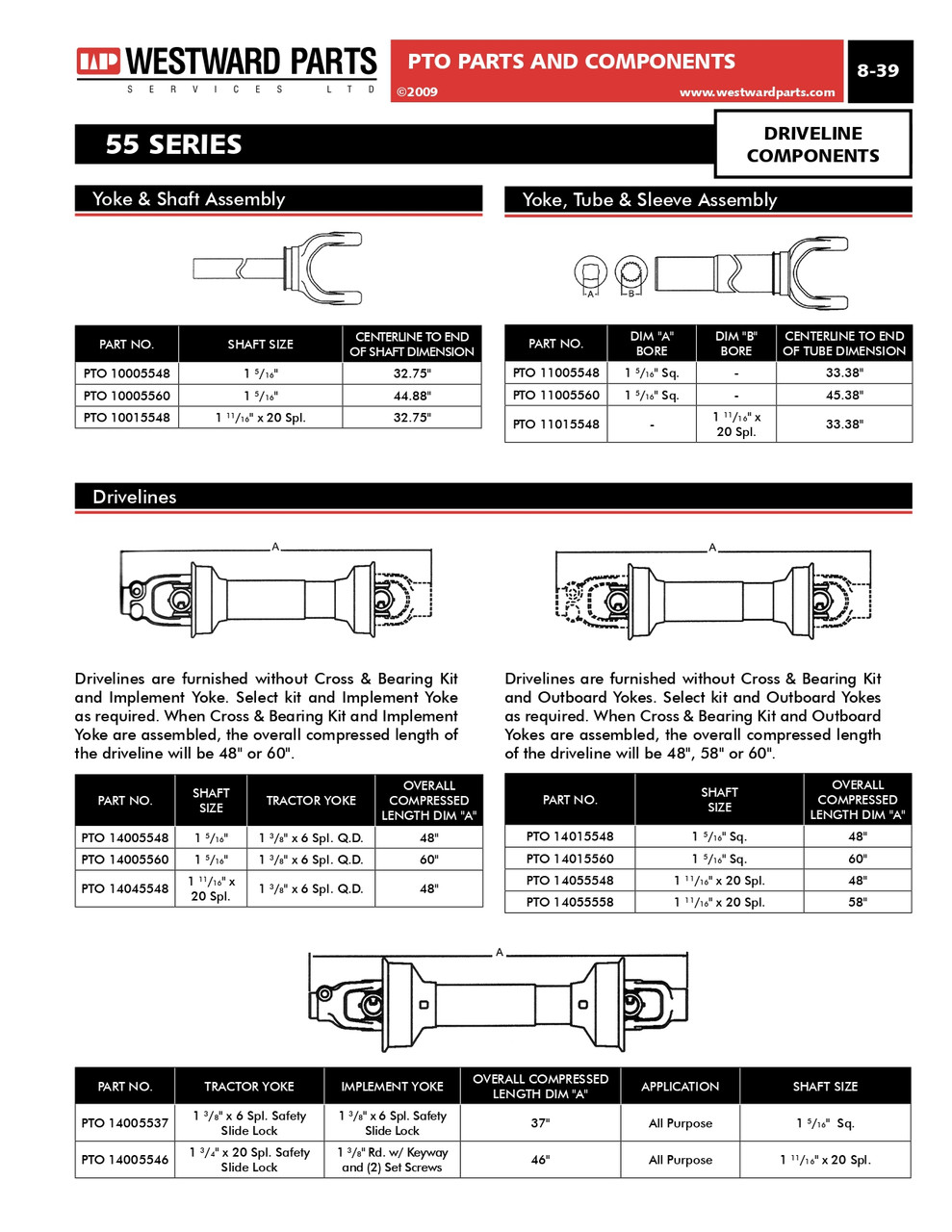

    adobepdficon.png Weasler Aftermarket PTO Catalog




    adobepdficon.png WWP PTO Catalog




    adobepdficon.png WWP Estate Equipment



    • Product Videos

    Custom Field

    Weasler part # 104-5521
    Westward part number PTO1045521
    Shear bolt diameter 3/8"-16 (x2)
    Shear bolt grade 5
    Bore size 1-3/8"-21 spline
    Connection 1 Safety Slide-Lok
    Torque 27800" lbs.
    Outer diameter 6"
    Bearing cup diameter 1.531"
    Bearing span 4.303"
    HP @ 540 RPM 137
    HP @ 1000 RPM 211
    Driveline series North American
    Type Ball shear clutch yoke
    Series 55
