    Timken

    $174.86
    (No reviews yet) Write a Review
    SKU:
    TIM BP10T115S
    UPC:
    UPC 883450432580
    Weight:
    4.50 LBS
    Shaft size:
    1-15/16"
    Plate material:
    Steel
    Seal lip material:
    Teflon
    Lip code:
    T
    Fits spherical roller bearing units:
    QAF/QAFL/QMF/QMFL
    Adding to cart… category.add_cart_announcement

    Product Description

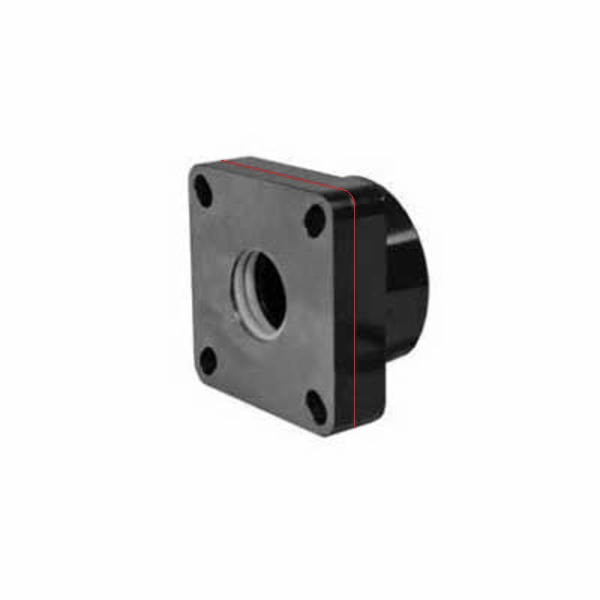

    Steel Bearing Block Backing Plates w/Dual Dupont® Teflon Seals

  • These backing plates are made from mild steel and are uniquely designed to fit select styles of Timken square flange bearing block units
  • The plate is placed on the shaft prior to mounting the flange block and mounts flush with the back of the housing and is secured by the same bolts used by the flange block
  • Please note the BP backing plates only fit QAF/QAFL/QMF/QMFL square flange bearing blocks that use either concentric or eccentric bearing shaft collars (Not available for tapered adapter or V-Lock® bearing units)
  • These plates use dual teflon seals to make 360° contact on the shaft to eliminate contamination migrating into the flange side of the housing and reaching the bearings primary seal
  • The backing plates T-Seals consist of a teflon sealing ring that is retained and floating in a metal case between two pieces of formed steel to accommodate shaft misalignment
  • Developed for higher-speed applications involving dirty conditions and/or moisture-affected areas, it is able to operate at higher temperatures and is impervious to most chemicals
  • Please make sure your input shaft is long enough to accomodate the backing plates added thickness in retrofitting applications


    • adobepdficon.png Timken Solid Steel SRB Units



    Timken stronger by design

    Product Videos

    Custom Field

    Shaft size 1-15/16"
    Plate material Steel
    Seal lip material Teflon
    Lip code T
    Fits spherical roller bearing units QAF/QAFL/QMF/QMFL
