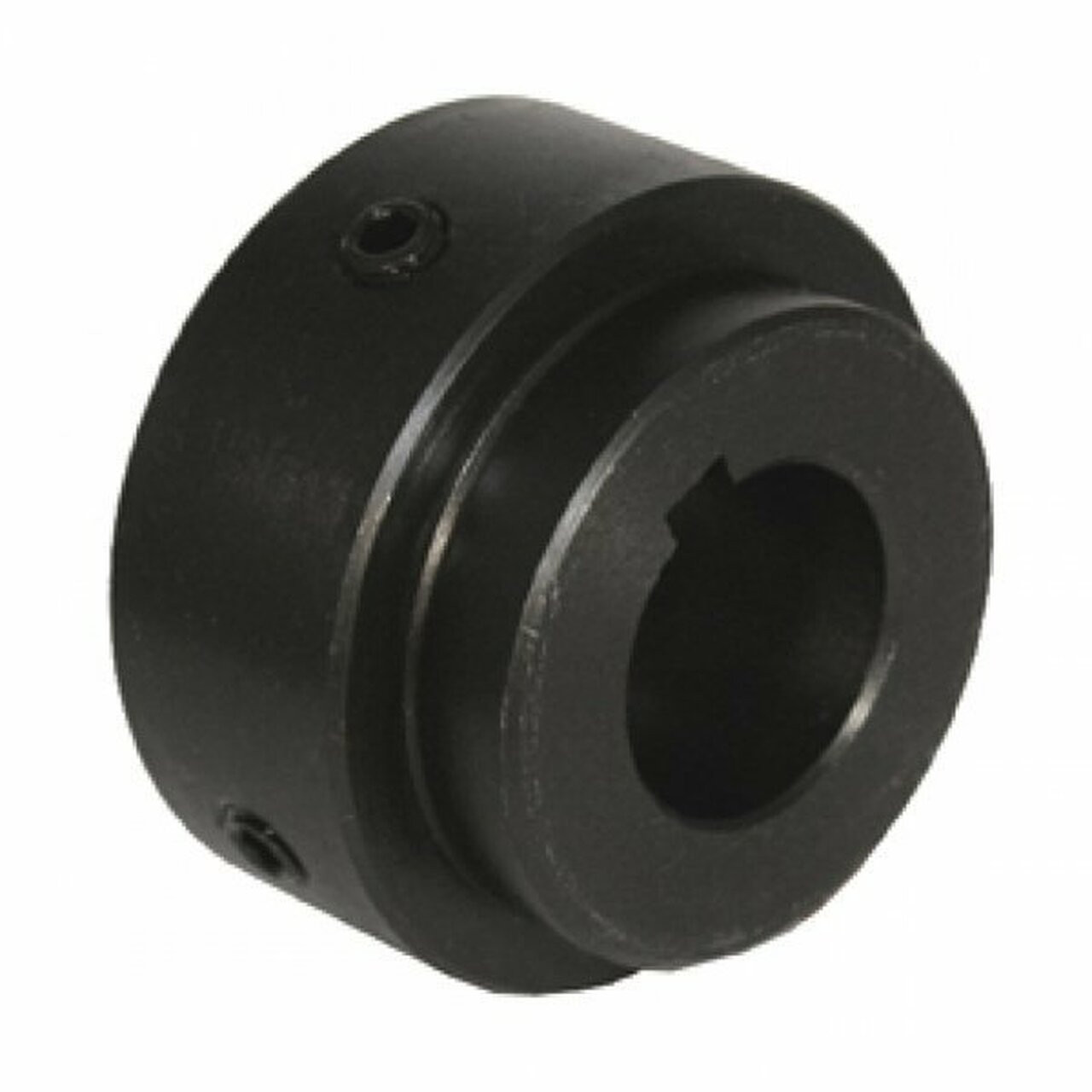

  • XX-Series Extended Steel Round Bore Weld-On Hub XX-1.000
  • XX-Series Extended Steel Round Bore Weld-On Hub XX-1.000

    • XX-Series Extended Steel Round Bore Weld-On Hub XX-1.000

    Power-Link

    $0.00
    (No reviews yet) Write a Review
    SKU:
    PLI XX-1.000
    Weight:
    3.00 LBS
    Overall width:
    3"
    Shaft size:
    1"
    Material:
    Carbon steel
    Finish:
    Black oxide

    Product Description

  • These uncommon weld-on hubs are wider than the standard width "X" series weld-on hubs.
  • The "XX" series is 3" wide versus the 2" width found on the standard "X" hubs.
  • Welding tip: When attaching any weld-on hub to a plate sprocket, place 3 small tack welds in a triangular pattern and let cool. Check for accuracy, then weld the remainder in the same pattern so the sprocket does not torque from the heat, causing wobble on the shaft after installation

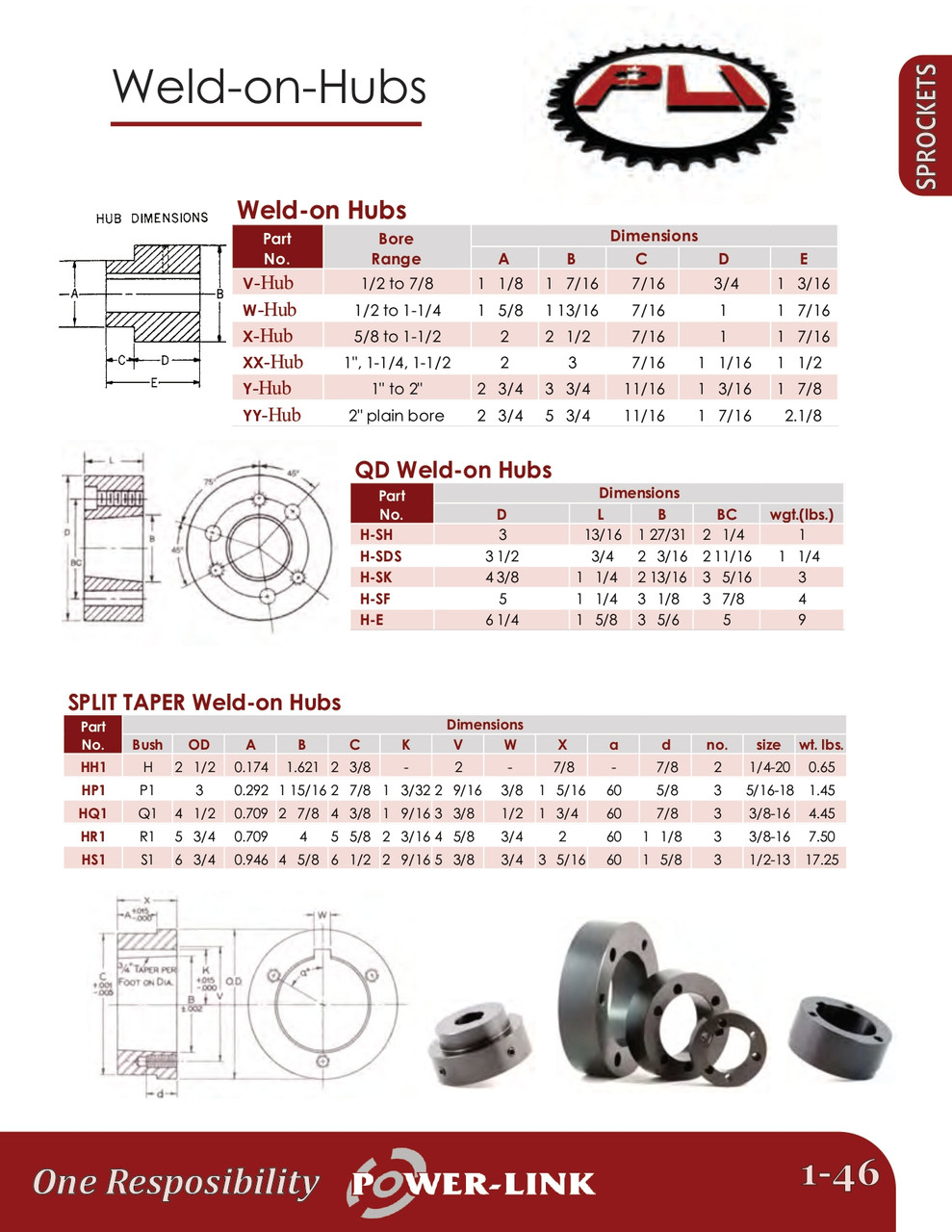

    adobepdficon.pngPower-Link Catalog



    • Product Videos

    Custom Field

    Overall width 3"
    Shaft size 1"
    Material Carbon steel
    Finish Black oxide
