  • XT® Spilt Taper Lock Bushing Weld-On Hub XTH60
  • XT® Spilt Taper Lock Bushing Weld-On Hub XTH60

    • XT® Spilt Taper Lock Bushing Weld-On Hub XTH60

    Power-Link

    $0.00
    (No reviews yet) Write a Review
    SKU:
    PLI XTH60
    Weight:
    36.40 LBS
    Hub series:
    XT®
    Bushing series:
    XTB60
    Material:
    Carbon steel
    Finish:
    Black oxide

    Product Description

  • XT hubs and bushings were specifically designed for conveyor and drum pulley applications.
  • XT hubs and bushings are available for all of the major types of conveyor pulleys and lagging drums in operation today.
  • This design uses the 2" per foot taper increment which provides all the holding power you'll ever require for a conveyor.
  • Bolts are equally spaced for uniform draw-up.
  • Welding tip: When attaching any weld-on hub to a plate sprocket or drum, place 3 small tack welds in a triangular pattern and let cool. Check for accuracy, then weld the remainder in the same pattern so the sprocket does not torque from the heat, causing wobble on the shaft after installation

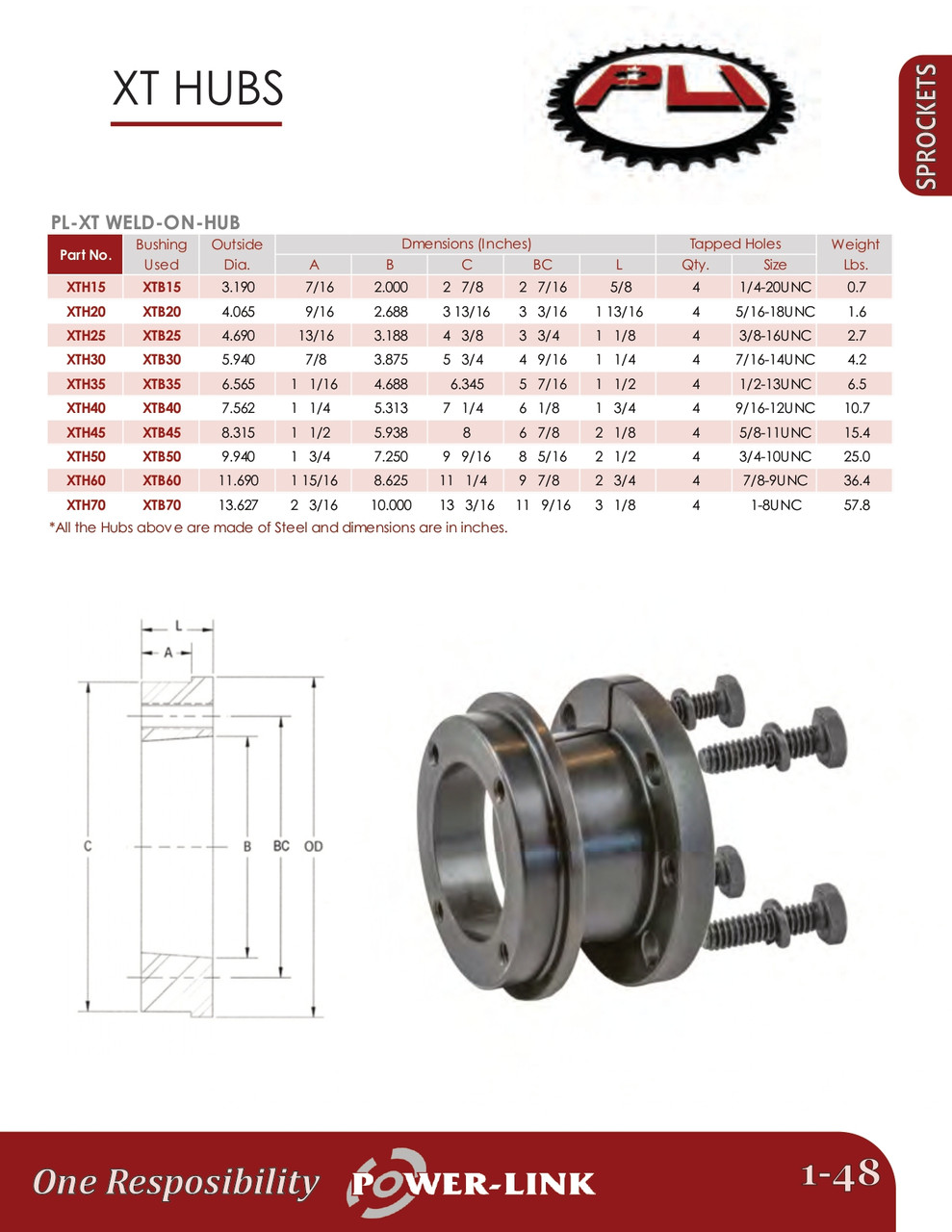

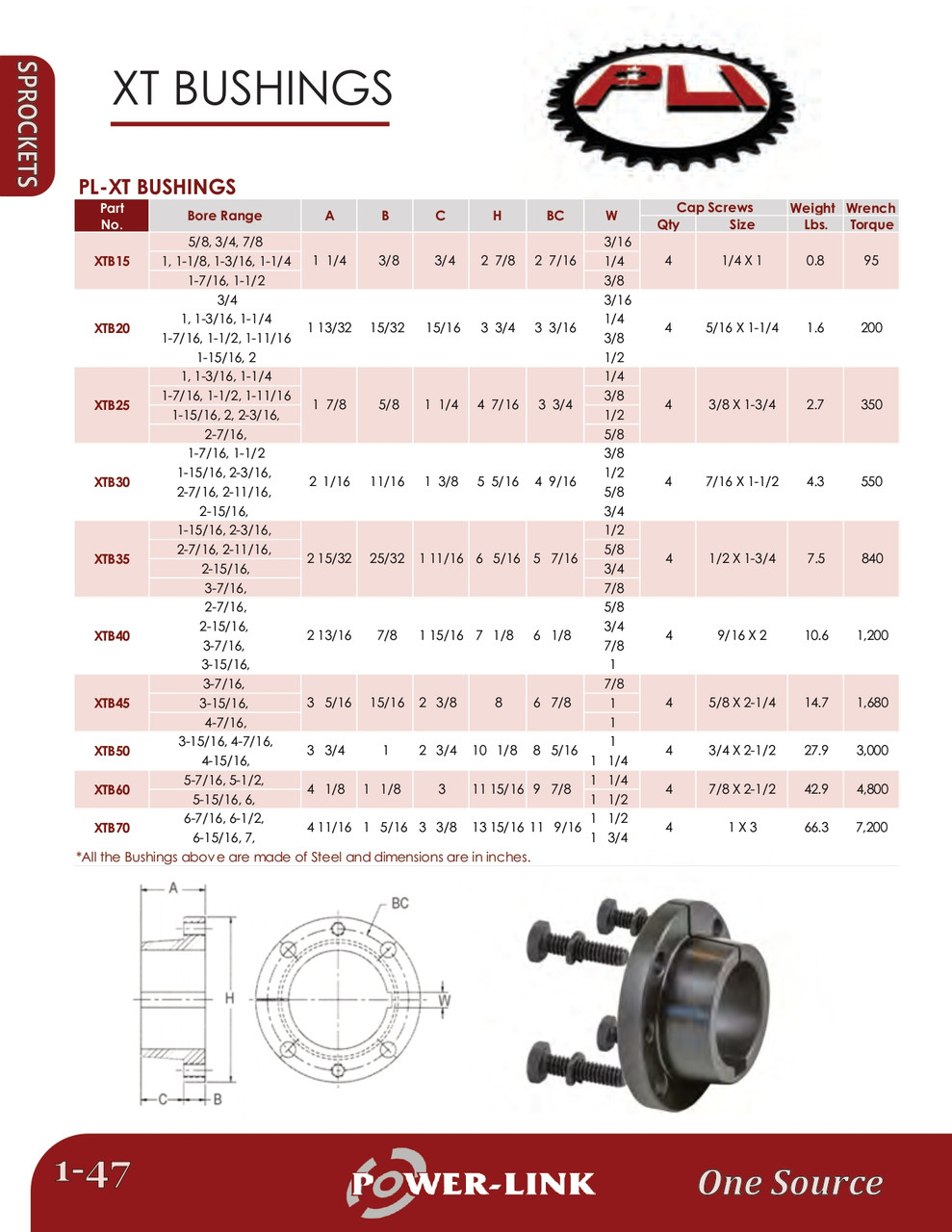

    adobepdficon.pngPower-Link Catalog



    • Product Videos

    Custom Field

    Hub series XT®
    Bushing series XTB60
    Material Carbon steel
    Finish Black oxide
