  • X-Series Steel Hexagon Bore Weld-On Hub X 1-1/8" HEX
  • X-Series Steel Hexagon Bore Weld-On Hub X 1-1/8" HEX
  • X-Series Steel Hexagon Bore Weld-On Hub X 1-1/8" HEX

    • X-Series Steel Hexagon Bore Weld-On Hub X 1-1/8" HEX

    Ringball

    $21.77
    (No reviews yet) Write a Review
    SKU:
    RBL X 1-1/8" HEX
    Weight:
    1.62 LBS
    Finish:
    Black oxide
    Inside diameter:
    1-1/8 (1.125)
    Hub series:
    Type X
    Adding to cart… category.add_cart_announcement

    Product Description

  • Most of the small diameter (Driver/pinion) sprockets are induction hardened to Rockwell C35-50
  • Larger diameter sprockets are flame or induction hardened to Rockwell C25-40.
  • The depth of hardness is strictly controlled, ensuring proper hardness of the tooth working area yet maintaining a strong tooth core.
  • Specially made sprockets can be manufactured to your unique specifications.
  • RBL sprockets are produced from quality steel and meet or exceed ANSI standards.
  • Welding tip: When attaching any weld-on hub to a plate sprocket, place 3 small tack welds in a triangular pattern and let cool. Check for accuracy, then weld the remainder in the same pattern so the sprocket does not torque from the heat, causing wobble on the shaft after installation

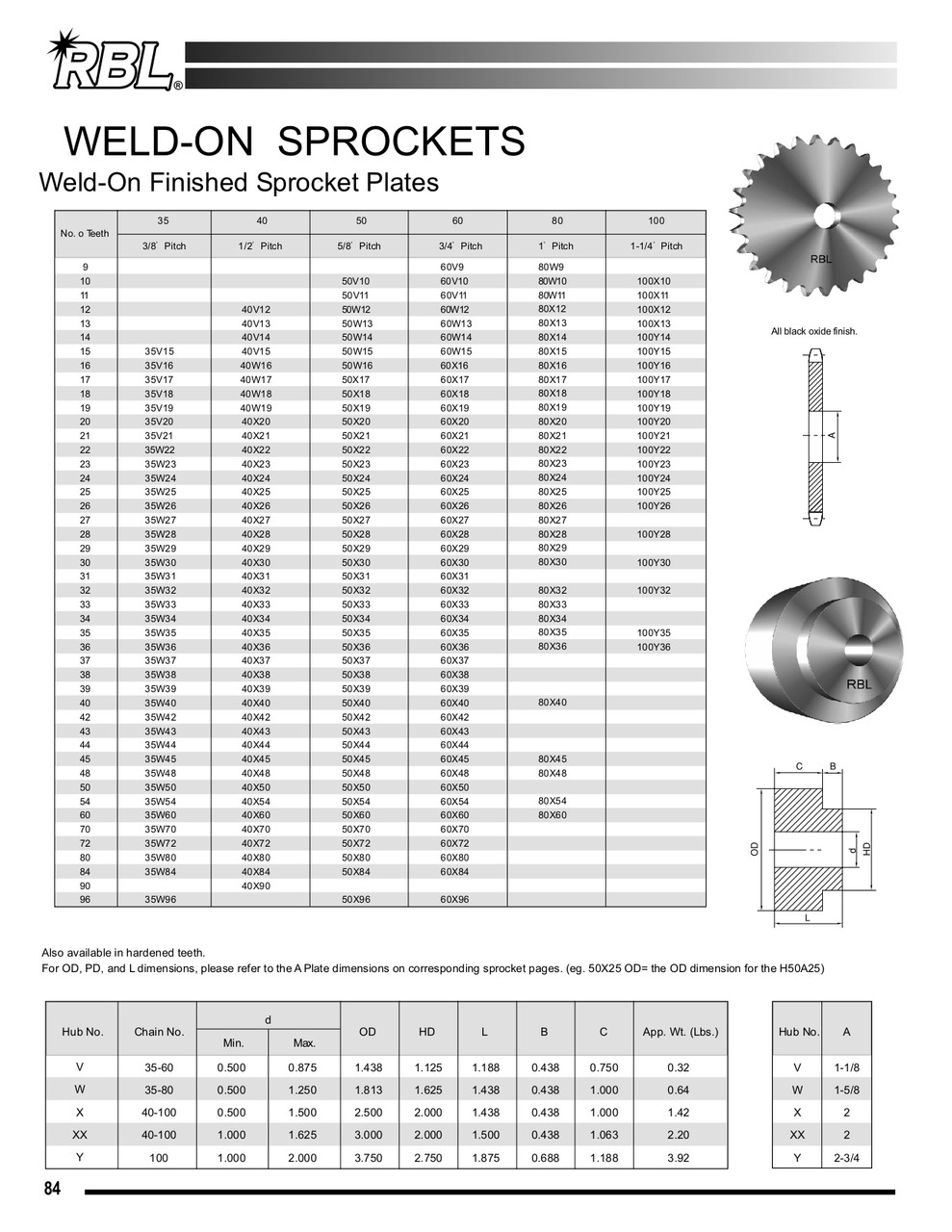

    adobepdficon.pngRingball Sprocket Catalog



    • Product Videos

    Custom Field

    Finish Black oxide
    Inside diameter 1-1/8 (1.125)
    Hub series Type X
