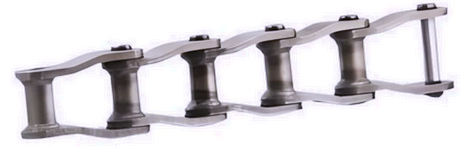

  • Welded Steel Conveyor Chain - 10' Box WR78XHD
  • Welded Steel Conveyor Chain - 10' Box WR78XHD

    • Welded Steel Conveyor Chain - 10' Box WR78XHD

    Power-Link

    $0.00
    (No reviews yet) Write a Review
    SKU:
    PLI WR78XHD
    Weight:
    63.00 LBS
    Ultimate strength:
    30,000lbs.
    Chain pitch:
    2.640"
    Links per 10':
    46
    Attachments available:
    Yes
    Heavier substitute:
    WH series
    Riveted/Cottered option:
    Yes

    Product Description

  • The main difference between WH vs WR chain (welded steel mill chain) lies in heat treatment.
  • WR (Welded Riveted) chains have only the pins and bushes heat-treated for basic strength, while WH (Welded Hardened/Heavy Duty) chains have all components (links, pins, bushes) heat-treated, giving them significantly higher tensile strength and wear resistance for tougher applications like heavy conveying, forestry, and sugar mills.
  • WH chains are superior for demanding use, while WR chains offer a more cost-effective solution for less severe tasks.
  • Available with riveted or cottered construction.

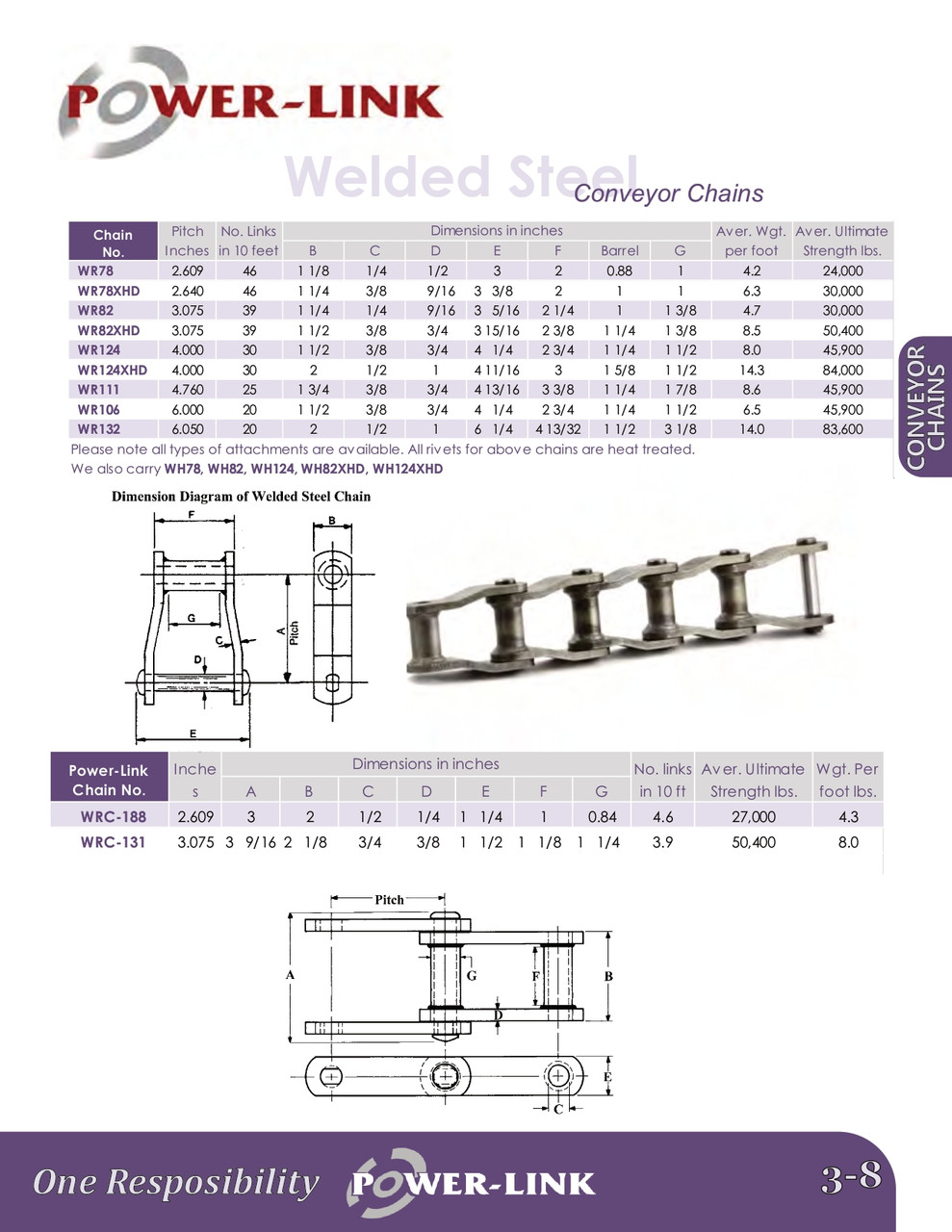

    adobepdficon.pngPower-Link Catalog



    • Product Videos

    Custom Field

    Ultimate strength 30,000lbs.
    Chain pitch 2.640"
    Links per 10' 46
    Attachments available Yes
    Heavier substitute WH series
    Riveted/Cottered option Yes
